The LS/LX/RX ranges are Facnor’s well established, genoa reefing furlers with aluminium foil section. Their extensive range has been tried and tested repeatedly by marine professionals and offshore sailors, with proven performance, durability and reliability. The RX range is an “upgraded” racing version of the LS range and features a removable drum, a rotating tack fitting, a stainless-steel sail feeder and low profile, elliptical foil sections. The rotating tack fitting automatically takes up the sail fullness when furling and helps to provide better sail shape, whilst the removable drum facilitates a swift change into a twin groove head foil, ready for racing.



Clic to go to the desired section

______________________________________________________________________________________________________________

Extrusion Assembly

Exploded View Image Ref. Part N° Description
Extrusion Assembly 2 9170039040 Complete RA C39 Swivel D8 Shackle
3 9171000306 RDD MM HAL. DEF. Wheel Forestay D6-7-8
3 9171000310 RDD MM HAL. DEF. Wheel Forestay D10
5 9196039080 SX39 Bearing/Forestay D6+7+8MM D9.5 Bearing
5 9196039100 SX39 Bearing/Forestay D10 MM D11 Bearing
5 9196039120 SX39 Bushing/Forestay D12 MM
6 9190039042 Complete 2M SX39 STD Section (For D12 MM Forestay)
06b 26132390106 1M Anodised SX39 External Foil
Special Order
06b 26132390206 2M Anodised SX39 External Foil
9 26134390036 SX39 Connector
11 9130124150 36x SX39+47/R34 Screws - 16M50


Drum and Sail Feeder Assembly

Exploded View Image Ref. Part N° Description
Drum and Sail Feeder Assembly 1 9112180040 Complete LX 180 Drum
10 9130128390 Complete SX39 STD Sail Feeder
11 9130124150 36x SX39+47/R34 Screws - 16M50
12 26136390166 SX39 Telescopic Section
13 9195039100 D10MM STD Pin + Bushings L165-180/R165-200
13 9195039160 D16MM STD Pin + Bushings L165-180/R165-200
46 28022539125 Nylon Ring For D12.5MM STD Pin L+R165-180
Special Order
46 28022539130 Nylon Ring For D13MM STD Pin L+R165-180
Special Order
46 28022539145 Nylon Ring For D14.5MM STD Pin L+R165-180
Special Order
46 28022539165 Nylon Ring For D16.5MM STD Pin L+R165-180
Special Order


Link Plates & Screws

Exploded View Image Ref. Part N° Description
Link Plates & Screws 14 9182391512 Lpk 150mm D12 L165-180-R165-200
14 9182391513 Lpk 150mm D12.7 L165-180-R165-200
14 9182391516 Lpk 150mm D16 L165-180-R165-200
14 9182392513 Lpk 250mm D12.7 L165-180-R165-200
15 20002080160 8x16(5/16''X5/8") Hh Screw
16 35022000039 Flexible Plastic Strips L165-180/R165-200
17 9183315019 Link Plate 150mm D20/165-180
17 9183325019 Link Plate 250mm D20/165-180
18 9184391510 Pin Lpk D10+Bushings L165/180+R165.200
18 9184391512 Pin Lpk D12+Bushings L165/180+R165/200
18 9184391516 Pin Lpk D16+Bushings L165/180+R165/200
45 28022439105 Bushing D10mm Pin Lpk L165-180
Special Order
45 28022439130 Bushing D12.7mm Pin Lpk L165-180
Special Order
45 28022439145 Bushing D14mm Pin Lpk L165-180
Special Order
45 28022439165 Bushing D16mm Pin Lpk L165-180
Special Order


Fairleads

Exploded View Image Ref. Part N° Description
Fairleads 26 24000102200 Single Fairlead+ Product Card Ref Sl25
Special Order
27 24000102300 Articulated Stanchion Fairlead Ref Asl25/28

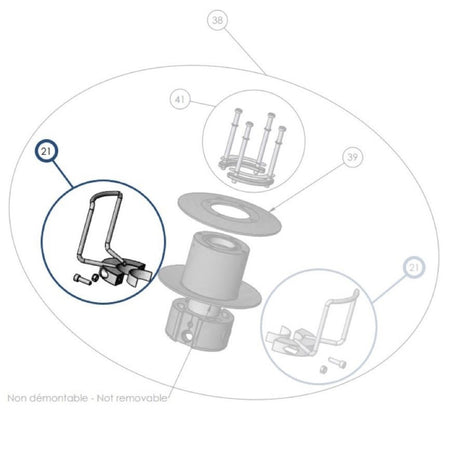

Drum Components

Exploded View Image Ref. Part N° Description
Drum Components 21 9160139055 Half Guide+Fix+Screws/L180-R220
31 9276900035 Screw+Washer Drum Nose165=>260


Swivel Assembly

Exploded View Image Ref. Part N° Description
Swivel Assembly 48 9163039000 Swivel Internal Bushing - Sx39
Special Order
49 9163139000 Chd26-39 Swivel S-S Ring
Special Order
