DESCRIPTION
DESCRIPTION

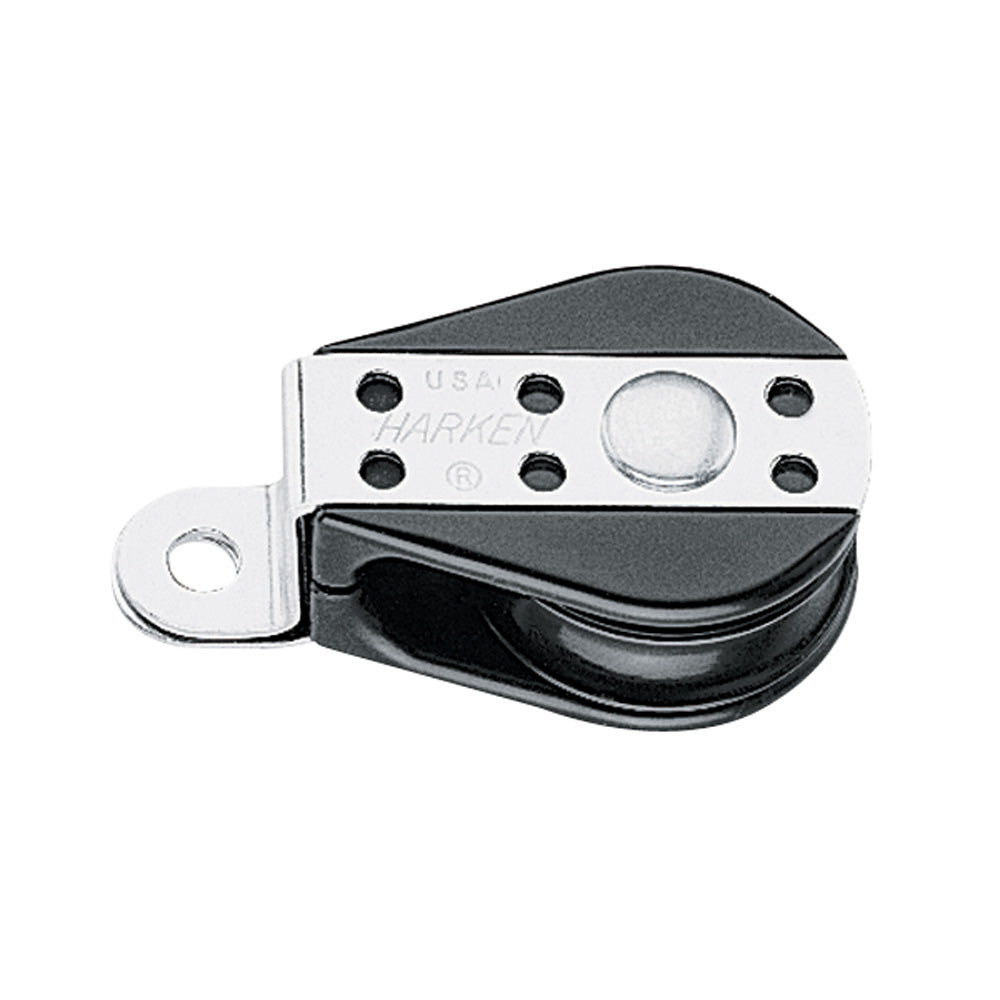

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
Our Part # HAR113 | Mfr. Part # 113
FEATURES
FEATURES
- Pivoting cheek block design
- 29mm sheave for small lines
- Low-friction composite bearing
- Robust UV-stabilized cheeks
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 1 1/8 in | 29.0 mm |
| Length | 1 1/8 in | 29.0 mm |
| Weight | 1.0 oz | 28.0 g |
| Maximum Line | 5/16 in | 8.0 mm |
| Fasteners | 5 RH (# 10 RH in) | |
| Maximum working load | 300.0 lb | 136.0 kg |
| Breaking Load | 2000.0 lb | 907.0 kg |
