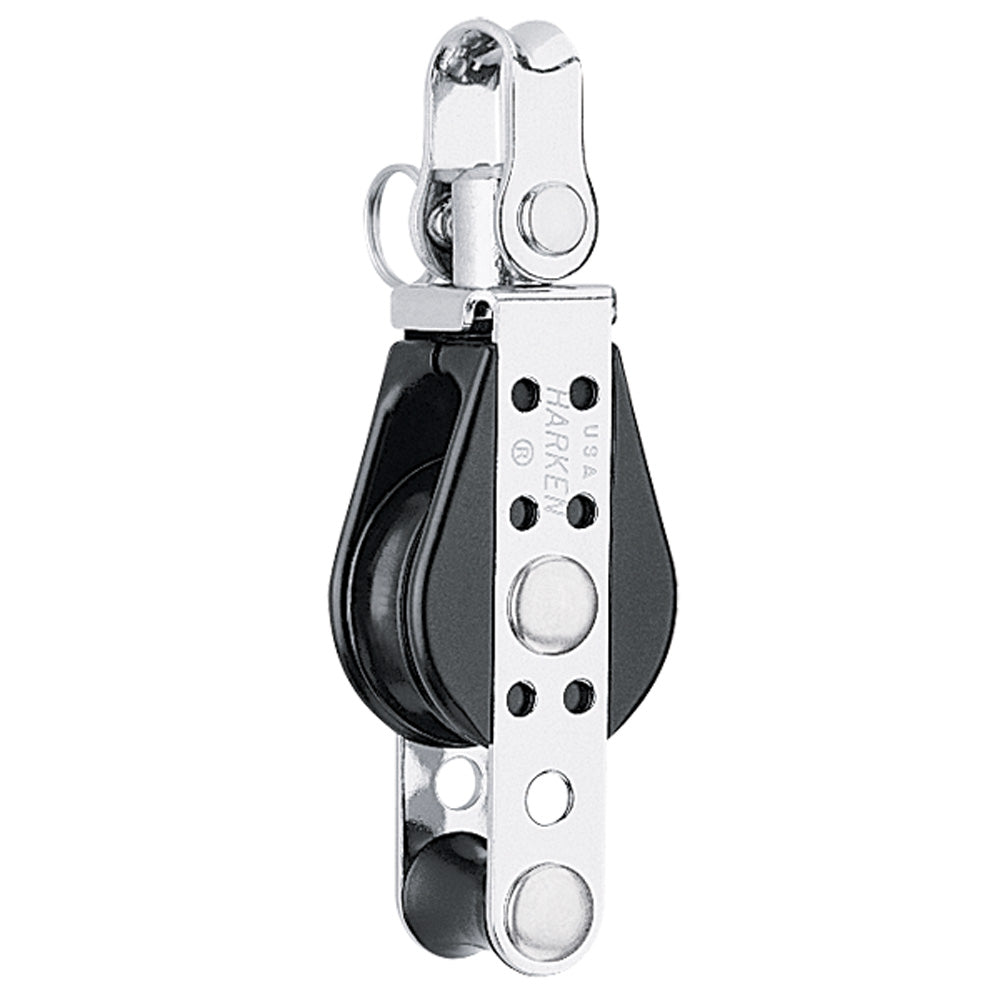

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
Our Part # HAR167 | Mfr. Part # 167
FEATURES
FEATURES
- 29mm sheave diameter.
- Integrated becket for cascade systems.
- Swivel head for flexible use.
- Durable marine-grade materials.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 1 1/8 in | 29.0 mm |
| Length | 3 1/2 in | 89.0 mm |
| Weight | 1.75 oz | 50.0 g |
| Maximum line | 5/16 in | 8.0 mm |
| Maximum working load | 300.0 lb | 136.0 kg |
| Breaking load | 2000.0 lb | 907.0 kg |
| Shackle pin | 3/16 in | 5.0 mm |
