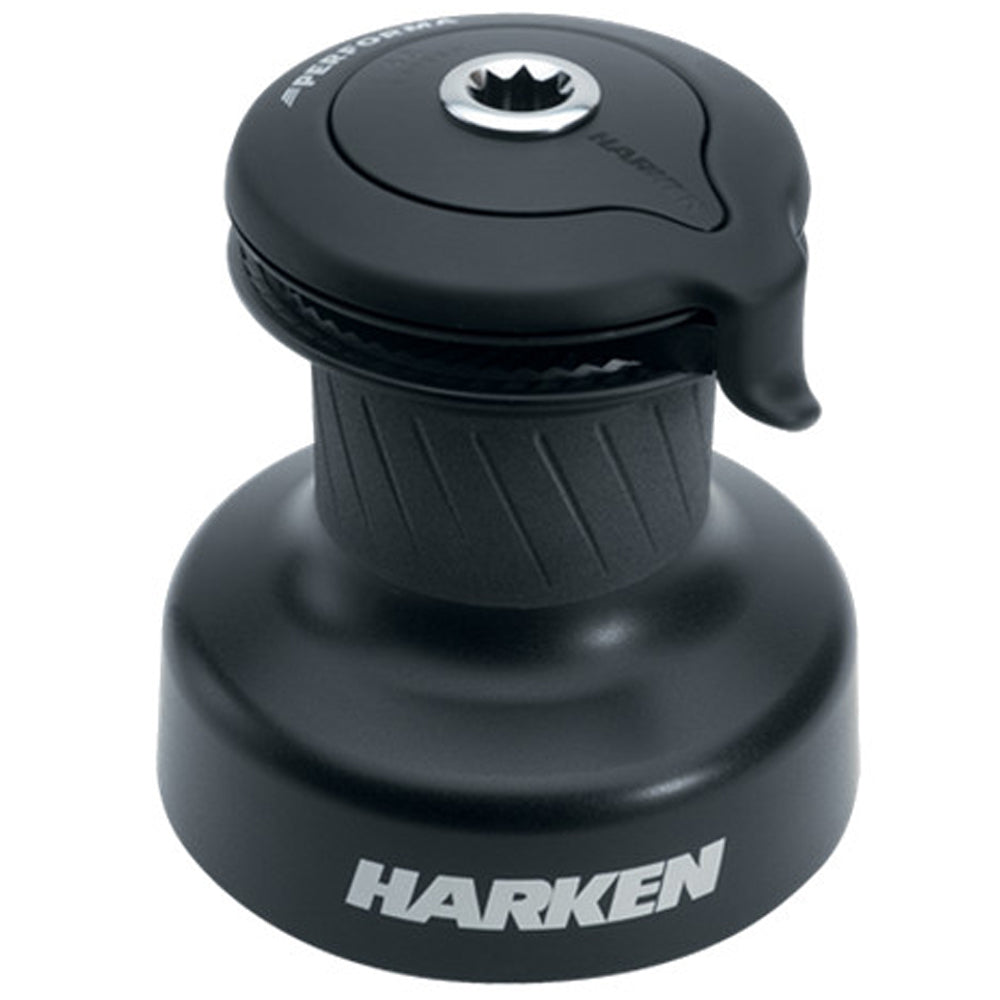

Harken Self Tailing Winch Performa Size 50 - Aluminum Black / Three Speed (50.3STP)

SKU: HAR503STP  |  Manuf. Code: 50.3STP
List Price:  7355.00 USD
$4,634.24 USD
You Save $2722 This Week!

Description

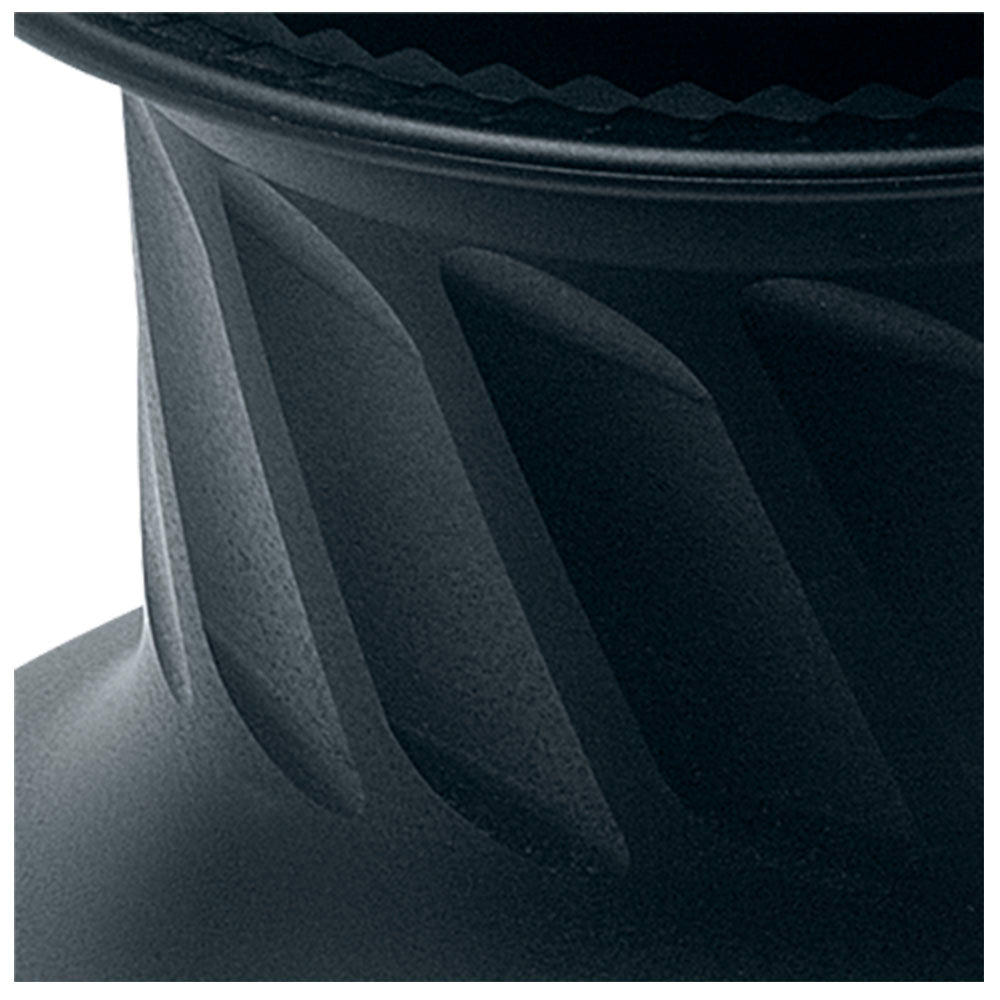

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Our Part # HAR503STP | Mfr. Part # 50.3STP

Technical Information

DescriptionImperialMetric
ConfigurationSelf-tailing
Speed3
Drum Ø4 5/16 in110 mm
Base Ø7 11/16 in195 mm
Height8 5/16 in212 mm
Weight15.0 lb6.8 kg
Line Entry Height3 13/16 in97 mm
Minimum Line Ø5/16 in8 mm
Maximum Line Ø9/16 in14 mm
Fastener Circle5 7/8 in15 cm
Fasteners5/16 SH inM8 SH mm
Number of Fasteners5
Gear Ratio - 11
Gear Ratio - 22.4
Gear Ratio - 310.9
Power Ratio - 14.6
Power Ratio - 211.1
Power Ratio - 350.4
