Harken Electric Self Tailing Radial Winch Spares - Size 52.2 Speed
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation with easy upgrades to power. Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Clic to go to the desired section
- Drum Assembly (for Aluminum, Chrome-Bronze and Chrome-White Winches)
- Drum Assembly (for All Bronze and All Chrome-Bronze Winches)
- Stripper arm support (for Aluminum, Chrome-Bronze and Chrome-White Winches)
- Stripper arm support (for All Bronze and All Chrome-Bronze Winches)
- Base Assembly (for Aluminum, Chrome-Bronze and Chrome-White Winches)
- Base Assembly (for All Bronze and All Chrome-Bronze Winches)
- Horizontal Motor Assembly
- Vertical Motor Assembly
______________________________________________________________________________________________________________
Drum Assembly (for Aluminum, Chrome-Bronze and Chrome-White Winches)
| Exploded View | Img Ref | STA | STC | STCW | Description | Qty |
|---|---|---|---|---|---|---|
|
17 | A94134800 | A94134800 | A94134800 | Assy Housing Winch 50 Housing Winch 50 |
1 |
| S414900080 | S414900080 | S414900080 | Bushing Ø12xØ14x8 Special Order |
1 | ||
| S413330085 | S413330085 | S413330085 | Bushing Ø12xØ14x11 | 1 | ||
| S4133200B3 | S4133200B3 | S4133200B3 | Bushing for support Special Order |
1 | ||
| 18 | M0606303 | M0606303 | M0606303 | Screw M8x25 UNI 5931 | 5 | |
| 19 | A74135100 | A74135100 | A74135100 | Bearing Ø85xØ97x26 | 2 | |
| 20 | S413390080 | S413390080 | S413390080 | Spacer | 1 | |
| 22 | Winch Serial Number Sticker Special Order |
1 | ||||
| 24 | S413400053 | S413400053 | S413400053 | Drum W50 | 1 | |
| 25 | S281690097 | S281690097 | S281690097 | Red line | 1 |
Drum Assembly (for All Bronze and All Chrome-Bronze Winches)
| Exploded View | Img Ref | STBBB | STCCC | Description | Qty |
|---|---|---|---|---|---|
|
16 | A94134800 | A94134800 | Assy Housing Winch 50 Housing Winch 50 |
1 |
| S414900080 | S414900080 | Bushing Ø12xØ14x8 Special Order |
1 | ||
| S413330085 | S413330085 | Bushing Ø12xØ14x11 | 1 | ||
| S4133200B3 | S4133200B3 | Bushing for support Special Order |
1 | ||
| 17 | M0606303 | M0606303 | Screw M8x25 UNI 5931 | 5 | |
| 18 | A74135100 | A74135100 | Bearing Ø85xØ97x26 | 2 | |
| 19 | S413390080 | S413390080 | Spacer | 1 | |
| 21 | Winch Serial Number Sticker Special Order |
1 | |||
| 23 | S688140043 | S688140043 | Drum W50B Special Order |
1 | |
| 24 | S281690097 | S281690097 | Red line | 1 | |
| 31 | S415070002 | S415070002 | Disconnect Rod W50 | 1 |
Stripper arm support (for Aluminum, Chrome-Bronze and Chrome-White Winches)
| Exploded View | Img Ref | STA | STC | STCW | Description | Qty |
|---|---|---|---|---|---|---|
|
23 | S4129400A0 | S4129400A0 | S4129400A0 | Stripper arm support | 1 |
| 26 | A94134300 | A94134300 | A94134300 | Assy Jaws Winch 50 Lower Jaw W50 Upper Jaw W50 |
1 | |
| S414280080 | S414280080 | S414280080 | Peeler W46 - 50 | 1 | ||
| S385970001 | S385970001 | S385970001 | SPRING Special Order |
4 | ||
| 27 | M0601803 | M0601803 | M0601803 | Screw UNI EN ISO 1207 - M6x35 - A4 | 4 | |
| 28 | S413440019 | S413440019 | S413440019 | Stripper Arm W50 | 1 | |
| 29 | M6007103 | M6007103 | M6007103 | Screw M6x50 UNI6107 | 3 | |
| 30 | S4134500A5 | S4134500A5 | S4134500A5 | Cover 2 speed W50 | 1 | |
| 31 | A94149300 | A94149300 | A94149300 | Assy Socket W35-80 EL/HY Socket Handle W20/80 |
1 | |
| S414940085 | S414940085 | S414940085 | Washer Ø25xØ15x4 | 1 | ||
| S414930003 | S414930003 | S414930003 | Nut Screw for Disconnnect Rod | 1 | ||
| M0679797 | M0679797 | M0679797 | O ring RC 2025 series | 1 |
Stripper arm support (for All Bronze and All Chrome-Bronze Winches)
| Exploded View | Img Ref | STBBB | STCCC | Description | Qty |
|---|---|---|---|---|---|
|
22 | S4129400A0 | S4129400A0 | Stripper arm support | 1 |
| 25 | A96933500 | A96933500 | Assy Jaws Winch 50 Lower Jaw W50 Upper Jaw W50 Special Order |
1 | |
| S414280080 | S414280080 | Peeler W46 - 50 | 1 | ||
| S385970001 | S385970001 | SPRING Special Order |
4 | ||
| 26 | M0601803 | M0601803 | Screw UNI EN ISO 1207 - M6x35 - A4 | 1 | |
| 27 | S7123200F0 | S7123200F0 | Stripper arm W50 BBB Special Order |
3 | |
| 28 | M6007103 | M6007103 | Screw M6x50 UNI6107 | 1 | |
| 29 | A76933600 | A76933600 | Cover W50 ST BBB Special Order |
1 | |
| 30 | A94149300 | A94149300 | Assy Socket W35-80 EL/HY Socket Handle W20/80 |
1 | |
| S414940085 | S414940085 | Washer Ø25xØ15x4 | 1 | ||
| S414930003 | S414930003 | Nut Screw for Disconnnect Rod | 1 | ||
| M0679797 | M0679797 | O ring RC 2025 series | 1 |
Base Assembly (for Aluminum, Chrome-Bronze and Chrome-White Winches)
| Exploded View | Img Ref | STA | STC | STCW | Description | Qty |
|---|---|---|---|---|---|---|
|
1 | A94189800 | A94189800 | A94189800 | Assy Base Winch 50 EL/HY Base W50 Special Order |
1 |
| S413350080 | S413350080 | S413350080 | Roller Ø6x19 Special Order |
1 | ||
| S4130900A7 | S4130900A7 | S4130900A7 | Bushing Ø22xØ25x8.5 | 1 | ||
| S413960085 | S413960085 | S413960085 | Bushing Ø9xØ11x12 | 1 | ||
| S413330085 | S413330085 | S413330085 | Bushing Ø12xØ14x11 | 1 | ||
| 2 | A94134900 | A94134900 | A94134900 | Assy Skirt Winch 50 Skirt W50 Winch Product Sticker** |
1 | |
| 3 | S413020004 | S413020004 | S413020004 | Gear Z12 | 1 | |
| 4 | S416050004 | S416050004 | S416050004 | Pin | 1 | |
| 5 | S278170002 | S278170002 | S278170002 | Washer Ø12.5xØ48x1.5 | 1 | |
| 6 | S412800041 | S412800041 | S412800041 | Gear Z30 | 1 | |
| 7 | S413030004 | S413030004 | S413030004 | Pawls Carrier Ø8xN2 | 1 | |
| 8 | S000080003 | S000080003 | S000080003 | Pawl Ø8* | 6 | |
| 9 | S000380001 | S000380001 | S000380001 | Pawl Spring Ø8* | 6 | |
| 10 | S415590041 | S415590041 | S415590041 | Gear Z20 | 1 | |
| 11 | S415610004 | S415610004 | S415610004 | Pinion Z11 | 1 | |
| 12 | A72821800 | A72821800 | A72821800 | Roller Bearing Ø14xØ20x18 | 2 | |
| 13 | S281340080 | S281340080 | S281340080 | Space roller bearings | 2 | |
| 14 | S413120002 | S413120002 | S413120002 | Washer Ø22.5xØ45x1 | 1 | |
| 15 | S413070004 | S413070004 | S413070004 | Pin Ø9xØ12x32.5 | 1 | |
| 16 | A94156000 | A94156000 | A94156000 | Assy Gear Z11 Gear Z11 |
1 | |
| S414900080 | S414900080 | S414900080 | Bushing Ø12xØ14x8 Special Order |
2 | ||
| 17 | A94134800 | A94134800 | A94134800 | Assy Housing Winch 50 Housing Winch 50 |
1 | |
| S414900080 | S414900080 | S414900080 | Bushing Ø12xØ14x8 Special Order |
1 | ||
| S413330085 | S413330085 | S413330085 | Bushing Ø12xØ14x11 | 1 | ||
| S4133200B3 | S4133200B3 | S4133200B3 | Bushing for support Special Order |
1 | ||
| 21 | A96753100 | A96753100 | A96753100 | Assy Central Shaft Winch 50 Central Shaft Pred. W50 |
1 | |
| S413880002 | S413880002 | S413880002 | Washer Ø17.2xØ321.5 | 1 | ||
| 32 | S415070002 | S415070002 | S415070002 | Disconnect Rod W50 | 1 |
Base Assembly (for All Bronze and All Chrome-Bronze Winches)
| Exploded View | Img Ref | STBBB | STCCC | Description | Qty |
|---|---|---|---|---|---|
|
1 | A96634000 | A96634000 | Assy base Winch 50 EL/HY Base W50 Special Order |
1 |
| S413350080 | S413350080 | Roller Ø6x19 Special Order |
1 | ||
| S4130900A7 | S4130900A7 | Bushing Ø22xØ25x8.5 | 1 | ||
| S413960085 | S413960085 | Bushing Ø9xØ11x12 | 1 | ||
| S413330085 | S413330085 | Bushing Ø12xØ14x11 | 1 | ||
| 2 | S413020004 | S413020004 | Gear Z12 | 1 | |
| 3 | S416050004 | S416050004 | Pin | 1 | |
| 4 | S278170002 | S278170002 | Washer Ø12xØ48x1.5 | 1 | |
| 5 | S412800041 | S412800041 | Gear Z30 | 1 | |
| 6 | S413030004 | S413030004 | Pawls Carrier Ø8xN2 | 1 | |
| 7 | S000080003 | S000080003 | Pawl Ø8* | 6 | |
| 8 | S000380001 | S000380001 | Pawl Spring Ø8* | 6 | |
| 9 | S415590041 | S415590041 | Gear Z20 | 1 | |
| 10 | S415610004 | S415610004 | Pinion Z11 | 1 | |
| 11 | A72821800 | A72821800 | Roller Bearing Ø14xØ20x18 | 2 | |
| 12 | S281340080 | S281340080 | Space roller bearings | 2 | |
| 13 | S413120002 | S413120002 | Washer Ø22.5xØ45x1 | 1 | |
| 14 | S413070004 | S413070004 | Pin Ø9xØ12x32.5 | 1 | |
| 15 | A94156000 | A94156000 | Assy Gear Z11 Gear Z11 |
1 | |
| S414900080 | S414900080 | Bushing Ø12xØ14x8 Special Order |
2 | ||
| 20 | A96753100 | A96753100 | Assy Central Shaft Winch 50 Central Shaft Pred. W50 |
1 | |
| S413880002 | S413880002 | Washer Ø17.2xØ321.5 | 1 | ||
| 32 | S415070002 | S415070002 | Disconnect Rod W50 | 1 |
Horizontal Motor Assembly
| Exploded View | Img Ref | Part Code | Description | Qty |
|---|---|---|---|---|
|
1 | A93127900 | KIT Gear Reduction 1/24 Special Order |
1 |
| A94194900 | KIT LM Gear Reduction 1/24 | 1 | ||
| 2 | A94149200 | KIT Assy Electric Motor Flange | 1 | |
| A94149200L | KIT Assy Electric Motor Flange Left Electric Motor Flange Special Order |
1 | ||
| M0606803 | Screw M6x14 uni 5931 Special Order |
4 | ||
| 3 | A96010700 | KIT EL Motor 12V 1.5kW | 1 | |
| A96010600 | KIT EL Motor 24V 2kW Electric Motor Polarity motor sticker Screw stud M6x26 Washer Ø6 Nut M6 UNI5588 |
1 | ||
| M6014206 | Key DIN 6885 5x5x15 Special Order |
1 | ||
| 4 | M0612097 | Sealer Ø30xØ47x7 Special Order |
1 | |
| 5 | M6007297 | Lip seal Ø17xØ30x7 | 1 | |
| 6 | S415360003 | Screw M6x16 UNI EN ISO 5931:2003 precote coating Special Order |
8 | |
| 7 | S496650053 | Horizontal Motorgear Flange Special Order |
1 | |
| 8 | M6015697 | O-Ring Seal ORM 0055-10 (Ø5.5XØ1) | 8 | |
| 9 | A96589000 | Performa KIT EL HO Motor Clutch Shaft Motorgear HO Performa HO Gear Motor Shaft Hub GearMotor |
1 | |
| M0601402 | Dowel UNI EN ISO 8752:2000- Ø4x24 Special Order |
1 | ||
| M6020097 | O-ring 19.1x1.6 Special Order |
1 | ||
| S418620001 | Disconnect spring Special Order |
1 | ||
| S414050080 | Flange GearMotor Shaft HO Special Order |
1 | ||
| M6010303 | Key 8x5x40 UNI 7511 Special Order |
1 |
Vertical Motor Assembly
| Exploded View | Img Ref | Part Code | Description | Qty |
|---|---|---|---|---|
|
1 | A96010500 | KIT EL Motor 12V 1.5kW VT | 1 |
| A96010400 | KIT EL Motor 24V 2kW VT Electric Motor Polarity motor sticker Screw M8x20 UNI593 |
1 | ||
| M6014206 | Key DIN 6885 5x5x15 Special Order |
1 | ||
| 2 | A96562900 | Vertical reduction gear boz 1/21.3 Special Order |
1 | |
| 3 | A94150500 | KIT EL VT Motor Flange Vertical Motorgear Flange Special Order |
1 | |
| M0602903 | NUT M8 - UNI 5588 - A4 Special Order |
4 | ||
| M0603103 | WASHER 8.4 U1751 DIN127 A4 Special Order |
4 | ||
| M6007297 | Lip seal Ø17xØ30x7 | 1 | ||
| M6015697 | O-Ring Seal ORM 0055-10 (Ø5.5xØ1) | 6 | ||
| S415360003 | Screw M6x16 UNI EN ISO 593:2003 precote coating Special Order |
6 | ||
| M0606303 | Screw M8x25 UNI 5931 | 4 | ||
| 4 | A94193700 | KIT EL VT Motor Clutch Connecting Coupling Ø31.5 Toohthed coupling |
1 | |
| M0620401 | Spring pin 5x40 DIN1481 Special Order |
1 | ||
| S326490001 | Spring pin 5x40 DIN1481 Special Order |
1 | ||
| S415040080 | Bushing Special Order |
1 | ||
| S329360082 | Washer Special Order |
1 | ||
| M0666603 | Screw M6x16 UNI 5933 Special Order |
1 |
MAURIPRO, your source for all Harken's Winches Spares!
-
Harken

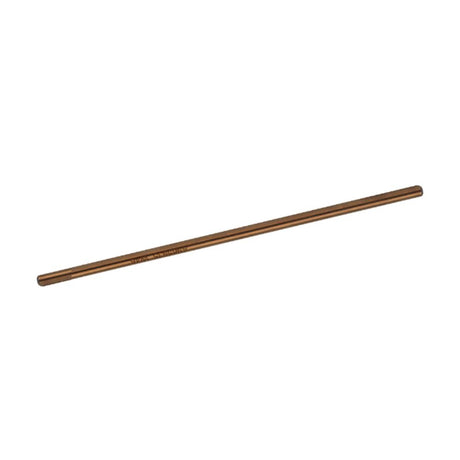

Harken Winch Spare for Electric Size 50 - Disconnect Rod (221 mm) (S415070002)
HARS415070002
$11.99 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial & Performa Size 15 to 80 - Pawl Spring (B038) (S000380001)
HARS000380001
$0.45 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial & Performa Size 50 - Stripper Arm Cover (S4134500A5)
HARS4134500A5
$7.98 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 15 to 70 - Pawl 8 Dia 316SS (B008) (S000080003)
HARS000080003
$6.86 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 20 to 50 - Screw M6x50 UNI 6107 (M6007103)
HARM6007103
$1.93 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 - Bushing (D22 x D25 x 8) (S4130900A7)
HARS4130900A7
$3.67 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 40 - Bushing (9 x 11 x 12) (S413960085)
HARS413960085
$2.21 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 46 - O-Ring w/Plastic Insert (M0679797)
HARM0679797
$7.98 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 50 - Center Shaft Washer (S413880002)
HARS413880002
$2.76 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 50 - Gear Z12 (S413020004)
HARS413020004
$65.95 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 50 - Pin (S413070004)
HARS413070004
$18.69 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 70 - Lip Seal (17 x 30 x 7) (M6007297)
HARM6007297
$4.64 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 70 - Pawls Carrier (8xn2) (S413030004)
HARS413030004
$115.95 USDList Price: $117.80 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 70 - Screw UNI EN ISO 1207:1996 M6x35 A4 (M0601803)
HARM0601803
$1.85 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 35 to 70 - Washer (22.5 x 45 x 1) (S413120002)
HARS413120002
$3.39 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 40 to 46 - Nut Screw Drilled (S414930003)
HARS414930003
$34.39 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 40 to 46 - Socket Washer (S414940085)
HARS414940085
$2.21 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 40 to 50 - Ring Red Line (B28169) (S281690097)
HARS281690097
$6.86 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 46 - Bushing (12 x 14 x 11) (S413330085)
HARS413330085
$1.87 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 46 - Spacer (S413390080)
HARS413390080
$5.52 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 46 to 50 - Peeler (S414280080)
HARS414280080
$5.36 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 46 to 70 - Screw (M8x25 UNI 5931) (M0606303)
HARM0606303
$1.93 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 46 to 70 - Washer (12.5 x 48 x 1.5) (S278170002)
HARS278170002
$5.63 USDUnit price /Unavailable -
Harken
Harken Winch Spare for Radial Size 50 - Aluminium Drum (S413400053)
HARS413400053
$530.00 USDList Price: $570.30 USDUnit price /Unavailable
