Lewmar Pilot Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic / Silver Frame (30074000)
SKU:
LEW30074000
|
Manuf. Code:
30074000
39% off
Unit price
/
Unavailable
Lewmar Pilot Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic / Silver Frame (30074000) is backordered and will ship as soon as it is back in stock.
You Save $600 This Week!
Knowledgeable STAFF
Lewmar Pilot Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19...
Unit price
/
Unavailable
Description
Description
The Lewmar Pilot Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft, and the styling complements the Low Profile and Medium Profile Hatch Ranges.
Our Part # LEW30074000 | Mfr. Part # 30074000
Features
Features
- Opens up enclosed steering positions
- The handle never moves out of reach
- Operated with a single handlebar that rotates to seal down the hatch
- Can be secured with a 5cm opening when full ventilation is not required
- Acrylic can be replaced without the use of sealant
- Sliding technology from Lewmar racing hardware track systems, ensuring minimum friction
- The Pilot Hatch uses Lewmar unique seal system for improved sealing and easy servicing

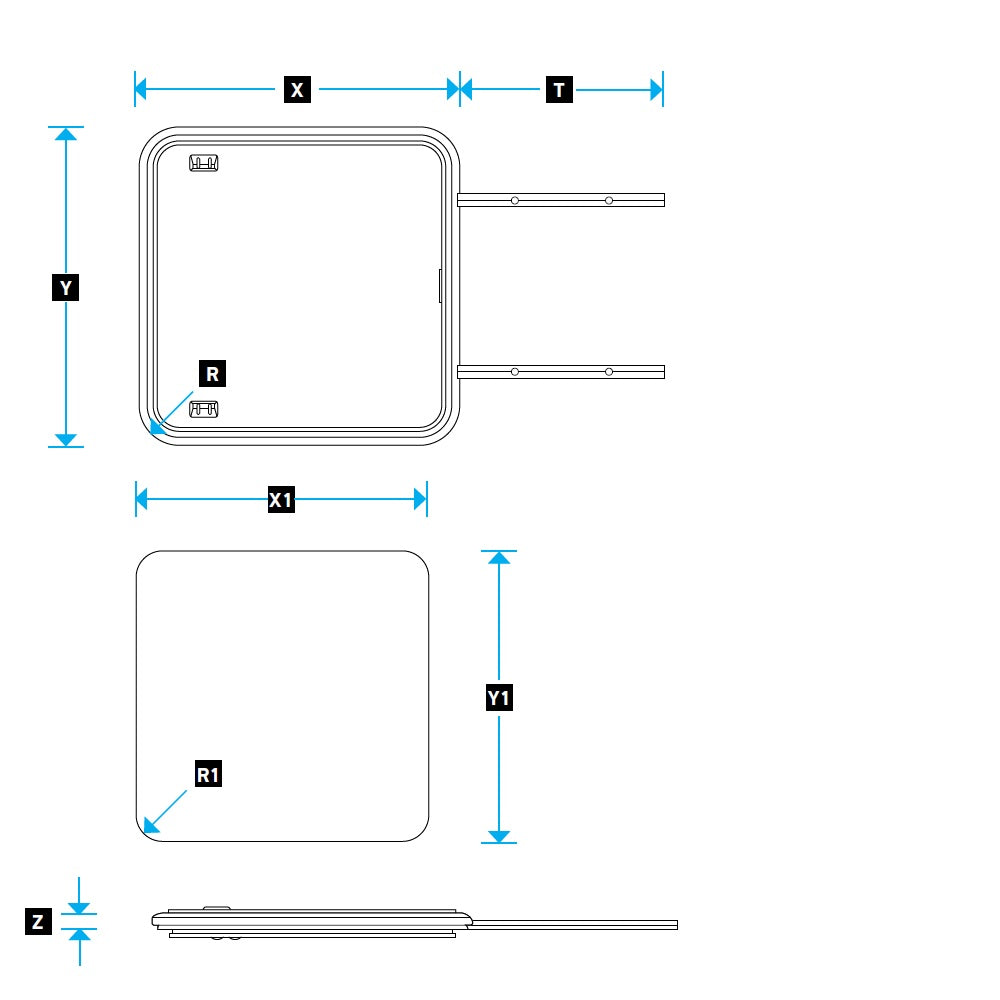

Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Size | 60.00 | 60.00 |
| Acrylic Colour | Smoke Grey | Smoke Grey |
| Lower Frame Flang | 9/16 in. | 15.00 mm. |
| X (Lenght) | 22 7/8 in. | 581.00 mm. |
| Y (Width) | 22 5/7 in. | 577.00 mm. |
| Z (Height) | 1 1/7 in. | 29.00 mm. |
| R (Radil) | 2 7/8 in. | 73.00 mm. |
| T (Track Length) | 14 2/3 in. | 373.00 mm. |
| X1 (Length) | 19 15/16 in. | 507.00 mm. |
| Y1 (Width) | 19 15/16 in. | 507.00 mm. |
| R1 (Radii) | 1 11/16 in. | 42.50 mm. |
| Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
