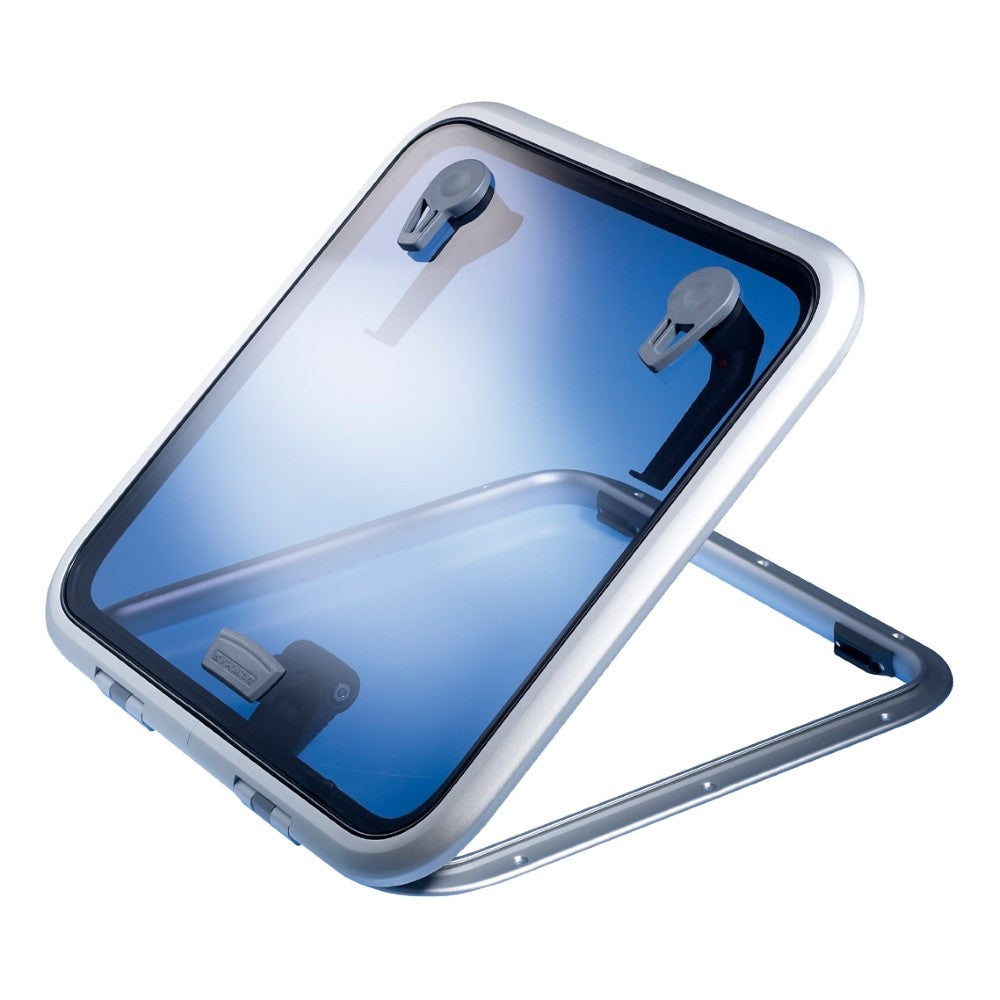

Lewmar Low Profile Hatch Size 00 - Cut Out: 21.1 x 21.1 cm (8 5/16 x 8 5/16 in) - Grey Acrylic / Silver Frame (39900030)
Lewmar Low Profile Hatch Size 00 - Cut Out: 21.1 x 21.1 cm (8 5/16 x 8 5/16 in) - Grey Acrylic / Silver Frame (39900030) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Low Profile Hatch #39900030 is perfect for giving your boat a sleek and stylish look. This hatch is great for powerboats and sailboats, providing both ventilation and aesthetics. It's easy to install and fits nicely on smaller to mid-size yachts.
This lewmar hatch measures overall 11 1/16 x 11 1/16 inches (281 x 281 mm) and features a grey acrylic lid with a silver frame. It's designed to fit flat surfaces with a maximum tolerance of +/- 1mm, making it ideal for use as a foredeck hatch or for ventilation. Follow the specific fastening size instructions for secure installation.
UsageIdeal for use on powerboats and smaller to mid-size yachts, this hatch is perfect for adding ventilation on sailboats and can be used as a foredeck hatch for easy access and airflow.
Our Part # LEW39900030 | Mfr. Part # 39900030

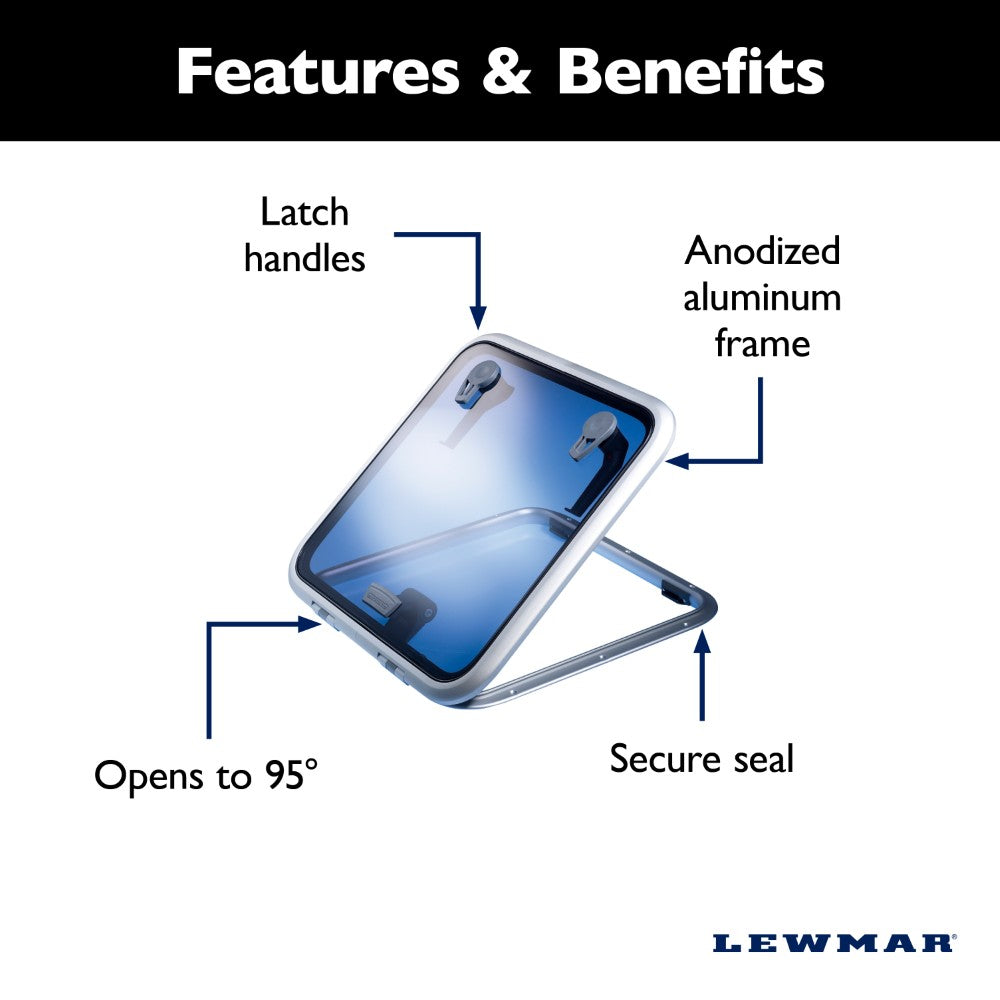

Features
Features

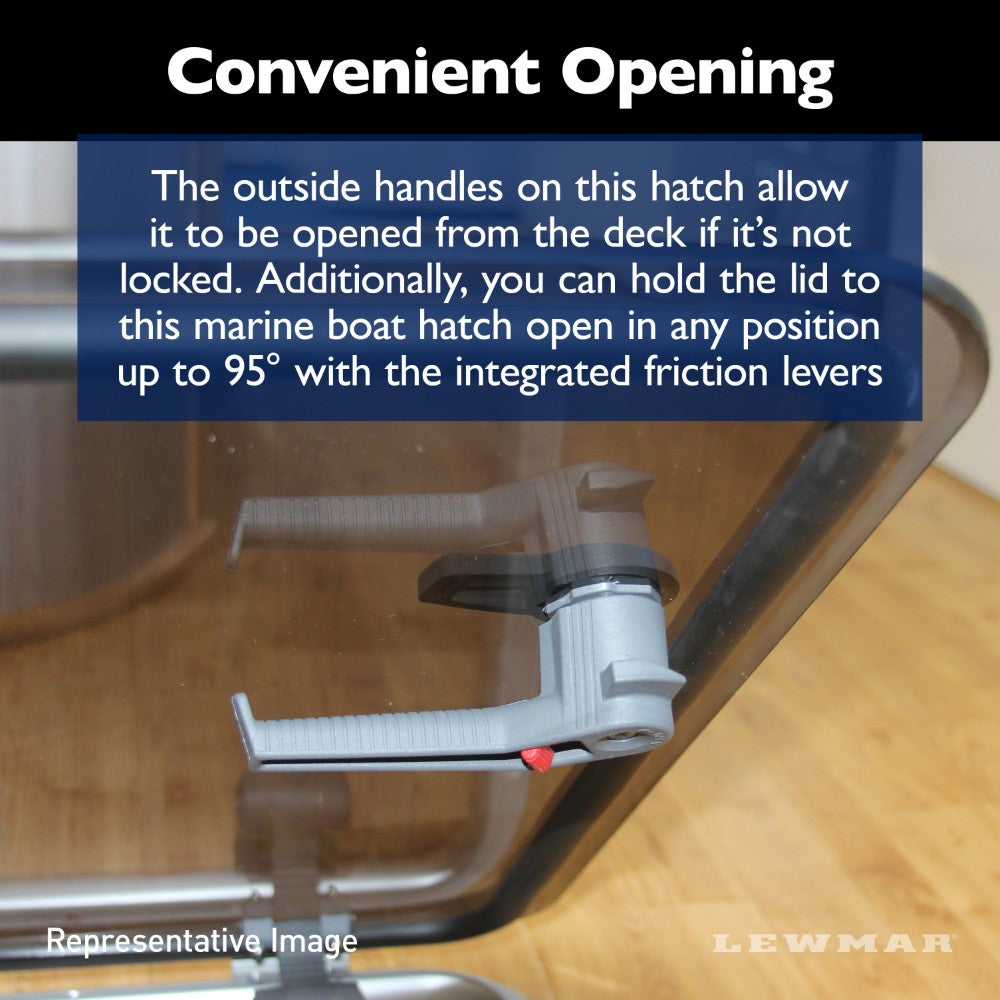

- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Friction levers hold the lid open in any position up to 95 degrees

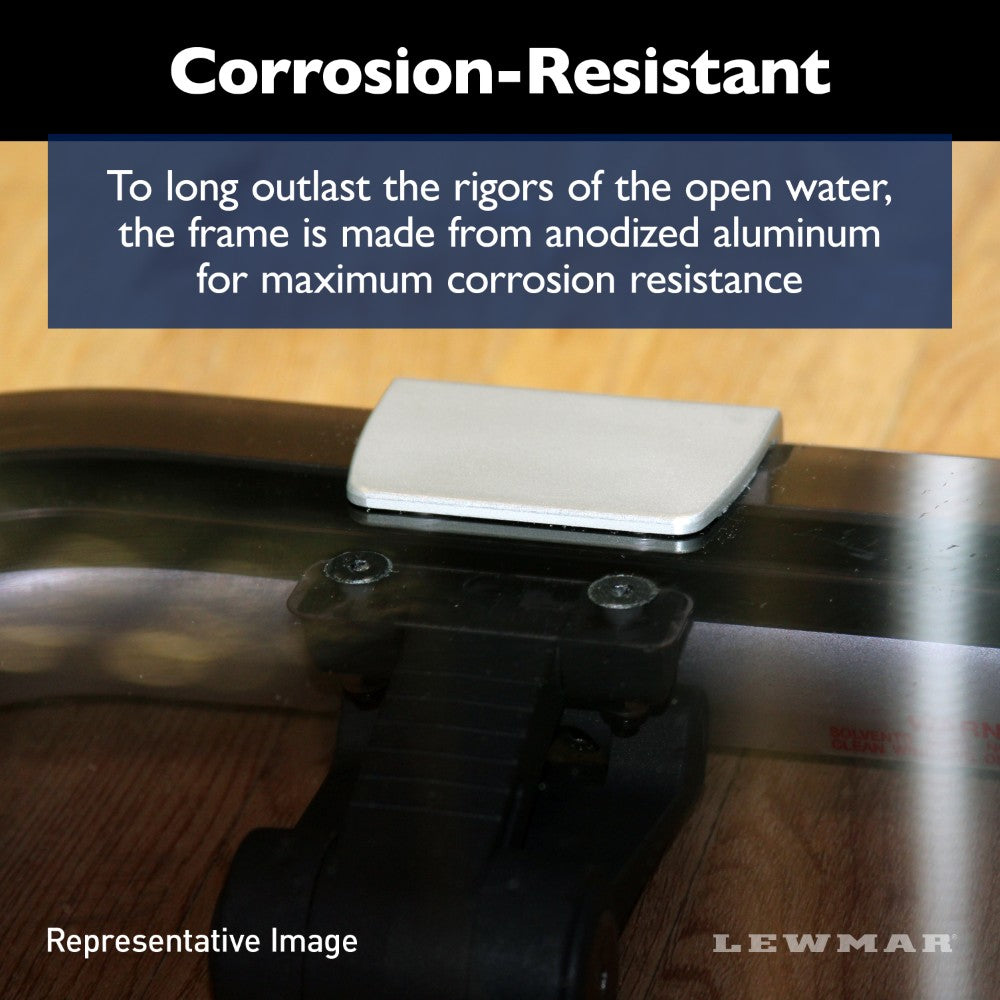

- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
- Sleek, low-profile design for a modern appearance
- Durable grey acrylic with a silver frame
- Suitable for various deck locations on sailboats

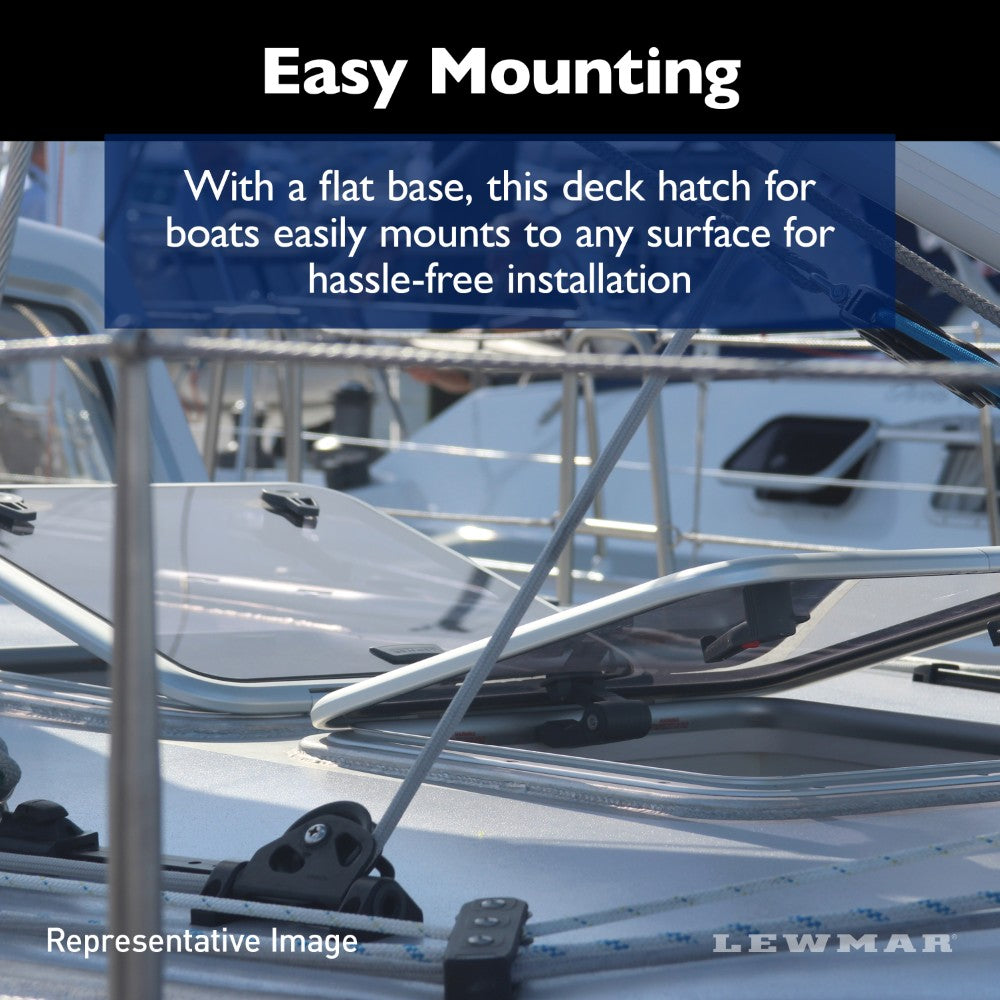

- Easy installation with specific fastening sizes
Technical Information
Technical Information

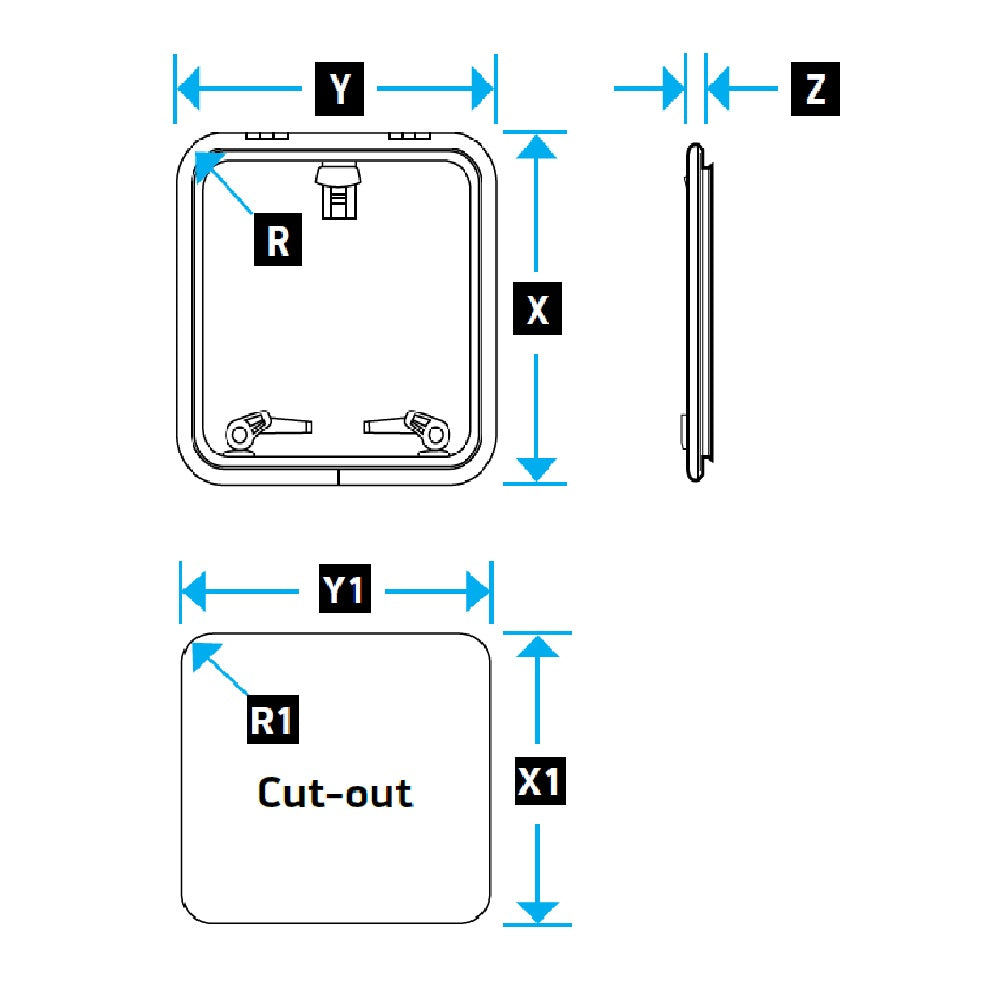

Description | Metric | Imperial |
---|---|---|
Size | 0 | |
Lower frame flange | 15 mm | 19/32 in |
Length (X) | 28.1 cm | 11 1/16 in |
Width (Y) | 28.1 cm | 11 1/16 in |
Height (Z) | 25 mm | 1.0 in |
Radii (Z) | 73 mm | 2 7/8 in |
Length (X1) | 21.1 cm | 8 5/16 in |
Width (Y1) | 21.1 cm | 8 5/16 in |
Radii (Z1) | 43 mm | 1 11/16 in |
Hatch weight | 1.6 kg | 3.5 lb |
Acrylic window thickness | 8 mm | 5/16 in |
