Lewmar Low Profile Hatch Size 10 - Cut Out: 26 x 26.0 cm (10 1/4 x 10 1/4 in) - Grey Acrylic / Silver Frame w/ Stay (399100303)
Lewmar Low Profile Hatch Size 10 - Cut Out: 26 x 26.0 cm (10 1/4 x 10 1/4 in) - Grey Acrylic / Silver Frame w/ Stay (399100303) is backordered and will ship as soon as it is back in stock.
Description
Description

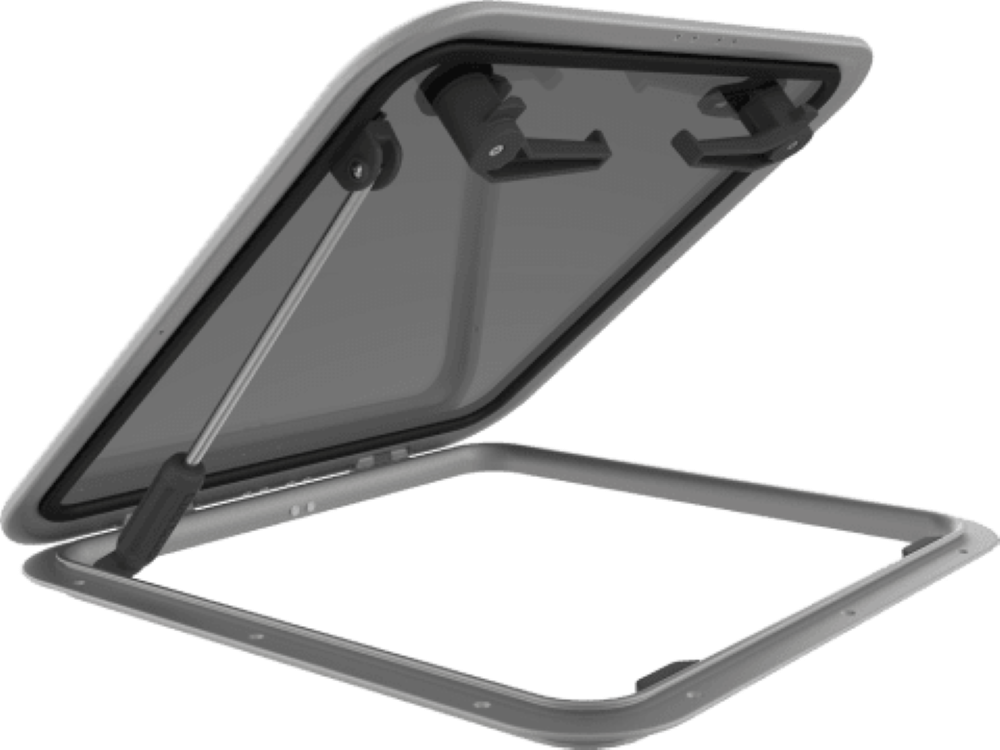

The Lewmar Low Profile Hatch #399100303 is a great choice for adding style and functionality to your sailboat. Its sleek design complements any deck, making it ideal for both powerboats and smaller to mid-size yachts. With its durable construction, it's a reliable addition to enhance ventilation and lighting.
Crafted from high-quality grey acrylic with a silver frame, this hatch measures overall 12 x 12 inches (305 x 305 mm). It’s designed to fit flat surfaces with a tolerance of +/- 1mm, making it versatile for different sailboat configurations. Fastening is made easy with specified hinge and lower frame screw sizes to ensure a secure installation.
UsageThis hatch is perfect for installing on powerboats or sailboats to provide necessary ventilation. It can be used on the foredeck of smaller to mid-size yachts, enhancing both functionality and style.
Our Part # LEW399100303 | Mfr. Part # 399100303
Features
Features
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
- Soft styling for aesthetic appeal
- Suitable for various deck locations
- Durable grey acrylic with a silver frame
- Includes stay for secure positioning
Technical Information
Technical Information

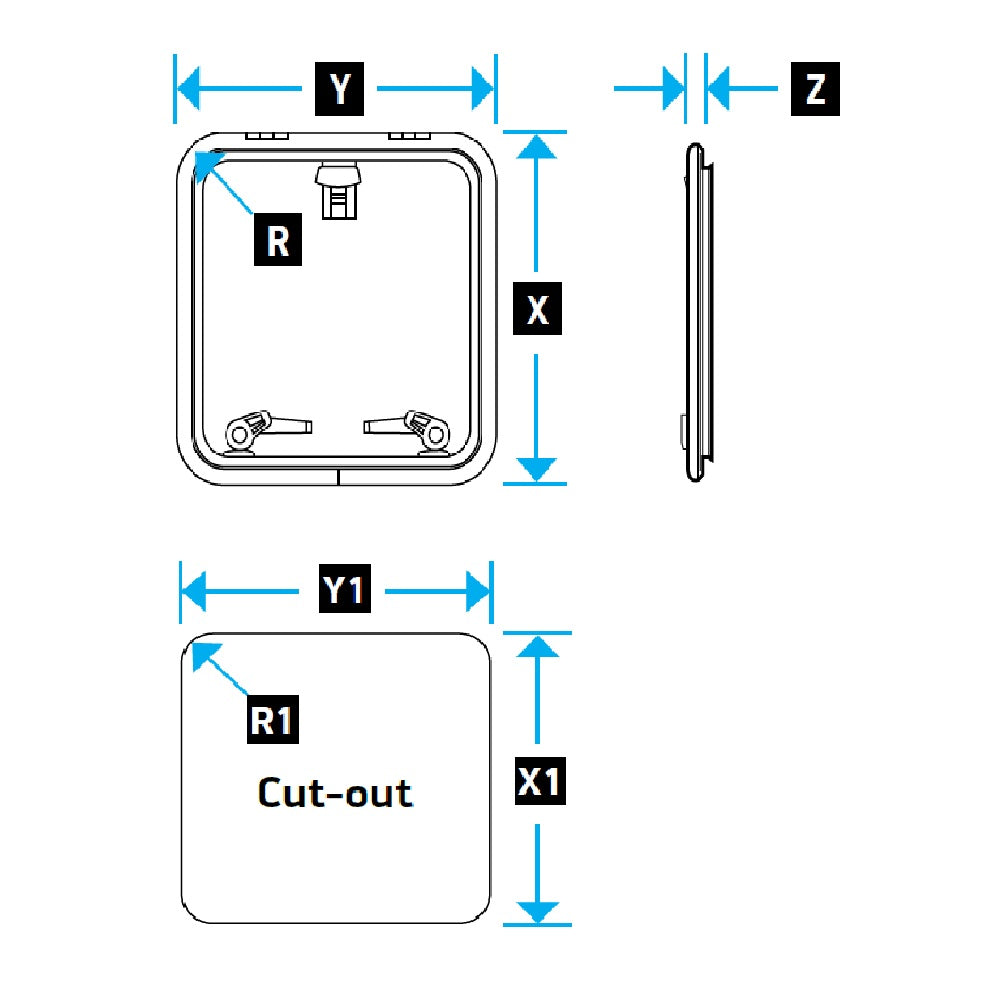

Description | Metric | Imperial |
---|---|---|
Size | 10 | |
Lower frame flange | 15 mm | 19/32 in |
Length (X) | 33.0 cm | 13.0 in |
Width (Y) | 33.0 cm | 13.0 in |
Height (Z) | 25 mm | 1.0 in |
Radii (Z) | 73 mm | 2 7/8 in |
Length (X1) | 26.0 cm | 10 1/4 in |
Width (Y1) | 26.0 cm | 10 1/4 in |
Radii (Z1) | 43 mm | 1 11/16 in |
Hatch weight | 2.2 kg | 4.9 lb |
Acrylic window thickness | 8 mm | 5/16 in |
