Lewmar Low Profile Hatch Size 44 - Cut Out: 44.2 x 44.2 cm (17 3/8 x 17 3/8 in) - Grey Acrylic / Silver Frame with Stay (399440303)
Lewmar Low Profile Hatch Size 44 - Cut Out: 44.2 x 44.2 cm (17 3/8 x 17 3/8 in) - Grey Acrylic / Silver Frame with Stay (399440303) is backordered and will ship as soon as it is back in stock.
Description
Description

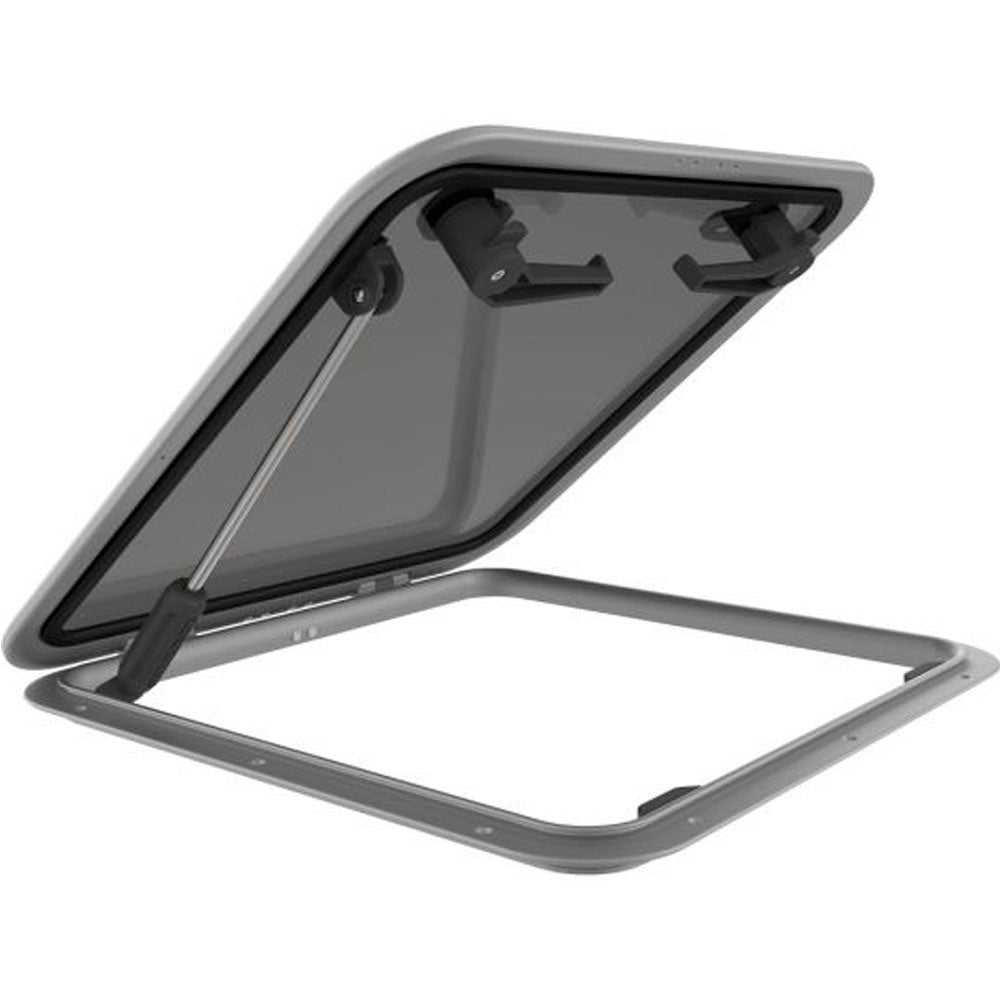

The Lewmar Low Profile Hatch #399440303 is perfect for powerboats, offering a sleek look with its grey acrylic and silver frame. It's a versatile ventilation product that fits well on any sailboat deck or as a foredeck hatch for smaller to mid-sized yachts. Plus, it comes with a convenient stay for easy use.
This hatch measures overall 20 3/16 x 20 3/16 inches (513 x 513 mm), making it an ideal fit for a variety of boats. Constructed with grey acrylic and a silver frame, it combines durability with style. It's designed to be mounted on a flat surface with a maximum tolerance of +/- 1mm, requiring specific fastening sizes as detailed in the installation instructions.
Our Part # LEW399440303 | Mfr. Part # 399440303
Features
Features
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
- Soft styling for a modern appearance
- Durable grey acrylic material
- Silver frame enhances aesthetics
- Includes stay for secure positioning
- Perfect for both powerboats and sailboats
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Size | 44 | |
Lower frame flange | 15 mm | 19/32 in |
Length (X) | 51.2 cm | 20 3/16 in |
Width (Y) | 51.2 cm | 20 3/16 in |
Height (Z) | 25 mm | 1.0 in |
Radii (Z) | 73 mm | 2 7/8 in |
Length (X1) | 44.2 cm | 17 3/8 in |
Width (Y1) | 44.2 cm | 17 3/8 in |
Radii (Z1) | 43 mm | 1 11/16 in |
Hatch weight | 4.8 kg | 10.6 lb |
Acrylic window thickness | 8 mm | 5/16 in |
