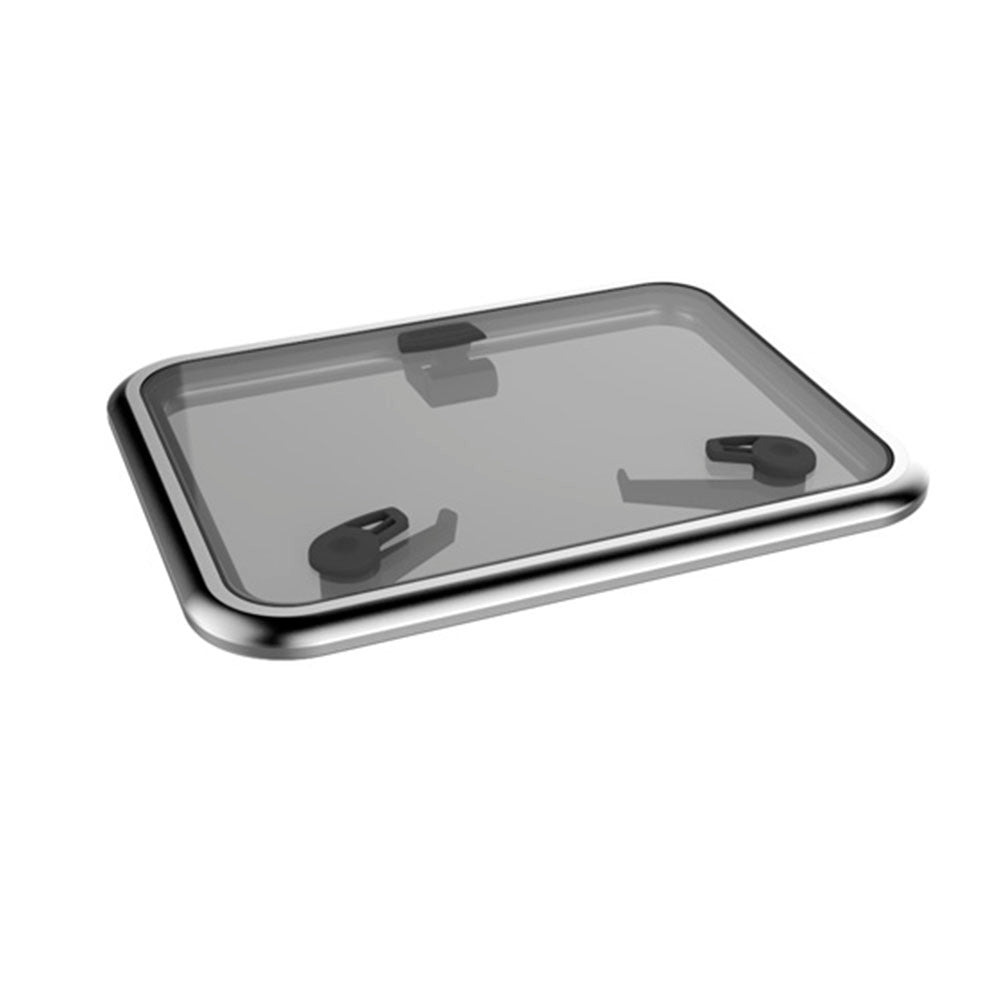

Lewmar Medium Profile Hatch Size 70 - Cut Out: 62.7 x 62.7 cm (24 11/16 x 24 11/16 in) - White Acrylic / Silver Frame
Lewmar Medium Profile Hatch Size 70 - Cut Out: 62.7 x 62.7 cm (24 11/16 x 24 11/16 in) - White Acrylic / Silver Frame is backordered and will ship as soon as it is back in stock.
Description
Description
The Medium Profile Hatch #39970320 is perfect for those seeking a sturdy and reliable foredeck hatch for larger offshore yachts. It's designed with thicker acrylic and a deeper frame for enhanced strength and durability while keeping the modern lines that everyone loves. Plus, it features Lewmar’s special sealing system for easy acrylic swaps.
This hatch measures overall 27 1/2 x 27 1/2 inches (699 x 699 mm) and is crafted with white acrylic and a silver frame for a stylish finish. It's a great choice for sailing enthusiasts who prioritize both function and design in their equipment.
Our Part # LEW39970320 | Mfr. Part # 39970320
Features
Features
- Outside handles allow the hatch to be opened from on deck if it is not locked
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Full range of spare parts available
- Thicker acrylic for improved durability
- Deeper frame sections for added strength
- Unique sealing system for easy acrylic replacement
- Maintains sleek, modern lines
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Size | 70.00 | 70.00 |
Lower Frame Flang | 9/16 in. | 15.00 mm. |
X (Lenght) | 27 1/2 in. | 698.00 mm. |
Y (Width) | 27 1/2 in. | 698.00 mm. |
Z (Height) | 1 1/4 in. | 32.00 mm. |
R (Radii) | 3 1/16 in. | 78.00 mm. |
X1 (Length) | 24 11/16 in. | 627.00 mm. |
Y1 (Width) | 24 11/16 in. | 627.00 mm. |
R1 (Radii) | 1 11/16 in. | 42.50 mm. |
Acrylic Window Thickness | 1/2 in. | 12.00 mm. |
Hatch Weight | 23.40 lb. | 10.60 kg. |
