Lewmar Winch Service Manual — Volume III

This manual is split into 4 pages: Part 1 → · Part 2 → · Part 3 · Part 4 →

Self Tailing Winches

Lewmar No. 16 ST winch exploded view

No. 16 Self Tailing Winch

Part No. Item Description
15016604 1 Stripper Nut/Top Cap Ask us to source it →
B 2404 Helicoil Insert Ask us to source it →
15016010 2 Washer Ask us to source it →
15016402 3A Drum – Bronze Ask us to source it →
15016502 3B Drum – Alloy Ask us to source it →
15016603 4 Spindle Ask us to source it →

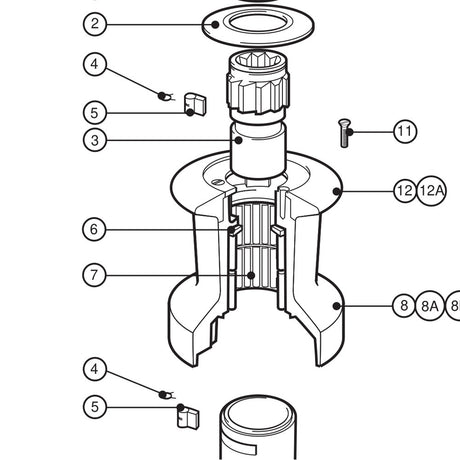

15008004 5 Washer View part →
15008007 6 Roller Bearing Ask us to source it →
15000189 7 Centre Stem Ask us to source it →

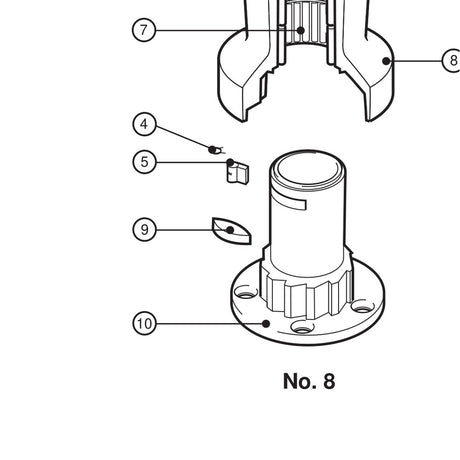

15008005 8 Key View part →
1260/8 9 Pawl Ask us to source it →
1260/7 10 Pawl Spring Ask us to source it →
B 2085 11 Circlip Ask us to source it →
15016007 12 Retaining Plate Ask us to source it →
15000098 13 Ratchet Gear Ask us to source it →
15000099 14 Idler Gear Ask us to source it →
15000128 15 Idler Spindle Ask us to source it →

Lewmar Nos. 30/34 ST winch exploded view

No. 30 Self Tailing Winch

Part No. Item Description
15030604 1 Stripper Nut/Top Cap Ask us to source it →
15030402 2A Drum – Bronze Ask us to source it →
15030502 2B Drum – Alloy Ask us to source it →
15008007 3 Roller Bearing Ask us to source it →
15030007 5 Drum Washer Ask us to source it →
15000190 6 Centre Stem Ask us to source it →
1260/8 7 Pawl Ask us to source it →
1260/7 8 Pawl Spring Ask us to source it →
15008005 9 Key View part →
15030005 10 Ratchet Gear Ask us to source it →
15030006 11 Pawl Gear Ask us to source it →
15000129 12 Gear Spindle Ask us to source it →
15030603 13 Spindle Ask us to source it →
15030607 14 Washer Ask us to source it →

No. 34 Self Tailing Winch

Part No. Item Description
15034634 1 Stripper Nut/Top Cap Ask us to source it →
15034432 2A Drum – Bronze Ask us to source it →
15034532 2B Drum – Alloy Ask us to source it →
15010007 3 Roller Bearing View part →
15010008 4 Spacer View part →
15034638 5 Drum Washer Ask us to source it →
15000180 6 Centre Stem Ask us to source it →
1260/8 7 Pawl Ask us to source it →
1260/7 8 Pawl Spring Ask us to source it →

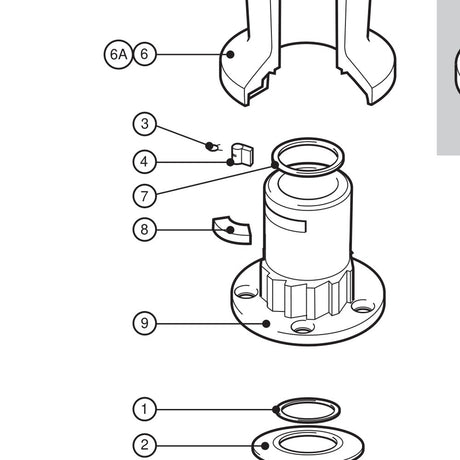

15010005 9 Key View part →
15034635 10 Ratchet Gear Ask us to source it →
15034636 11 Pawl Gear Ask us to source it →
15000129 12 Gear Spindle Ask us to source it →
15034633 13 Spindle Ask us to source it →
15034637 14 Washer Ask us to source it →

Lewmar No. 40 ST winch exploded view

No. 40 Self Tailing Winch

Part No. Item Description
15000138 1 Top Cap View part →
B 0709 2 Skt. Hd. Cap Screw – ¼" UNC × ¾" Long View part →
15000124 3 Upper Crown Plate Ask us to source it →
15000137 4 Stripper Ring Ask us to source it →
15000226 5A Drum – Bronze Ask us to source it →
15000123 5B Drum – Alloy Ask us to source it →
15000117 6 Centre Stem Ask us to source it →
15010005 7 Key View part →
15000175 8 Drum Washer Ask us to source it →
18000008 9 Spindle Assy. Ask us to source it →
1260/8 10 Pawl Ask us to source it →
1260/7 11 Pawl Spring Ask us to source it →
15000125 12 Ratchet Gear Ask us to source it →
15000136 13 Splined Gear Ask us to source it →
15000142 14 Retaining Plate Ask us to source it →
B 2085 15 Circlip Ask us to source it →
15000127 16 Idler Gear Ask us to source it →
15000141 17 Gear Spindle Ask us to source it →
15000135 18 Ratchet Gear Ask us to source it →
15000130 19 Pawl Gear Ask us to source it →
15010007 20 Roller Bearing View part →
15000140 21 Flanged Bush Ask us to source it →
15000134 22 Stripper Arm Ask us to source it →
15042608 23 Split Collet View part →
B 0733 24 Skt. Hd. Cap Screw – ¼" UNC × ⅜" Long View part →

Lewmar No. 42 ST winch exploded view

No. 42 Self Tailing Winch

Part No. Item Description
15042607 1 Top Cap Ask us to source it →
B 0721 2 Skt. Hd. Cap Screw – ¼" UNC × 1" Long Ask us to source it →
15042604 3 Upper Crown Plate Ask us to source it →
15042641 4 Stripper Ring Insert Ask us to source it →
15042606 5 Stripper Ring Ask us to source it →
15042402 6A Drum – Bronze Ask us to source it →
15042502 6B Drum – Alloy Ask us to source it →
15042601 7 Centre Stem Ask us to source it →
15010005 8 Key View part →
15042010 9 Drum Washer Ask us to source it →
15042603 10 Spindle Ask us to source it →
15042009 11 Gear Ask us to source it →
15016007 12 Retaining Plate Ask us to source it →
B 2085 13 Circlip Ask us to source it →
15042008 14 Pawl Gear Ask us to source it →
1260/7 15 Pawl Spring Ask us to source it →
1260/8 16 Pawl Ask us to source it →
15030005 17 Ratchet Gear Ask us to source it →
15042005 18 Gear Spindle Ask us to source it →
15042011 19 Retaining Bush Ask us to source it →
15042006 20 Ratchet Gear Ask us to source it →
15042007 21 Pawl Gear Ask us to source it →
15042004 22 Gear Spindle Ask us to source it →
15010007 23 Roller Bearing View part →

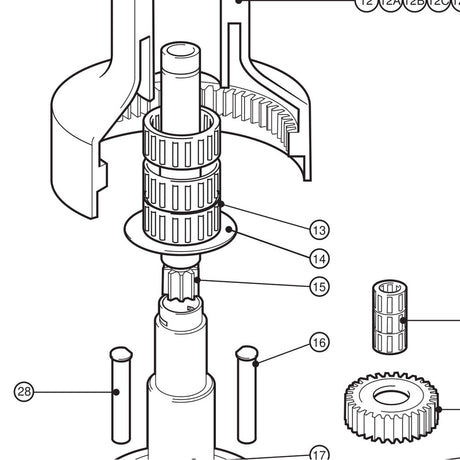

15042012 24 Spacer View part →
15042609 25 Flanged Bush Ask us to source it →
15042605 26 Stripper Arm Ask us to source it →
15042608 27 Collet View part →
B 0733 28 Skt. Hd. Cap Screw – ¼" UNC × ⅜" Long View part →

Lewmar No. 44 ST winch exploded view

No. 44 Self Tailing Winch

Part No. Item Description
15044639 1 Top Cap Ask us to source it →
B.0729 2 Skt. Hd. Cap Screw – ¼" UNC × 1½" Long Ask us to source it →
15044644 3 Upper Crown Plate Ask us to source it →
15044649 4 Stripper Ring Ask us to source it →
15044641 4 Stripper Ring Insert View part →
B.0723 5 Skt. Hd. Cap Screw – ¼" UNC × ½" Long Ask us to source it →
15044635 6 Lower Crown Plate Ask us to source it →
15000308 7 Collar Ask us to source it →
15000007 8 Centre Stem – Upper Ask us to source it →
15044121 9 Roller Bearing View part →
15044116 10 Drum Washer View part →
B.0719 11 Skt. Hd. Cap Screw – 5/16" UNC × ½" Long Ask us to source it →
15000009 12 Centre Stem – Lower Ask us to source it →
15044633 13 Spindle Ask us to source it →
1260/8 14 Pawl Ask us to source it →
15025107 15 Spacer Ask us to source it →
1260/7 16 Pawl Spring Ask us to source it →
15016105 17 Ratchet Gear Ask us to source it →
15016107 18 Spindle End Cap Ask us to source it →
B.0515 19 C'sk. Screw – ¼" UNC × ½" Long Ask us to source it →
B.1516 20 Spirol Pin Ask us to source it →
15000011 21 Gear Spindle Ask us to source it →
15025105 22 Pawl Gear Ask us to source it →
15025106 23 Washer Ask us to source it →
15041105 24 Ratchet Gear Ask us to source it →
15000010 25 Gear Spindle Ask us to source it →
15044107 26 Output Gear Ask us to source it →
15065115 27 Spacer Ask us to source it →
15040605 28 Key View part →
15000074 29A Drum – Bronze Ask us to source it →
15044502 29B Drum – Alloy Ask us to source it →
15044602 29C Drum – St. Steel Ask us to source it →
15044627 30 Flanged Bush Ask us to source it →
15044648 31 Stripper Arm Ask us to source it →
15044637 32 Collet View part →
B.0733 33 Skt. Hd. Cap Screw – ¼" UNC × ⅜" Long View part →

Lewmar No. 48 ST winch exploded view

No. 48 Self Tailing Winch

Part No. Item Description
15044639 1 Top Cap Ask us to source it →
B.0729 2 Skt. Hd. Cap Screw – ¼" UNC × 1½" Long Ask us to source it →
15048644 3 Upper Crown Plate Ask us to source it →
15048649 4 Stripper Ring Ask us to source it →
15048641 4 Stripper Ring Insert Ask us to source it →
B.0723 5 Skt. Hd. Cap Screw – ¼" UNC × ½" Long Ask us to source it →
15048635 6 Lower Crown Plate Ask us to source it →
15000097 7A Drum – Bronze Ask us to source it →
15048502 7B Drum – Alloy Ask us to source it →
15048602 7C Drum – St. Steel Ask us to source it →
15000308 8 Collar Ask us to source it →
15040605 9 Key View part →
15044121 10 Roller Bearing View part →
15000012 11 Centre Stem – Upper Ask us to source it →
15044116 12 Drum – Washer View part →
15000014 13 Centre Stem – Lower Ask us to source it →
1300/21 14 Washer Ask us to source it →
15048633 15 Spindle Ask us to source it →
15025107 16 Spacer Ask us to source it →
1260/7 17 Pawl Spring Ask us to source it →
15048104 18 Ratchet Gear Ask us to source it →
15016107 19 Spindle End Cap Ask us to source it →
B.0515 20 C'sk. Screw – ¼" UNC × ½" Long Ask us to source it →
1260/8 21 Pawl Ask us to source it →
B.1516 22 Spirol Pin Ask us to source it →
15000016 23 Gear Spindle Ask us to source it →
1300/22 24 Washer Ask us to source it →
1300/SA2 25 Roller Bearing View part →
1300/8 26 Pawl Gear Ask us to source it →
1300/7 27 Ratchet Gear Ask us to source it →
1264/7 28 Washer Ask us to source it →
1264/8 29 Pawl Ask us to source it →
15000015 30 Gear Spindle Ask us to source it →
1300/5 31 Ratchet Gear Ask us to source it →
1300/6 32 Pawl Gear Ask us to source it →
B.0719 33 Skt. Hd. Cap Screw – 5/16" UNC × ¾" Long Ask us to source it →
15044627 34 Flanged Bush Ask us to source it →
15048648 35 Stripper Arm Ask us to source it →
15044637 36 Split Collet View part →
B.0733 37 Skt. Hd. Cap Screw – ¼" UNC × ⅜" Long View part →

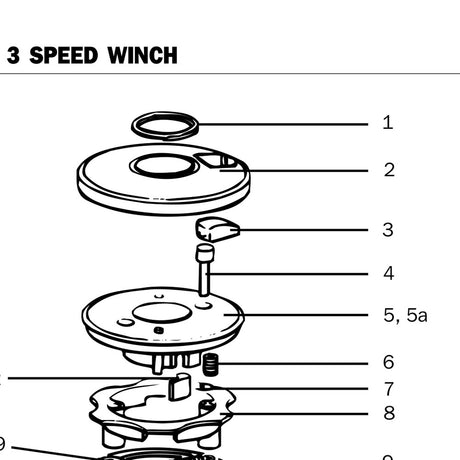

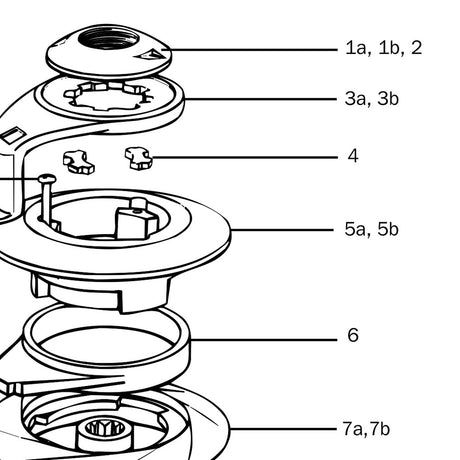

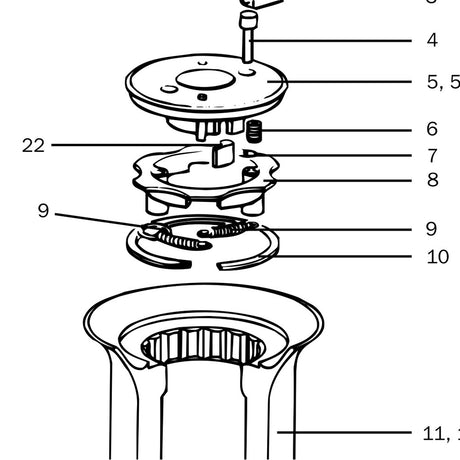

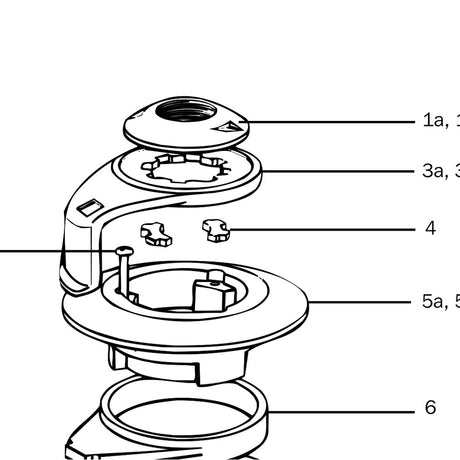

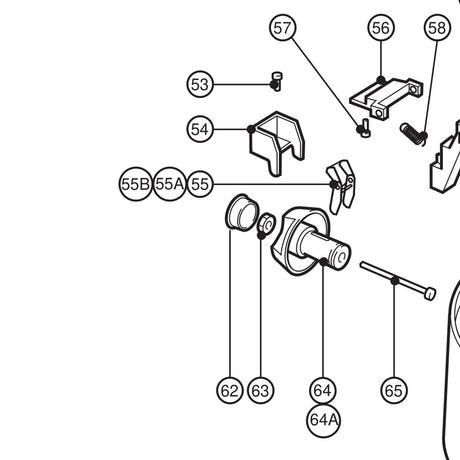

Lewmar No. 55 ST winch exploded view

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
