Lewmar Winch Service Manual — Volume 5

This manual is split into 5 pages: Part 1 → · Part 2 → · Part 3 · Part 4 → · Part 5 →

Three-Speed Winch Parts

No. 48 – 3-speed (manual p.9)

Part no. Item Description
B2075 1 Circlip Ask us to source it →
15048106 2 Top cap cover Ask us to source it →
15044114 3 Push button View part →
15044111 4 Plunger View part →
15044104 5 Top cap assembly Ask us to source it →
15044112 6 Spring View part →
1260/7 7 Pawl spring Ask us to source it →
15044106 8 Closing ring View part →
15044113 9 Spring View part →
15044115 9 Spring – anchor pin Ask us to source it →
B2083 10 Circlip View part →
15048102 11A Drum – bronze Ask us to source it →
15048202 11B Drum – alloy Ask us to source it →
15048302 11C Drum – stainless steel Ask us to source it →
15044105 12 Clutch plate Ask us to source it →
15044118 13 Collet View part →
15137203 14 Plunger View part →
15137204 15 Spring Ask us to source it →
15044121 16 Roller bearing View part →
15000320 17 Centre stem – upper Ask us to source it →
15044116 18 Drum washer View part →
15000014 19 Centre stem – lower Ask us to source it →
1300/21 20 Washer Ask us to source it →
15048103 21 Spindle Ask us to source it →
15044119 22 Drive pin View part →
15025107 23 Spacer Ask us to source it →
15000869 24 Ratchet gear Ask us to source it →
15016107 25 Spindle end gear Ask us to source it →
B0515 26 Csk screw – 1/4" UNC × 1/2" long Ask us to source it →
1260/8 27 Pawl Ask us to source it →
B1516 28 Spirol pin Ask us to source it →
15000016 29 Gear spindle Ask us to source it →
1300/22 30 Washer Ask us to source it →
1300/SA2 31 Roller bearing View part →
1300/8 32 Pawl gear Ask us to source it →
1264/7 33 Washer Ask us to source it →
1300/5 34 Ratchet gear Ask us to source it →
1264/8 35 Pawl Ask us to source it →
15000015 36 Gear spindle Ask us to source it →
1300/6 37 Pawl gear Ask us to source it →
B0719 38 Skt hd cap screw – 5/16" UNC × 3/4" long Ask us to source it →
15000019 39 Bearing View part →

No. 55 – 3-speed (manual p.10)

Part no. Item Description
B2075 1 Circlip Ask us to source it →
15055106 2 Top cap cover Ask us to source it →
15044114 3 Push button View part →
15044111 4 Plunger View part →
15044104 5 Top cap assembly Ask us to source it →
15044112 6 Spring View part →

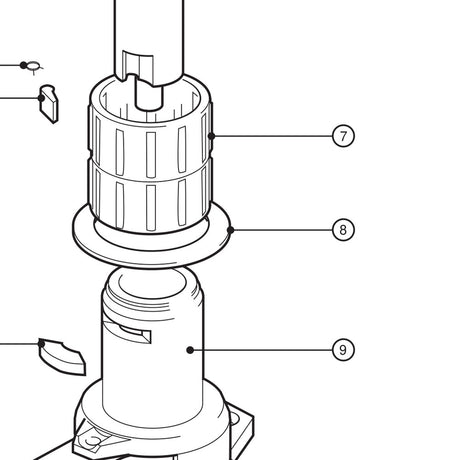

15000466 7 Drum washer View part →
15044106 8 Closing ring View part →
15044113 9 Spring View part →
15044115 9 Spring – anchor pin Ask us to source it →
B2083 10 Circlip View part →
15044105 11 Clutch plate Ask us to source it →
15137203 12 Plunger View part →
15044118 13 Collet View part →
15137204 14 Spring Ask us to source it →
15000256 15 Centre stem upper Ask us to source it →
B0698 16 Skt hd cap screw – 5/16" UNC × 1 1/2" long Ask us to source it →
15044121 17 Roller bearing View part →
15000287 18 Drum washer View part →
B0737 19 Skt hd cap screw – 5/16" UNC × 1/2" long Ask us to source it →
15000303 20 Spacer View part →
15000259 21 Ratchet gear Ask us to source it →
15000234 22 Spindle extension Ask us to source it →
15000024 23 Washer View part →
15000019 24 Roller bearing View part →
15000252 25A Bridge piece Ask us to source it →
15000053 25B Sleeve – bridge piece View part →
B2401 25C Heli-coil insert Ask us to source it →
15065111 26 Hollow dowel View part →
15000265 27 Base Ask us to source it →
B2408 27A Heli-coil insert Ask us to source it →
1260/8 28 Pawl Ask us to source it →
15000251 29 Centre stem lower Ask us to source it →
B0714 30 Skt hd cap screw – 3/8" UNC × 3/4" long Ask us to source it →
15000269 31A Drum – bronze Ask us to source it →
15000268 31B Drum – alloy Ask us to source it →
15000267 31C Drum – stainless steel Ask us to source it →
B2086 32 Circlip View part →
15044119 33 Drive pin View part →
15000266 34 Main spindle Ask us to source it →
B1501 35 Spirol pin View part →
15000236 36 Gear spindle Ask us to source it →
15000262 37 Pawl gear Ask us to source it →
1264/8 38 Pawl Ask us to source it →
15000261 39 Ratchet gear Ask us to source it →
15000017 40 Roller bearing View part →
1302/17 41 Retaining plate Ask us to source it →
B0511 42 Csk screw – 2BA × 3/8" long View part →
15000306 43 Flanged bush Ask us to source it →
15000342 44 Idler gear Ask us to source it →
15000260 45 Ratchet gear Ask us to source it →
15000247 46 Washer View part →

No. 65 – 3-speed (manual p.11)

Part no. Item Description
B2075 1 Circlip Ask us to source it →
15065106 2 Top cap cover Ask us to source it →
15044114 3 Push button View part →
15044111 4 Plunger View part →
15044104 5 Top cap assembly Ask us to source it →
15044112 6 Spring View part →
1260/7 7 Pawl spring Ask us to source it →
15044106 8 Closing ring View part →
15044113 9 Spring View part →
B2083 10 Circlip View part →
15000206 11A Drum – bronze Ask us to source it →
15000207 11B Drum – alloy Ask us to source it →
15000208 11C Drum – stainless steel Ask us to source it →
15137203 12 Plunger View part →
15137204 13 Spring Ask us to source it →
15065115 14 Spacer Ask us to source it →
15044121 15 Roller bearing View part →
B0698 16 Skt hd cap screw – 5/16" UNC × 1 1/2" long Ask us to source it →
18080015 17 Thrust bearing Ask us to source it →
15000082 18 Drum washer View part →
B0730 19 Skt hd cap screw – 5/16" UNC × 5/8" long Ask us to source it →
15000303 20 Spacer View part →
15000242 21 Ratchet gear Ask us to source it →
15000241 22 Spindle extension Ask us to source it →
15000019 23 Roller bearing View part →
15000048 24A Bridge piece Ask us to source it →
15000053 24B Sleeve – bridge piece View part →
B2401 24C Heli-coil insert Ask us to source it →
15065111 25 Hollow dowel View part →
15000197 26 Base Ask us to source it →
B2408 26A Heli-coil insert Ask us to source it →
15000024 27 Washer View part →
1260/8 28 Pawl Ask us to source it →
15000049 29 Centre stem lower Ask us to source it →
B0714 30 Skt hd cap screw – 3/8" UNC × 3/4" long Ask us to source it →
15000195 31 Centre stem upper Ask us to source it →
15044118 32 Collet View part →
15044105 33 Clutch plate Ask us to source it →
B0511 34 Csk screw – 2BA × 3/8" long View part →
15000247 35 Washer View part →
15000023 36 Retainer Ask us to source it →
1264/8 37 Pawl Ask us to source it →
15000040 38 Pawl gear Ask us to source it →
15000017 39 Roller bearing View part →
15000245 40 Idler gear Ask us to source it →
15000240 41 Gear spindle Ask us to source it →
B1501 42 Spirol pin View part →
15000018 43 Roller bearing View part →
15000244 44 Pawl gear Ask us to source it →
15000246 45 Washer View part →
15000243 46 Ratchet gear Ask us to source it →
15000239 47 Gear spindle View part →
15000198 48 Spindle Ask us to source it →
15000119 49 Drive pin Ask us to source it →
B2086 50 Circlip View part →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
