Lewmar Winch Service Manual — Volume 5

This manual is split into 5 pages: Part 1 · Part 2 → · Part 3 → · Part 4 → · Part 5 →

Winches Covered

Type Sizes Drawing date (as printed)
Single speed 6, 7 / 8 Jan 1976 (mod. July 86)
Two speed 16 / 24, 30, 40 / 43, 46 / 52 Mar 1984 / Mar 1984 / Jan 1984 / Dec 1984
Three speed 48, 55, 65 Jan 1981
Self-tailing 16 / 30 / 40 / 43, 46 / 48 / 52 / 55, 65 Jan 1984 / Mar 1983 / Jan 1984 / Mar 1983 / Jan 1981 / Dec 1984 / Jan 1981
Halliard reel 1 Jan 1976

The parts pages also include a No. 56 two-speed self-tailing winch that is not in the contents list.

Service Intervals

  • Monthly: hose down with fresh water, then lightly oil and grease.
  • Two or three times in the active season: strip, clean and relubricate.
  • End of season or before the new one: strip completely, clean, check for damage, lubricate and reassemble.

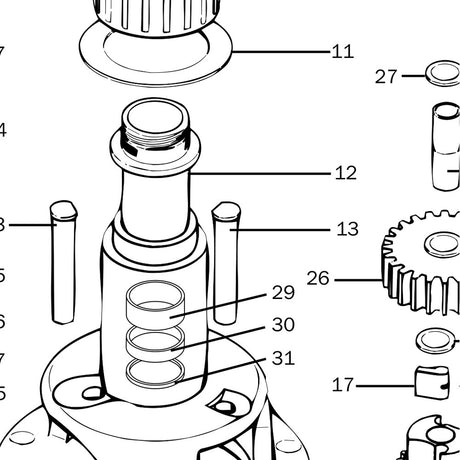

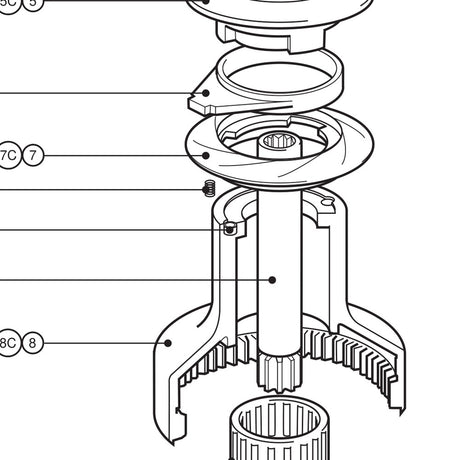

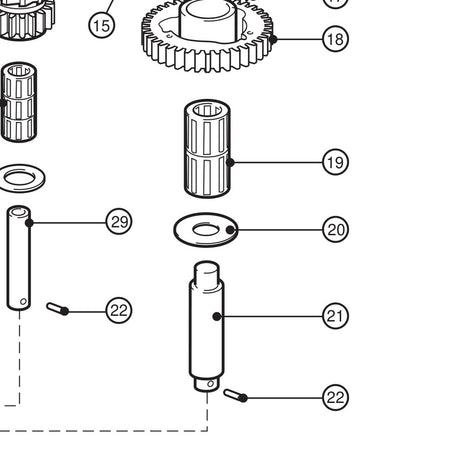

  • Dismantle using the exploded views; reassemble in the reverse order.
Lubricant Lewmar recommendation
Grease Lewmar Grease 7010 (Lubriplate Marine Lube 'A', etc.)
Oil Light machine oil (3-in-1 or equivalent)

Mounting

  • Use the correct size and type of retaining bolts; remove the drum to mount.
  • Mount on a flat, clean surface; mark and drill the bolt hole centres separately.
  • Bed on a light coat of sealing compound – too much gets into the gears and pawls.
  • Tighten the fastenings securely but do not overtighten. The winch is self-draining: keep the drain holes clear.
  • All current winches of the time accept any standard international handle.

Spares Kits

Lewmar no. Description
7001 Basic winch servicing kit (4 circlips, pawls, pawl springs)
7002 Winch servicing kit (4 circlips, 8 pawls, 12 pawl springs, 3 keys, 2 pan head screws – self tailers)
7003 Three speed winch servicing kit
7009 Allen key set
7010 Grease, 100 g plastic tube
7011 Grease, 300 gm plastic tub
7012 Assembly paste, 300 gm tub

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
