OWNER'S MANUAL

Specifications, installation, wiring, automatic free fall operation, chainwheel removal, troubleshooting and the parts lists (including the gearbox exploded view) for the Maxwell HRC FF6, FF7 and FF8 free fall horizontal windlass.

DocumentMaxwell HRC FF6, FF7 & FF8 Free Fall Windlass Owner's Manual
FormatPDF · 44 pages · 4.8 MB
LanguageEnglish
Maxwell HRC FF6, FF7 & FF8 Free Fall Windlass — Owner's Manual

Specifications

Item HRCFF 6 HRCFF 7 HRCFF 8
Power supply (DC) 12V 12V 12V/24V
Motor power 600W 600W 600W
Working load 410kg (900 lbs) 410kg (900 lbs) 410kg (900 lbs)
Haulage speed (dependant on the load) 33 m/min (108 ft/min) 33 m/min (108 ft/min) 33 m/min (108 ft/min)
Rope size 12mm (1/2") 12mm (1/2") 14mm (9/16")
Chain size (short link) 6mm 7mm (1/4") 8mm (5/16")
Net weight 11kg (24 lbs) 11kg (24 lbs) 11.5kg (25 lbs)
Circuit breaker/isolator 12V: 70amp 12V: 70amp 12V: 70amp · 24V: 40amp

8 plait rope is recommended for best operation; nylon construction must be used.

Cable length HRCFF 6-7-8 12V HRCFF 6-7-8 24V
0-5m (16') 6 mm² / 8 AWG 6 mm² / 8 AWG
5-10m (16'-35') 16 mm² / 6 AWG 6 mm² / 8 AWG
10-15m (35'-50') 25 mm² / 4 AWG 10 mm² / 6 AWG
15-20m (50'-65') 35 mm² / 2 AWG 10 mm² / 6 AWG
20-25m (65'-82') 50 mm² / 1 AWG 16 mm² / 6 AWG

Cable length is the total run battery → windlass → battery; sizes keep voltage drop under 10% (copper, 90° C insulation).

Location & Fitting

  1. In the box: clutch handle (Allen key), deckplate gasket, solenoid, deck cut-out details (rear of manual), spare pressure arm, small parts, windlass.
  2. Plan the location: rode feeds correctly, flat deck (plinth if not), avoid bulkheads, wiring and piping, strong enough mounting area, clear run from bow roller to chainwheel, room for the clutch handle.
  3. Allow at least 200mm (8") unobstructed fall from the bottom of the chute; the rope must enter the chainwheel at an angle between 0° and 30°.
  4. Use the deck cut-out template (part no. 7406, in the PDF): check the scale, align the gypsy with the bow roller, cut the holes in order A to D. The template also marks the motor cable hole and the chain counter sensor cable hole.
  5. Seal hole edges with epoxy (not for steel or aluminium), lower the deckplate into place and tighten progressively and evenly; no power tools. Use a non-acid cure flexible sealant, never a permanent adhesive.

Electrical

  • Wiring by qualified technicians to USCG, ABYC, NMMA, CE requirements. A circuit breaker/isolator and an up/down control switch are required.
  • Breaker/isolator no further than 1.8 m (6 ft) from the battery, accessible and dry. Solenoid pack in a dry area close to the windlass, not in the chain locker.
  • Footswitch approximately 500 mm (20") from the windlass, below-deck part dry, arrow showing the direction; up/down switch where the operator can see the windlass.
  • Hold the lower motor nut (A1) while tightening the upper nut (B1). Swapping F1 and F2, or connections 1 and 3 on the solenoid box, reverses rotation: check it before fitting chain or rope.
  • Ring terminals and sleeved terminations; once tested, seal terminals with CRC2403 “plasti-coat”, CRC3013 “soft seal” or CRC2409 “clear urethane”.
  • HRCFF6-7-8 use a permanent magnet motor; control circuit: manually resettable breaker, minimum 1.5mm (No.16 AWG) conductor.

Anchoring

  • Lowering: press down on the up/down switch (or Down footswitch), watch the rode and tie off on a chain stopper, snubber or cleat.
  • Raising: press up, motor up to the anchor, bring in the last meter (3') slowly; hold the anchor in the roller with a tensioner or snubber, not the windlass.
  • Manual release: loosen the clutch nut anticlockwise with the clutch handle; turning it clockwise controls the descent. Retighten when the rode is out and remove the handle. Never let the chainwheel free-wheel uncontrolled.

Safety

  • Your windlass must have a working load limit at least three times the combined weight of anchor and rope/chain; the anchor must fit the bow roller and be self-launching.
  • Tie the bitter end to a secure fixture in the locker. Never operate from a remote station without a clear view of the windlass.
  • Never use the windlass as a mooring point, to pull the boat up to the anchor, to break out a fouled anchor or to haul a person up a mast: use cleats, bollards and the engine.
  • Secure the anchor when under way; switch the breaker/isolator off when the windlass is not in use. Never reverse before the windlass has stopped.

Automatic Free Fall

  • Engaged, the windlass free-falls when lowering and re-engages the clutches automatically when raising; it can be left in this mode.
  • Engage or disengage only with the clutches fully engaged. Engage: slide the lever left and lift up. Disengage: slide it left and push down to secure.
  • To lower, pulse Down until the anchor falls freely; with enough rode out, press and hold Up until the rode starts to retrieve (clutches re-engage).
  • Never hold Up to stop rode running out at high speed; very high pay-out speeds can tangle the rode in the locker.
  • Always use a Maxwell reversing solenoid in free fall mode: others may damage the windlass through motor overrun.

Schedule

When Task
After use Wash down with fresh water; check the rope for wear and wash it down.
Every 3 months Remove the chainwheel; strip and grease the clutch faces.
Every year Clean and grease the free fall lever mechanism; clean with a cloth damp with kerosene (paraffin), spray with CRC3097 “Long Life” (or CRC6-66 / WD40) and polish off.
Every 3 years Gearbox and motor serviced by an authorized service agent; spray motor and connections with anticorrosive.

Removing the Chainwheel

  1. Secure or remove the anchor and line to take the load off; isolate power.
  2. Remove the plastic cap from the clutch cone, then the central screw and washers. Disengage the free fall lever.
  3. Loosen the clutch cone anticlockwise with a 10mm Allen key.
  4. Remove the port case (4 cap screws), then the washer and the chainwheel assembly with stripper by sliding it off the main shaft.
  5. Grease clutch cone and shaft (lithium complex grease, NLGI No.1 to No.3) and reassemble in reverse order, with pressure arm and stripper correctly located.

Troubleshooting

  • Does not operate: breaker/isolator on; connections at up/down switch, footswitches, breaker, reversing solenoid and motor; battery condition; solenoid clicks when activated.
  • Motor runs, chainwheel does not turn: clutch nut too loose; chainwheel jammed (reverse to free it); rough running or excessive noise means the gears may be damaged.
  • Rope does not retrieve or pay out: wrong rope size/type; fouled rope or anchor; twists or knots in the chain pipe; worn or stiff rope (wash in fresh water with fabric softener); too much rope in the locker; worn splice; rough deck hole; twisting chain (fit a swivel).
  • Runs slowly: power cable too small, low battery voltage, worn motor brushes.

Never wrap the motor in grease cloth: it stops the motor cooling.

Windlass Parts

Maxwell HRC-FF free fall windlass exploded view with part numbers

Part no. Description
SP0493 Nylon washer M6×12OD×1.5thk Ask us to source it →
SP2483 Cap screw M6×35 Ask us to source it →
P102858 Chainwheel HRCFF-6mm (pre-assembled kit) Ask us to source it →
P102859 Chainwheel HRCFF-7mm-1/4" (pre-assembled kit) View part →
P102860 Chainwheel HRCFF-8mm-5/16" (pre-assembled kit) View part →
7278 Stripper HRCFF View part →
SP4503 Cap screw M5×16 Ask us to source it →
SP0726 O-ring 90×2.0 Ask us to source it →
P104704 Kit – HRC-FF pressure arm (7287 pressure arm, 7288 spine) View part →

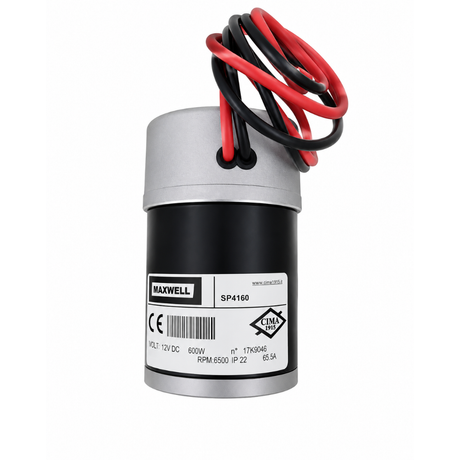

SP4160 Motor 12V 600W View part →
SP4159 Motor 24V 600W View part →
7277 Starboard cover HRCFF Ask us to source it →
SP4510 Cap screw M6×100 SS Ask us to source it →
7283 Latch pin spring HRCFF Ask us to source it →
7399 Plastic hole plug View part →
SP4512 Cap screw M5×20 SS Ask us to source it →
7282 Latch knob HRC free fall Ask us to source it →
7281 Plunger Ask us to source it →
7284 Cover Ask us to source it →
SP0172 Cap screw M6×20 Ask us to source it →
SP0444 Washer flat 1/4" × 7/8" Ask us to source it →
SP0474 Washer spring M6 Ask us to source it →
7279 Clutch cone/nut Ask us to source it →
7695 Washer Ask us to source it →
7286 Rode chute HRCFF View part →
SP0366 Nut hex M8 Ask us to source it →
SP0467 Washer spring M8 Ask us to source it →
3597 Flat washer M8×32×2 Ask us to source it →
4281 Stud M8×97 Ask us to source it →
7396 Deck gasket HRCFF Ask us to source it →
SP0484 Belleville spring washer View part →
6090 Clutch cone inner Ask us to source it →
SP3530 Allen key Ask us to source it →
SP0175 Cap screw M6×25 Ask us to source it →

Main case / gearbox: contact the manufacturer through us for the complete unit.

Chainwheel Assemblies

Part no. Kit
P102858 HRCFF 6mm chainwheel assembly kit: 7474C chainwheel inner 6mm, 7475C chainwheel outer 6mm, 7278 stripper, SP4503 cap screws Ask us to source it →
P102859 HRCFF 7mm-1/4" chainwheel assembly kit: 7476C chainwheel inner, 7477C chainwheel outer, 7278 stripper, SP4503 cap screws View part →
P102860 HRCFF 8mm-5/16" chainwheel assembly kit: 6624C chainwheel inner, 6625C chainwheel outer, 7278 stripper, SP4503 cap screws View part →

Gearbox Internals (HRC-FF exploded view)

Maxwell HRC-FF gearbox exploded view with part numbers

Part no. Description
7275 Main case Ask us to source it →
7276 Port case Ask us to source it →
7280 Mainshaft Ask us to source it →
6118 Key Ask us to source it →
6007 Gear 4th axis Ask us to source it →
7391 Pinion 1st axis View part →
7491 Gear 2nd axis Ask us to source it →
7392 Pinion 2nd axis Ask us to source it →
7393 Gear 3rd axis Ask us to source it →
6009 Collar Ask us to source it →
6155 Top hat Ask us to source it →
6048 Dowel Ask us to source it →
SP0880 Circlip 22mm external View part →
SP3909 Bearing 20×42×12mm Ask us to source it →
SP0691 Bearing 25×47×16mm Ask us to source it →
SP0684 Bearing 12×28×8mm Ask us to source it →
SP3904 Bearing 10×24×2mm Ask us to source it →
SP3903 Bearing 12×21×5mm Ask us to source it →
SP3906 Bearing Ask us to source it →
SP3905 Thrust washer Ask us to source it →
SP2775 Seal 25×47×7mm Ask us to source it →
SP2791 Oil seal 12×28×7mm Ask us to source it →
SP2777 O-ring 178mm × 2mm Ask us to source it →
SP0172 Cap screw M6 × 20mm Ask us to source it →
SP0474 Spring washer Ask us to source it →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
