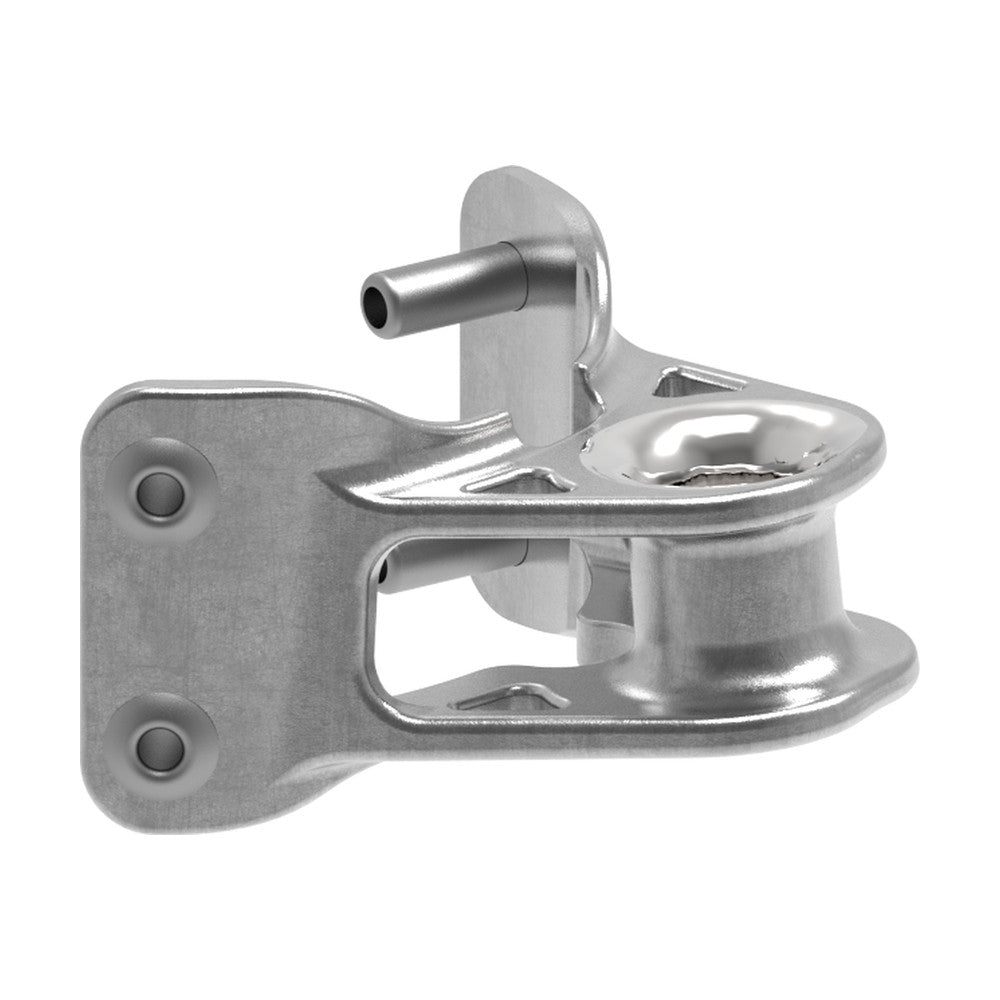

Selden Halyard Lead, Single - for Rope Halyards (Not Wire) C175-F212

SKU: SEL508-847-01  |  Manuf. Code: 508-847-01
$109.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Single halyard lead fitting in electro polished stainless steel for routing of one rope halyard. The fitting is slightly angled to achieve a perfect alignment In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyard (not wire)

FEATURES

  • Monel pop-rivets (ø6,4x12,7) included.
  • Designed for Seldén sections C175-F212, but the sides can be shaped in a vise to fit other similar sized sections.
  • SWL: 650 kg Max Halyard Ø: 12 mm Max RM MH: 50 kNm Max RM Fr: 45 kNm Type: Single.

TECHNICAL INFORMATION

DescriptionImperialMetric
SWL1,433 lb650 kg
Max Halyard Ø0.47 in12 mm
Max RM MH36,878.1 lbf-ft50 kNm
Max RM Fr33,190.29 lbf-ft45 kNm
TypeSingleSingle
Weight6.03 oz.171.00 g.
Safe Working Load1433.00 lb.650.00 kg.
