INSTRUCTIONS

How a 2:1 Code Zero halyard is arranged on a Seldén mast, and which dead-end fitting, halyard lead and halyard box to use for your righting moment and mast section.

DocumentSelden 2:1 Halyard Arrangement for Code Zero Instructions
FormatPDF · 4 pages · 0.4 MB
LanguageEnglish
Download PDFView Collection
Why 2:1Dead End FittingHalyard LeadHalyard BoxProducts
Selden 2:1 Halyard Arrangement for Code Zero — Instructions

Why a 2:1 Code Zero Halyard

For Code Zero performance the halyard load is higher than normal halyard boxes and stoppers can take. A 2:1 purchase – dead end fixed in the mast, halyard running through a block on the halyard swivel – halves the load on the halyard routing. Code Zero sails usually hoist lower than gennakers and spinnakers. The position of the 2:1 arrangement on a Seldén mast must be specified by Seldén, who can give the correct CZH (Code Zero Height) from the mast ID number.

  • Single aluminium halyard boxes do not need a halyard lead.
  • Alternatively the halyard is led from a standard spinnaker box through a halyard lead.
  • A = distance from the dead end to the CZH; C = from the CZH down to the max code zero system height (see the drawing in the PDF).

Dead End Fitting

Art. no. Max RM at 30° heel (kNm) Mast section Max rope ømm A C
508-843-01R 20 C137-F228 12 90 200 View part →
508-843-01R 45 C137-F228 12 105 225 View part →
508-844-01R 90 C245-F305 14 150 300 View part →
508-844-01R 180 C245-F305 14 200 400 View part →
508-838-01R 350 C321-F406 16 250 500 View part →

Halyard Lead

Max RM at 30° heel (kNm) Mast section Single halyard lead Double halyard lead Max rope ømm
20 / 45 C137-F212 508-847-01 508-734-01 12
45 / 90 C227-F286 508-848-01 508-735-01 14
90 C304-F305 N/A 508-839-10 14
90 C321-F324 N/A 508-839-10 14
180 / 350 C365-F370 N/A 508-837-10 16
180 / 350 F406 N/A 508-837-01 16
Art. no. Halyard lead

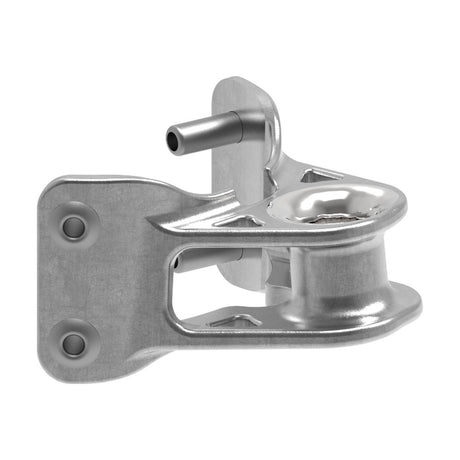

508-847-01 Single, C137-F212 View part →

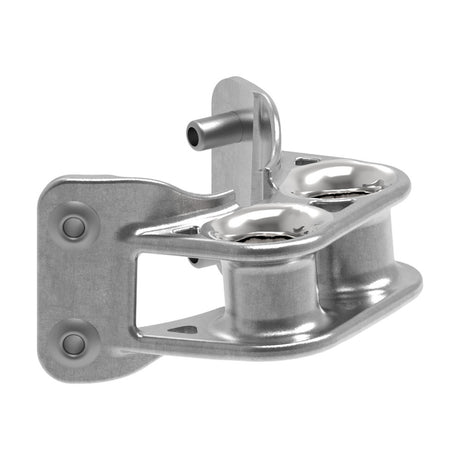

508-734-01 Double, C137-F212 View part →

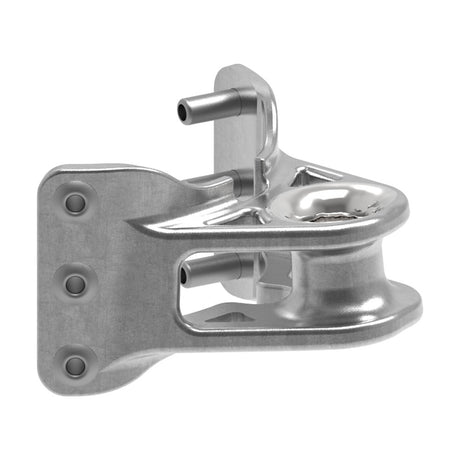

508-848-01 Single, C227-F286 View part →

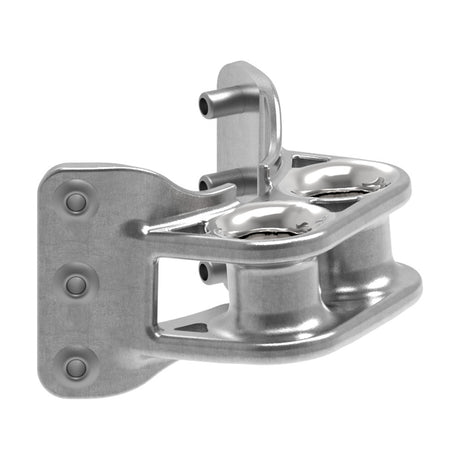

508-735-01 Double, C227-F286 View part →

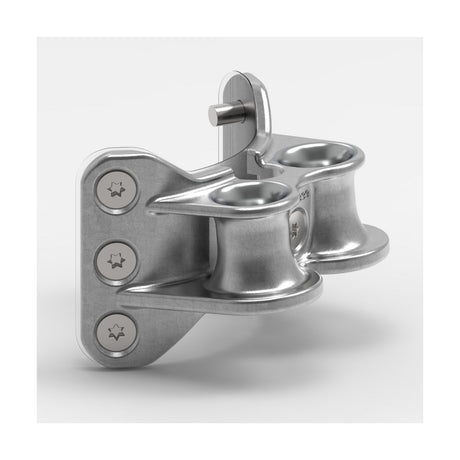

508-839-10 Double, C304-F305 / C321-F324 View part →
508-837-10 Double, C365-F370 View part →

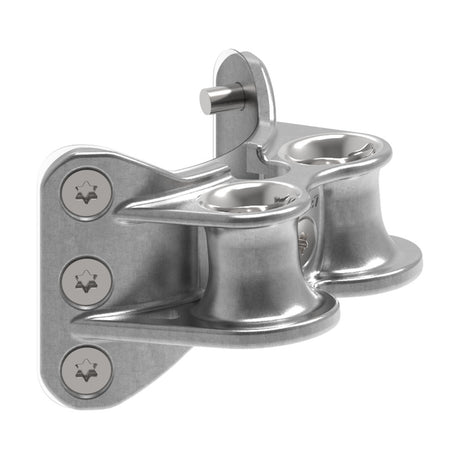

508-837-01 Double, F406 View part →

The printed table uses merged cells; rows are grouped here as they read in the PDF.

Halyard Box

Art. no. Max RM at 30° heel (kNm) Halyard box Max rope ømm

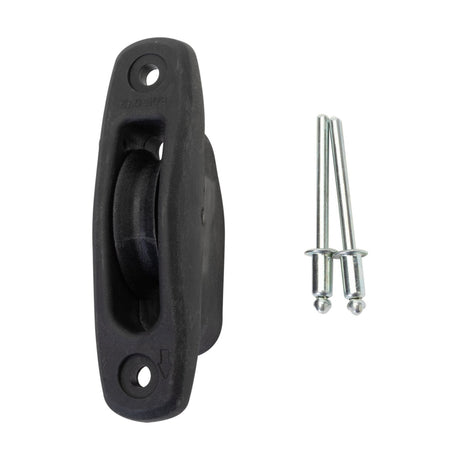

505-072-01 20 Single, Ø45 mm, composite, rivets included (no double version) 12 View part →

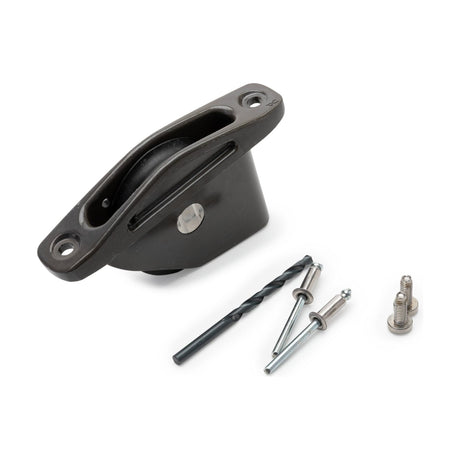

505-016-10 20 / 45 Single, Ø70 mm, alu, rivets, screws & drill bit incl. 12 View part →
505-053-10 20 / 45 Double, 2 x Ø70 mm, alu, screws incl. 12 Ask us to source it →

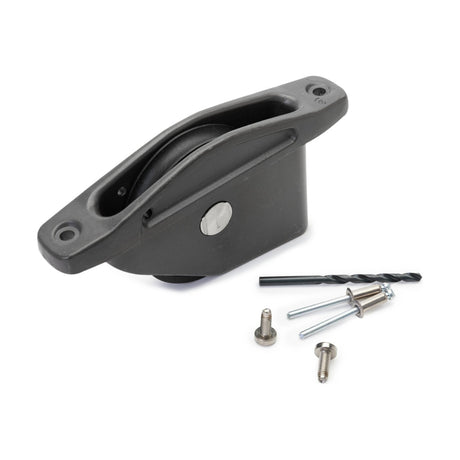

505-015-01 90 Single, Ø90 mm, alu, rivets, screws & drill bit incl. 16 View part →

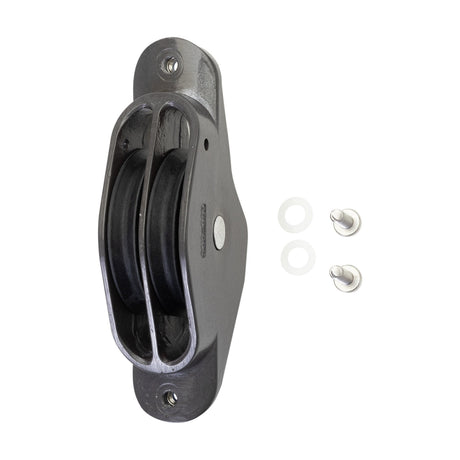

505-059-01 90 Double, 2 x Ø90 mm, alu, screws incl. 16 View part →
505-055-02 180 Single, Ø130 mm, ST, screws incl. 20 Ask us to source it →
505-051-02 180 Double, 2 x ø130 mm, ST, pin aft, screws incl. 20 Ask us to source it →
505-116-01 350 Single, Ø130 mm, pin fwd, ST, screws incl. 20 Ask us to source it →
505-113-01 350 Double, 2 x ø130 mm, ST, pin fwd, screws incl. 20 Ask us to source it →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
