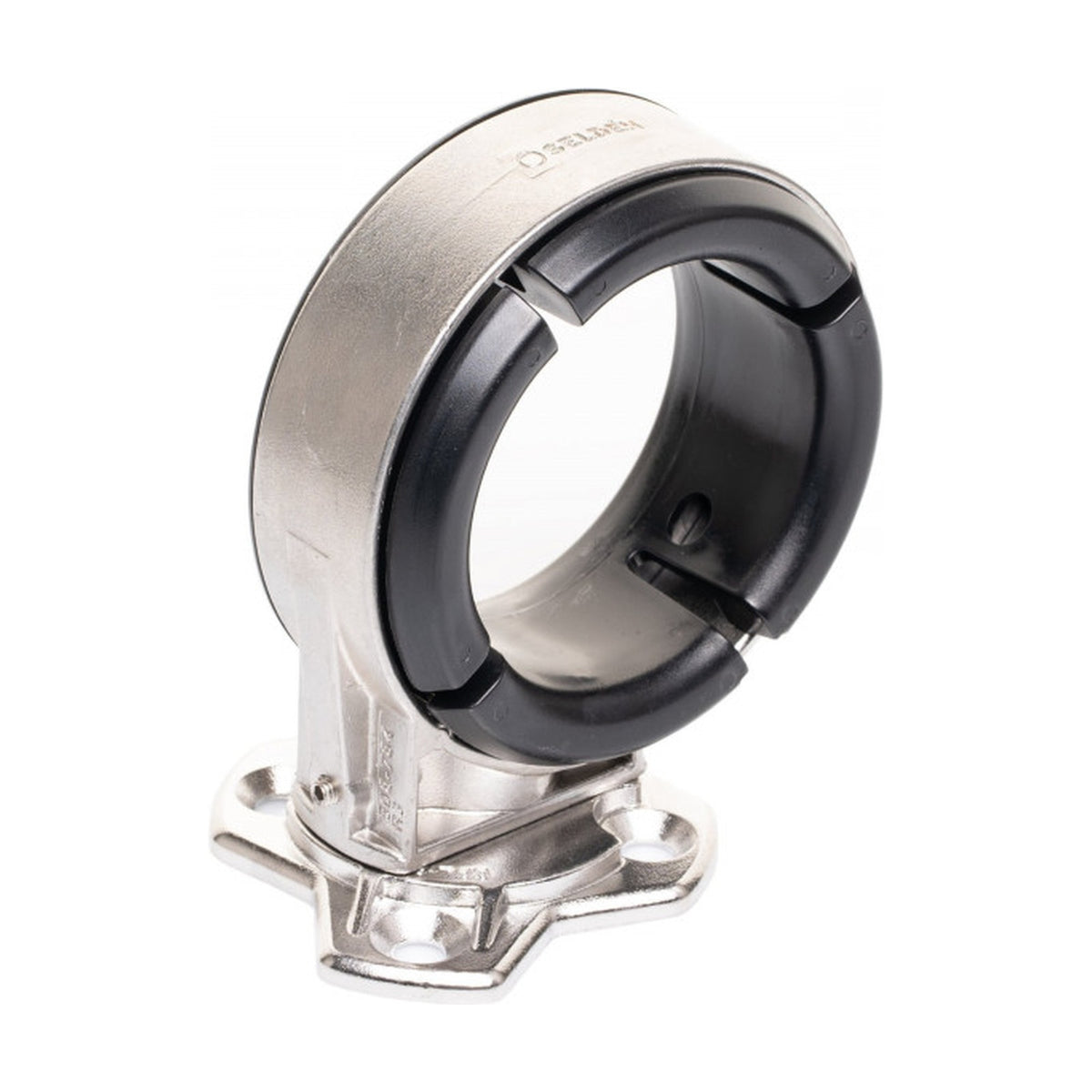

Selden DECK RING ASSY C192, C208, F199, F217 MK2

SKU: SEL533-085-01  |  Manuf. Code: 533-085-01
$545.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

On a keel-stepped mast the deck ring is the collar at deck level that holds the mast where it passes through the deck. Seldén's deck ring locks the mast with shaped rubber wedges, seals the opening, and takes a tie rod so that halyard loads pull on the tie rod instead of lifting the deck.

This is the MK2 assembly for Seldén mast sections C192 and C208 and their furling equivalents F199 and F217, mast type LMP, with a single-piece shaft for integrated blocks. Deck cut-out drawing 597-624.

Our Part # SEL533-085-01 | Mfr. Part # 533-085-01

FEATURES

  • Section: C192.
  • MastType: LMP.
  • Shaft Type: Single.
  • Cut out drawing LMP: 597-624.

TECHNICAL INFORMATION

DescriptionImperialMetric
SectionC192C192
MastTypeLMPLMP
Shaft TypeSingleSingle
Cut out drawing LMP597-624597-624
Weight8.39 lb.3.80 kg.

KNOWLEDGE BASE

Selden Deck Ring & Mast Base Dimensions and Location — InstructionsDeck ring dimensions and cut-out drawing numbers, deck ring position by mast section, and keel- and deck-stepped mast.View Manual →
