Selden Deck Ring & Mast Base Dimensions and Location — Instructions

Deck Ring Dimensions (595-813-E)

A = outer length, B = outer width, C and K as shown on the drawing in the PDF; all mm.

Part No. A B C K Fasteners Cut-out drawing
533-022 349 296 28 12 4 x M8 PS422 Ask us to source it →
533-023 401 340 32 12 4 x M8 PS423 Ask us to source it →
533-024 450 366 34 12 4 x M8 PS424 Ask us to source it →
533-029 316 244 31 10 4 x M8 PS560 / 597-638 Ask us to source it →
533-030 276 240 32 10 4 x M8 PS561 / 597-637 View part →

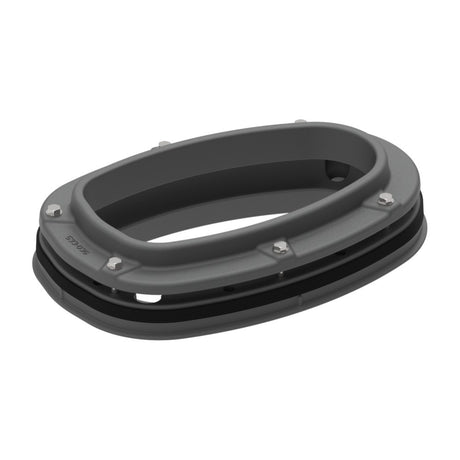

533-035/036 603 403 68 20 8 x M10 PS839 Ask us to source it →
533-038 573 410 46 14 4 x M10 PS804 Ask us to source it →
533-045 270 245 46 20 4 x M8 597-557 (PS1065) View part →
533-046 305 265 51 20 4 x M8 597-558 (PS1066) Ask us to source it →
533-047 332 287 51 20 4 x M8 597-559 (PS1067) Ask us to source it →
533-048 389 319 58 20 4 x M8 597-960 (PS1068) Ask us to source it →
533-049 429 344 63 25 4 x M8 597-561 (PS1069) Ask us to source it →
533-085 349 296 28 12 4 x M8 597-624 Ask us to source it →
533-087 404 358 40 10 4 x M8 597-625 Ask us to source it →

Deck Ring Position by Mast Section

D and I locate the deck ring relative to the mast (see drawing in the PDF); mm.

Deck ring Mast D I Cut-out drawing
533-022 C211, F212 165 60 PS422
533-022 C227, F228 165 50 PS422
533-023 C245, F246 189 65 PS423
533-023 C264, F265 189 55 PS423
533-024 C285, F286 213 70 PS424
533-024 C304, F305 213 60 PS424
533-024 C280 209 69 597-679
533-024 F291 209 63 597-679
533-029 C175, F176 150 63 PS560
533-029 C193, F194 151 54 PS560
533-029 C180 151 61 597-638
533-029 F170 152 67 597-638
533-029 F185 154 62 597-638
533-030 C156 130 52 PS561
533-030 C137 129 61 597-637
533-030 C153 131 55 597-637
533-035/-036 C405, F406 301 98 PS839
533-038 C365, F370 294 110 PS804
533-039 C321, F324 261 100 PS823
533-045 C137 146 78 597-557 (PS1065)
533-045 C153 148 72 597-557 (PS1065)
533-046 C180 175 85 597-558 (PS1066)
533-046 F170 171 87 597-558 (PS1066)
533-046 F185 173 80 597-558 (PS1066)
533-047 C192 179 83 597-559 (PS1067)
533-047 C208 187 83 597-559 (PS1067)
533-047 F199 175 75 597-559 (PS1067)
533-047 F217 186 77 597-559 (PS1067)

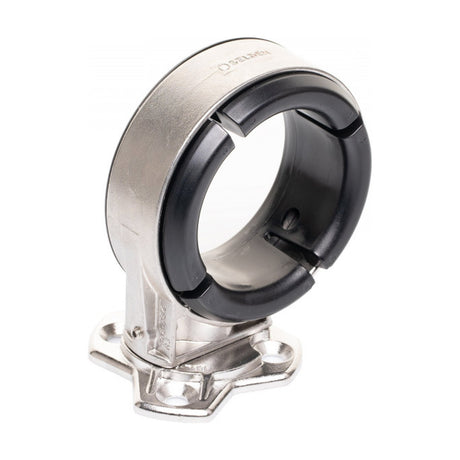

533-048 C225 205 93 597-960 (PS1068)
533-048 C242 206 85 597-960 (PS1068)
533-048 F234 200 83 597-960 (PS1068)
533-048 F252 210 84 597-960 (PS1068)
533-049 C261 225 95 597-561 (PS1069)
533-049 C280 236 96 597-561 (PS1069)
533-049 F272 231 95 597-561 (PS1069)
533-049 F291 231 86 597-561 (PS1069)
533-085 C192 164 68 597-624
533-085 C208 155 51 597-624
533-085 F199 167 68 597-624
533-085 F217 159 51 597-624
533-087 C225 199 87 597-625
533-087 C242 186 65 597-625
533-087 F234 204 87 597-625
533-087 F252 191 96 597-625

Keel-Stepped Mast Base Dimensions & Position

Part No. H J E F Fasteners Drawing
510-152-01 200 146 66 104 4 x m8 PS565 View part →
510-134-01 250 180 80 125 4 x m8 PS478 View part →
510-143-01 350 240 90 160 4 x m8 PS479 View part →
510-126 w. 510-125 406 275 160 200 4x m12 Ask us to source it →
510-190 w. 510-191 530 See PS 840 230 4x m12 PS840 Ask us to source it →
510-237-01 200 146 66 104 4 x m8 View part →
510-249-01 200 146 66 110 4 x m8 View part →
510-250-01 250 180 80 140 4 x m8 Ask us to source it →
510-251-01 320 240 90 170 4 x m8 View part →

G1 / G2: distances from the centre of mast and mast base (mm).

Mast base Mast G1 G2
510-152-01 C156 101 99
510-152-01 C175, F176 85 115
510-152-01 C193, F194 83 117
510-134-01 C211, F212 / C227, F228 / C245, F246 125 125
533-143-01 (as printed) C264, F265 / C285, F286 / C304, F305 175 175
510-126 with 510-125 C321, F324 / C365, F370 223 257
510-190 with 510-191 C405, F406 279 251
510-237-01 C137 98 102
510-237-01 C153 97 103
510-249-01 F170, C180, F185 99 101
510-250-01 C192 124 126
510-250-01 F199 123 127
510-250-01 C208 124 126
510-250-01 F217 123 127
510-250-01 C225 122 128
510-250-01 F234 123 127
510-251-01 C242, F252, C261, C280 158 162
510-251-01 F272 156 164
510-251-01 F291 147 173

Deck-Stepped Mast Base Location (595-962-E)

A, B, D measured from the geometrical centre of the mast (see the PDF drawing); mm. Recommended fasteners: 1) 4xM8 CSK; 2) 4xM6S 12 ISO4014; 3) 4xM6S 16 ISO4014.

Part No. Mast A B D Note
510-157-01 C156 97 128 78 1 View part →
510-157-01 C175, F176 113 112 88 1 View part →
510-157-01 C193, F194 116 109 97 1 View part →
510-236-01 C137 81 81 69 1 View part →
510-236-01 C153 81 81 77 1 View part →
510-135-01 C211, F212 149 151 106 1 View part →
510-135-01 C227, F228 148 152 114 1 View part →
510-135-01 C245, F246 150 150 123 1 View part →
510-136-01 C211, F212 146 130 106 1 View part →
510-136-01 C227, F228 146 130 114 1 View part →
510-136-01 C245, F246 146 129 123 1 View part →
510-141-01 C264, F265 205 176 132 1 View part →
510-141-01 C285, F286 205 176 142 1 View part →
510-141-01 C304, F305 207 173 152 1 View part →
510-142-01 C264, F265 189 200 132 1 View part →
510-142-01 C285, F286 188 200 143 1 View part →
510-142-01 C304, F305 190 198 153 1 View part →
510-125-01 C321, F324 237 171 161 2 View part →
510-125-01 C365, F370 237 171 183 2 View part →
510-190 F406 210 180 203 3 Ask us to source it →
510-245-01 C153 112 111 77 1 Ask us to source it →
510-245-01 C180 112 111 90 1 Ask us to source it →
510-245-01 F169 112 111 85 1 Ask us to source it →
510-245-01 F185 112 111 93 1 Ask us to source it →
510-246-01 C192 127 127 96 1 View part →
510-246-01 C208 127 127 104 1 View part →
510-246-01 C225 127 127 113 1 View part →
510-246-01 F199 127 127 100 1 View part →
510-246-01 F217 127 127 109 1 View part →
510-246-01 F234 127 127 117 1 View part →
510-247-01 C242 163 164 121 1 View part →
510-247-01 C261 163 164 131 1 View part →
510-247-01 C280 163 164 140 1 View part →
510-247-01 F252 163 164 126 1 View part →
510-247-01 F272 169 159 136 1 View part →
510-247-01 F291 178 150 146 1 View part →

Older Sheets (Large Sections)

  • 595-728-E (scanned): deck ring / T-base location for 321/171, 324/169, 365/194 and 370/192. Deck ring A x B: 618 x 365 (321/171, 324/169) and 646 x 390 (365/194, 370/192); deck ring parts 533-016 / 533-017 and 533-018 / 533-019 respectively. T-base 510-126 with 510-125 (223 / 257 mm on the T-base drawing).
  • 595-701-E: picture sequence (five steps) for assembling the deck ring on mast extrusions E321/171, R324/169, E365/194 and R370/192.
