OWNER'S MANUAL

Installation, operation, maintenance and spare parts for the Selden E40, E46, E52, E60 and E66 electric self-tailing winches – a Series-S winch on a 42V SEL-Bus motor pack, also sold as an upgrade for S40-S66 from 2024.

DocumentSelden Electric Self-Tailing Winches E40–E66 Owner's Manual
FormatPDF · 34 pages · 10.8 MB
LanguageEnglish
Download PDFView Collection
SpecificationsIncluded PartsInstallationOperationTroubleshootingMaintenanceSpare PartsProducts
Selden Electric Self-Tailing Winches E40–E66 — Owner's Manual

Dimensions and Technical Data

Model H mm h mm ØD mm Ød mm Line mm Ratio high / low Weight kg Max line speed m/min SWL kN ECL kN
E40 202 145 152 75 8-12 13:1 / 40:1 9,9 54 11,2 6.7
E46 226 145 184 90 8-14 13:1 / 46:1 13,2 40 12,9 9.7
E52 226 145 184 90 8-14 15:1 / 52:1 13,2 40 14,6 9.7
E60 279 145 245 120 8-16 18:1 / 60:1 23,2 28 16,8 14.7
E66 279 145 245 120 8-16 20:1 / 66:1 23,3 28 18,5 14.7

H = height above deck, h = protrusion below the mounting surface. Exceeding the max line size can damage the self-tailing jaws.

Selden E40-E66 electric winch main components: top cover, self-tailing arm, locator bracket, drum, roller bearings, winch base and motor pack

Winch + Motor Pack

Model Winch, aluminium drum Motor pack S-winch to motor pack fasteners

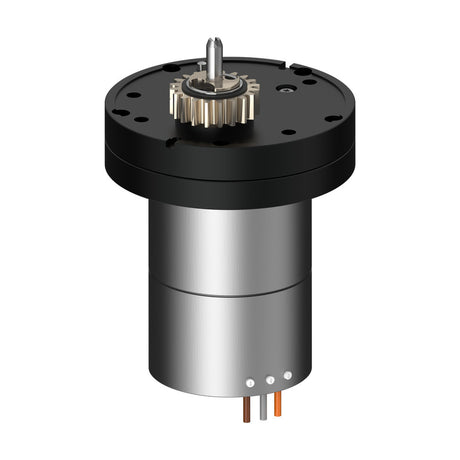

E40 475-140-01 473-430-02 162-061, 4x M8x35

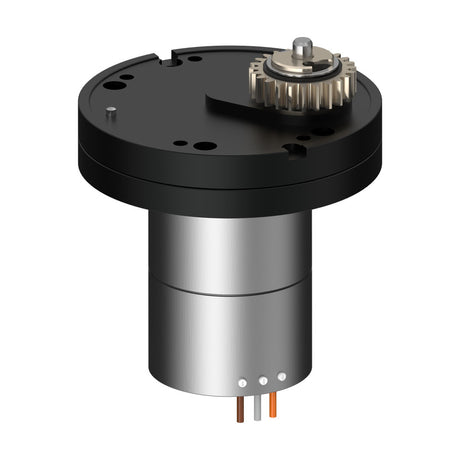

E46 475-146-01 473-530-02 162-061, 5x M8x35
E52 475-152-01 473-530-02 162-061, 5x M8x35

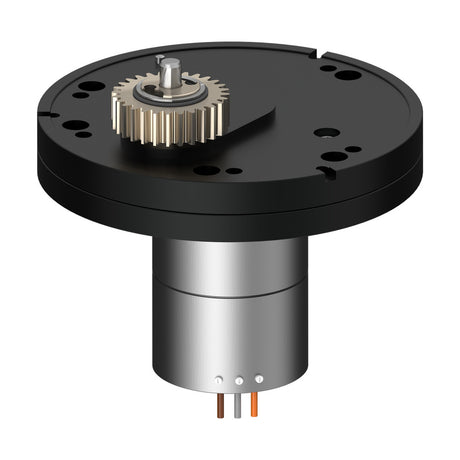

E60 475-160-01 473-630-02 162-047, 5x M10x40
E66 475-166-01 473-630-02 162-047, 5x M10x40

Drilling templates: E40 597-510 (597-509 not to be used!), E46/E52 597-511, E60/E66 597-512. Winch tool 473-010 included.

Deck Fasteners (not supplied)

Winch Fasteners Marking drill Through deck Tap drill
E40 5 pcs socket head M6 Ø 6,5 mm Ø 7 mm Ø 5,0 mm
E46, E52 5 pcs socket head M8 Ø 8,5 mm Ø 9 mm Ø 6,8 mm
E60, E66 5 pcs socket head M10 Ø 10,5 mm Ø 11 mm Ø 8,5 mm

Marine grade stainless; the installer rates them for the winch loads. Line entry 5-10°.

Mounting the E-Winch

  1. Mark the centre from the template and cut the large hole: Selden recommends a ø 102-105 mm hole saw.
  2. Feed cables and motor pack through; remove top cover (winch tool), self-tailing arm, locator bracket and drum, leaving the roller bearings on the base.
  3. Set the S-winch base on the motor pack, orient it for the load side, then lift the base off without moving the motor pack.
  4. Mark the fastening holes using the motor pack as template; drill, countersink the tops, tap if threading.
  5. Seal fasteners and the motor-pack contact face with a non-hardening compound (e.g. Butyl) – no glue.
  6. Fit the motor pack (hold the screws, turn the nuts); bolt the winch base to it with the supplied fasteners.
  7. Refit drum, locator bracket and arm with the line stripper captive under the arm; tighten the top cover with the winch tool.
  8. Connect the three motor-pack cables (grey, brown, orange) to the terminals marked on the MCU. Use the correct MCU for that winch.

Electric

  • 2-3 turns, then over the arm into the jaws.
  • Button "1" low speed, "2" intermediate, "1" + "2" high speed.
  • Turn off SEL-Bus power when not in use; fit an easily reached emergency stop.

Manual

  • Works as a full 2-speed S-winch, powered or not.
  • Handle anti-clockwise = high gear; clockwise = low gear.

Trouble Shooting

Problem Cause Action
Loss of self-tailing Line not seated; too few turns; wrong line size Re-seat the line; add turns; use the line size in the data table
Not ratcheting Ratchet gears reassembled wrongly; maintenance due Flip the ratchet gears to match pawl engagement; service the winch
No response to push-buttons Power off, emergency stop, SEL-Bus main fuse or network fuses, SEL-Bus error, faulty installation Switch on; reset the stop; check fuses and the MCU/PSU LED codes; check cables and button configuration (597-275)

Yearly S-Winch Service

  1. Remove top cover, arm, locator bracket and drum (bearings stay on the base).
  2. Remove roller bearings, drum washer and drive shaft (O-ring friction lock), then the two gear shafts and gear assemblies – mind the washers.
  3. Clean in white spirits; oil the pawls, lightly grease gear teeth and small hubs; grease shafts and the drum's internal gear.
  4. Do not grease the roller bearings. Reassemble with the line stripper captive.

Yearly Motor Pack Service

  1. Remove the winch base from the motor pack.
  2. Remove locking ring, washer, gear, pawls and springs; then the top-plate fastener and top plate.
  3. Remove the ratchet hub (and shaft on E46-E66 – not on the E40). No degreaser on parts left in the base plate.
  4. Grease shaft and gears generously, refit the top plate; oil the pawls (not grease). Replace a deformed locking ring.

Extended motor-pack maintenance every five years by a technician: manual 597-990.

Spare Parts

Art. No. Description Size
162-061-10R Fastener kit, S-winch to motor pack (4x M8x35) E40
162-061-11R Fastener kit (5x M8x35) E46/E52
162-047-10R Fastener kit (5x M10x40) E60/66
473-430-10R Pawl and washer kit (motor pack) E40
473-530-10R Pawl and washer kit (motor pack) E46/E52
473-630-10R Pawl and washer kit (motor pack) E60/E66
Art. No. Description Size
470-029-11R Gear service kit S30/40 View part →

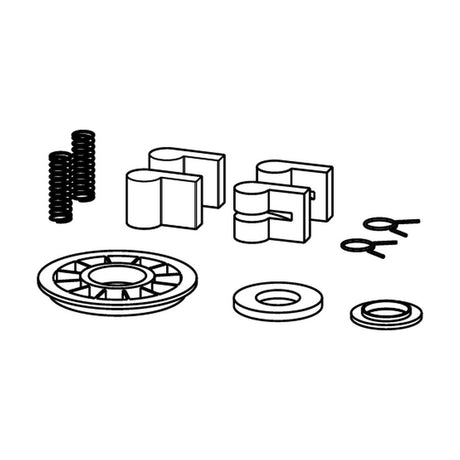

470-029-12R Gear service kit S46/52 View part →

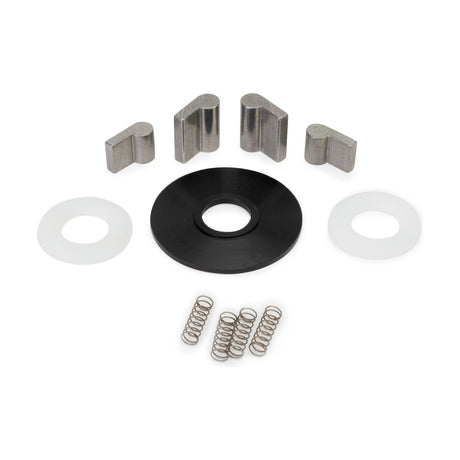

472-005-11R Gear service kit S60/66 View part →
473-315-01R Gear shaft S30 Ask us to source it →
473-415-01R Gear shaft S40 Ask us to source it →
473-516-01R Gear shaft S46/52 Ask us to source it →
473-615-01R Gear shaft S60/66 Ask us to source it →
473-314R Top cover S30 View part →

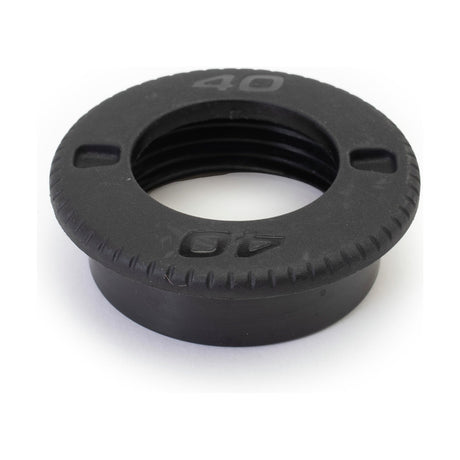

473-414R Top cover S40 View part →

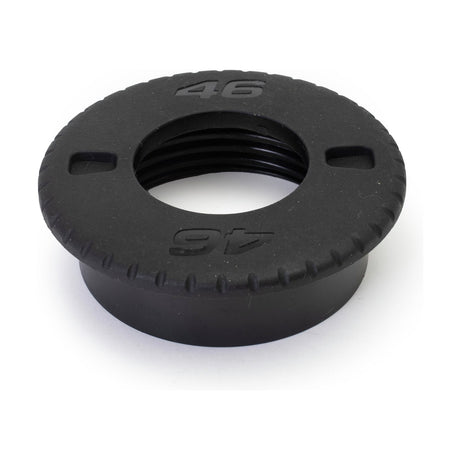

473-524R Top cover S46 View part →

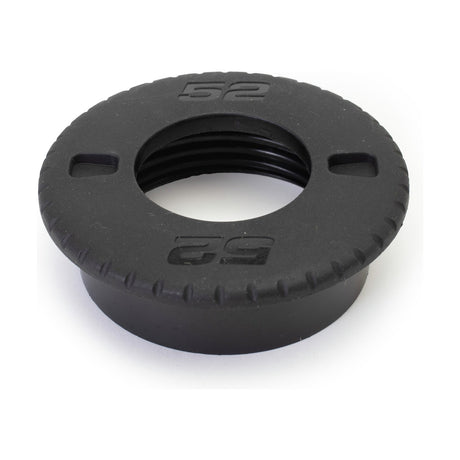

473-514R Top cover S52 View part →
473-624R Top cover S60 View part →

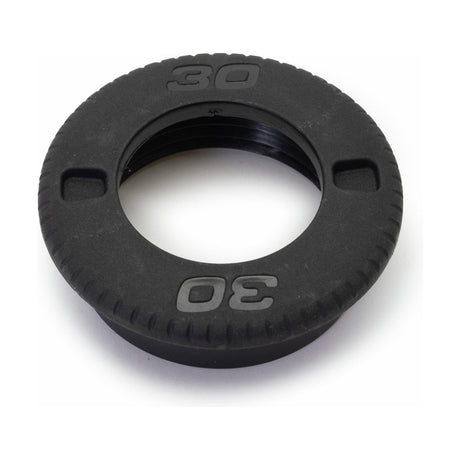

473-614R Top cover S66 View part →
473-413R Self-tailing arm S30/40 Ask us to source it →
473-513R Self-tailing arm S46/52 View part →

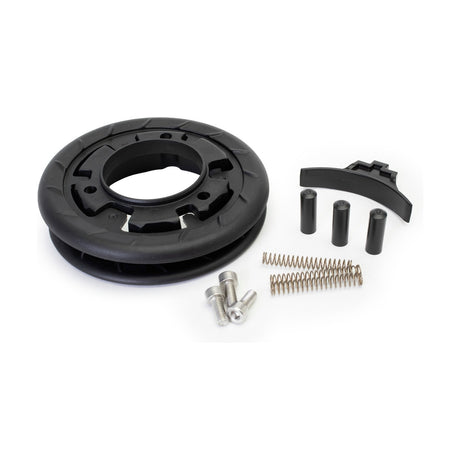

473-613R Self-tailing arm S60/66 View part →
473-412R Locator bracket S30/40 Ask us to source it →
473-512R Locator bracket S46/52 Ask us to source it →
473-612R Locator bracket S60/66 Ask us to source it →
473-548-10R Bearing kit S30/40 Ask us to source it →
473-547-10R Bearing kit S46/52 Ask us to source it →
473-549-10R Bearing kit S60/66 Ask us to source it →
473-429-10R Self-tailing jaws kit S30/40 View part →

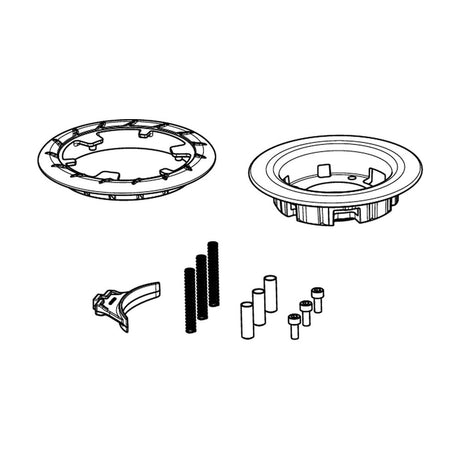

473-525-10R Self-tailing jaws kit S46/52 View part →

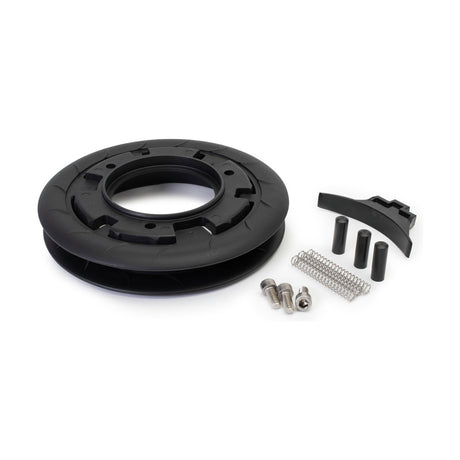

473-625-10R Self-tailing jaws kit S60/66 View part →
473-321-10R 2-speed gear S30 Ask us to source it →
473-421-10R 2-speed gear S40 Ask us to source it →
473-522-10R 2-speed gear S46 Ask us to source it →
473-521-10R 2-speed gear S52 Ask us to source it →
473-622-10R 2-speed gear S60 Ask us to source it →
473-621-10R 2-speed gear S66 Ask us to source it →
320-089-10R Drive gear S30 Ask us to source it →
320-075-10R Drive gear S40 Ask us to source it →
320-076-10R Drive gear S46/52 Ask us to source it →
320-077-10R Drive gear S60/66 Ask us to source it →
473-427R Line stripper S30/40 Ask us to source it →
473-527R Line stripper S46/52 Ask us to source it →
473-627R Line stripper S60/66 Ask us to source it →

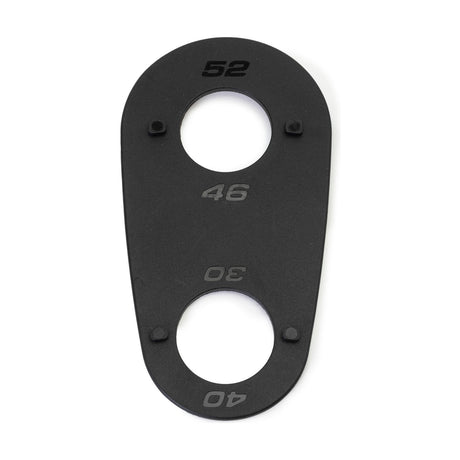

473-010R Winch tool S30/40, S46/52, S60/66 View part →
Art. No. Optional part
474-501-10 10" Race GRIP winch handle View part →

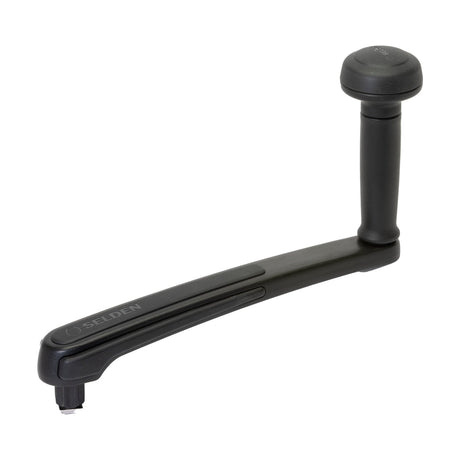

474-401-10 8" Race GRIP winch handle View part →
474-301-10 10" STANDARD winch handle View part →

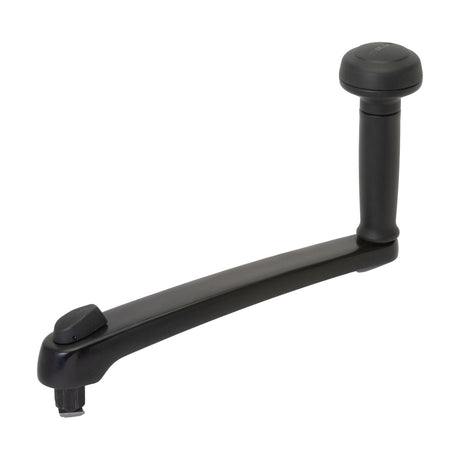

474-201-10 8" STANDARD winch handle View part →
312-501 Selden lubrication grease View part →
312-709-01 Pawl oil (50 ml) View part →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
