Selden Furlex 200S & 300S — Owner's Manual

This manual is split into 3 pages: Part 1 → · Part 2 · Part 3 →

Wire Terminal, Toggle & Rigging Screw Parts

Part No. Item Description Dimension Fits
301-601-11 B23–B32 Terminal assembly 200 S Ø6 Ask us to source it →
301-602-11 B23–B32 Terminal assembly 200 S Ø7 Ask us to source it →
301-603-11 B23–B32 Terminal assembly 200 S Ø8 Ask us to source it →
301-604-11 B23–B32 Terminal assembly 300 S Ø8 Ask us to source it →
301-605-11 B23–B32 Terminal assembly 300 S Ø10 Ask us to source it →
539-518 B22 Distance bearing (not used with rigging screw) Ø36/6,6x120 200 S Ø6 View part →
539-519 B22 Distance bearing (not used with rigging screw) Ø36/7,7x120 200 S Ø7 View part →
539-520 B22 Distance bearing (not used with rigging screw) Ø36/8,8x120 200 S Ø8 View part →
539-284 B22 Distance bearing (not used with rigging screw) Ø41/8,6x125 300 S Ø8 View part →
539-288 B22 Distance bearing (not used with rigging screw) Ø41/10,6x125 300 S Ø10 View part →
301-601 B23 Terminal part Ø36x106 200 S Ø6 Ask us to source it →
301-602 B23 Terminal part Ø36x109 200 S Ø7 Ask us to source it →
301-603 B23 Terminal part Ø36x104 200 S Ø8 Ask us to source it →
301-604 B23 Terminal part Ø42x124 300 S Ø8 Ask us to source it →
301-605 B23 Terminal part Ø42x125 300 S Ø10 Ask us to source it →
301-194 B24 Socket (Sta-Lok) Wire Ø6 200 S Ø6 View part →
301-195 B24 Socket (Sta-Lok) Wire Ø7 200 S Ø7 View part →
301-196 B24 Socket (Sta-Lok) Wire Ø8 200 S Ø8, 300 S Ø8 View part →
301-197 B24 Socket (Sta-Lok) Wire Ø10 300 S Ø10 View part →
301-152 B25 Wedge L=33 200 S Ø6 View part →
301-153 B25 Wedge L=36 200 S Ø7 View part →
301-154 B25 Wedge L=42 200 S Ø8, 300 S Ø8 View part →
301-155 B25 Wedge L=50 300 S Ø10 View part →
301-157 B26 Former Ø13,4 200 S Ø6 View part →
301-158 B26 Former Ø14,8 200 S Ø7 View part →
301-159 B26 Former Ø16,3 200 S Ø8, 300 S Ø8 View part →
301-163 B26 Former Ø19,2 300 S Ø10 View part →
517-046 B27 Toggle fork/fork H (c/c) 40 200 S Ø6 Ask us to source it →
517-047 B27 Toggle fork/fork H (c/c) 40 200 S Ø7 Ask us to source it →
517-048 B27 Toggle fork/fork H (c/c) 50 200 S Ø8, 300 S Ø8 Ask us to source it →
517-060 B27 Toggle fork/fork H (c/c) 55 300 S Ø10 Ask us to source it →
517-046-01 B27, B31–B32 Toggle with clevis pin and split pin, assembly 200 S Ø6 View part →
517-047-01 B27, B31–B32 Toggle with clevis pin and split pin, assembly 200 S Ø7 View part →
517-048-01 B27, B31–B32 Toggle with clevis pin and split pin, assembly 200 S Ø8, 300 S Ø8 View part →
517-060-03 B27, B31–B32 Toggle with clevis pin and split pin, assembly 300 S Ø10 View part →
517-046-02 B27–B32 Toggle with all pins and washers, assembly 200 S Ø6 View part →
517-047-02 B27–B32 Toggle with all pins and washers, assembly 200 S Ø7 View part →
517-048-02 B27–B32 Toggle with all pins and washers, assembly 200 S Ø8, 300 S Ø8 View part →
517-060-04 B27–B32 Toggle with all pins and washers, assembly 300 S Ø10 View part →

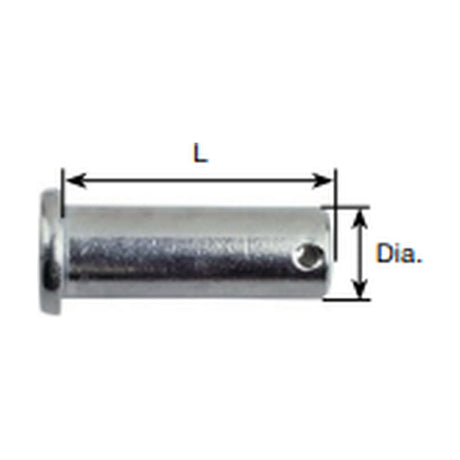

165-409 B28 Clevis pin Ø12x37 200 S Ø6, 200 S Ø7 View part →
165-503 B28 Clevis pin Ø14x49 200 S Ø8, 300 S Ø8 View part →
165-552 B28 Clevis pin Ø16x50 300 S Ø10 View part →
164-404 B29 Washer Ø24/13-2,5 200 S Ø6, 200 S Ø7 Ask us to source it →
164-420 B29 Washer Ø24/14-2 200 S Ø8, 300 S Ø8 Ask us to source it →
164-410 B29 Washer Ø30/17-3 300 S Ø10 Ask us to source it →
301-049 B30, B32 Split pin Ø2,9x16 200 S Ø6 View part →
301-050 B30, B32 Split pin Ø2,9x18 200 S Ø7 View part →
301-053 B30, B32 Split pin Ø3,7x20 200 S Ø8, 300 S Ø8, 300 S Ø10 View part →
165-202 B31 Clevis pin Ø10x22 200 S Ø6 View part →
165-401 B31 Clevis pin Ø12x25 200 S Ø7 View part →
165-501 B31 Clevis pin Ø14x31 200 S Ø8, 300 S Ø8 View part →
165-560 B31 Clevis pin Ø16x34 300 S Ø10 View part →
174-536-11 B47 Rigging screw 200 S Ø6 Ask us to source it →
174-537-11 B47 Rigging screw 200 S Ø7 Ask us to source it →
174-538-11 B47 Rigging screw 200 S Ø8 Ask us to source it →
174-519-11 B47 Rigging screw 300 S Ø8 Ask us to source it →
174-520-11 B47 Rigging screw 300 S Ø10 Ask us to source it →

Forestay wire size is marked on the terminal part (B23), or on the upper part when a rigging screw is used.

Selden Furlex 200S/300S lower swivel with rigging screw parts drawing

Line Drum, Line Guard & Line Guide Parts

Part No. Item Description Dimension Fits
539-557-02 B40–B44 Line drum half with labels, assembly 200 S Ask us to source it →
539-250-02 B40–B44 Line drum half with labels, assembly 300 S Ask us to source it →
539-557-04 – Complete line drum 200 S View part →
539-250-03 – Complete line drum 300 S View part →
539-557 B40 Line drum half Ø180x111 200 S Ask us to source it →
539-250 B40 Line drum half Ø210x156 300 S Ask us to source it →
591-369 B44 Label 21x170 200 S Ask us to source it →
591-358 B44 Label 27x204 300 S Ask us to source it →
539-256 B45 Furling line lock 22x27 200 S, 300 S Ask us to source it →
539-256-02 – Line lock kit (595-162-E) 200 S Ask us to source it →
539-256-03 – Line lock kit (595-162-E) 300 S Ask us to source it →
162-029 B46 Screw MFT 5x16 200 S Ask us to source it →
162-026 B46 Screw MFT 5x20 300 S Ask us to source it →
539-559-01 C Line guard bracket assembly 200 S View part →
539-259-01 C Line guard bracket assembly 300 S View part →
539-559-02 C1, C6–C7 Line guard bracket with screw and nut, assembly 200 S View part →
539-259-02 C1, C6–C7 Line guard bracket with screw and nut, assembly 300 S View part →
539-559 C1 Line guard bracket 190x82 200 S Ask us to source it →
539-259 C1 Line guard bracket 211x30 300 S Ask us to source it →
539-580-01 C3–C10 Cover, assembly 200 S View part →
539-280-01 C3–C10 Cover, assembly 300 S View part →
539-580 C3 Cover Ø182-78 200 S Ask us to source it →
539-280 C3 Cover Ø200-96 300 S Ask us to source it →
539-571 C4 Line guard 132x78 200 S Ask us to source it →
539-271 C4 Line guard 159x97 300 S Ask us to source it →
539-028 C5 Line guard saver 9/8-77 200 S Ask us to source it →
539-225 C5 Line guard saver 9/8-95 300 S Ask us to source it →
155-623 C6 Screw MRT 6x14 200 S, 300 S View part →
158-005 C7, C25 Locking nut M6 200 S, 300 S Ask us to source it →
167-030 C8 Pop rivet Ø4,8x11,2 200 S, 300 S View part →
164-426 C9 Washer Ø10/5,3-1 200 S, 300 S Ask us to source it →
591-368 C10 Label 22x210 200 S Ask us to source it →
591-359 C10 Label 28x238 300 S Ask us to source it →
539-577-01 C11–C12 Lock block, assembly 200 S View part →
539-277-01 C11–C12 Lock block, assembly 300 S View part →
539-577 C11 Lock block 42x24 200 S Ask us to source it →
539-277 C11 Lock block 54x30 300 S Ask us to source it →
539-279 C12 Disc Ø15x2,5 200 S, 300 S Ask us to source it →
539-560-01 C21–C25 Line guide fitting, assembly 200 S View part →
539-260-01 C21–C25 Line guide fitting, assembly 300 S View part →
539-560 C21 Line guide fitting 114x60 200 S Ask us to source it →
539-260 C21 Line guide fitting 190x145 300 S Ask us to source it →
155-609 C22 Screw MRT 6x10 200 S View part →
155-613 C22 Screw MRT 6x12 300 S View part →
164-053 C23 Retaining washer M6 200 S, 300 S Ask us to source it →
155-801 C24 Screw MRT 6x40 200 S View part →
155-805 C24 Screw MRT 8x50 300 S View part →
158-006 C25 Locking nut M8 300 S Ask us to source it →

MkI drum half 539-257-01/-02 (300 S) is replaced by the complete drum 539-250-03.

Selden Furlex 200S/300S line drum half parts drawing

Selden Furlex 200S/300S line guard bracket and line guide fitting parts drawing

Luff Extrusion Parts

Part No. Item Description Dimension Fits
539-563-01 D1–D4, D8 Luff extrusion 1000 mm, assembly 200 S View part →
539-263-01 D1–D4, D8 Luff extrusion 1000 mm, assembly 300 S View part →
539-563 D1 Luff extrusion 31/21 L=1000 200 S Ask us to source it →
539-263 D1 Luff extrusion 39/27 L=1000 300 S Ask us to source it →
539-567-02 D2–D3 Long joint sleeve with insulator, assembly 200 S Ask us to source it →
539-267-02 D2–D3 Long joint sleeve with insulator, assembly 300 S Ask us to source it →
539-567 D2 Joint sleeve 17/14 L=1150 200 S Ask us to source it →
539-267 D2 Joint sleeve 17/17 L=1200 300 S Ask us to source it →
539-538 D3 Insulator L=1150 200 S Ask us to source it →
539-238 D3 Insulator L=1200 300 S Ask us to source it →
166-211 D4 Pin Ø5x20 200 S View part →
166-212 D4 Pin Ø5x25 300 S View part →
539-598-01 D5–D7 Sail feeder, assembly 200 S View part →
539-298-01 D5–D7 Sail feeder, assembly 300 S View part →
539-598 D5 Sail feeder 50x22 200 S Ask us to source it →
539-298 D5 Sail feeder 75x40 300 S Ask us to source it →
539-599 D6 Sail feeder connector 50x22 200 S Ask us to source it →
539-299 D6 Sail feeder connector 75x40 300 S Ask us to source it →
155-959 D7 Screw MCS 4x8 200 S, 300 S Ask us to source it →
539-562 D8 Connecting plate 108x11 200 S View part →
539-262 D8 Connecting plate 146x13 300 S View part →
539-564-01 D9–D11 Luff extrusion 2000 mm, assembly 200 S View part →
539-264-01 D9–D11 Luff extrusion 2000 mm, assembly 300 S View part →
539-564 D9 Luff extrusion 31/21 L=2000 200 S Ask us to source it →
539-264 D9 Luff extrusion 39/27 L=2000 300 S Ask us to source it →
539-589 D10 Distance tube 17/15 L=1800 200 S Ask us to source it →
539-289 D10 Distance tube 17/17 L=1750 300 S Ask us to source it →
539-561 D11, D16 Connecting plate 58x11 200 S View part →
539-261 D11, D16 Connecting plate 74x13 300 S View part →
539-565-06 D12–D16 Luff extrusion 2400 mm, assembly 200 S View part →
539-265-06 D12–D16 Luff extrusion 2400 mm, assembly 300 S View part →
539-565 D12 Luff extrusion 31/21 L=2400 200 S Ask us to source it →
539-265 D12 Luff extrusion 39/27 L=2400 300 S Ask us to source it →
539-566-01 D13–D14 Joint sleeve with insulator, assembly 200 S Ask us to source it →
539-266-01 D13–D14 Joint sleeve with insulator, assembly 300 S Ask us to source it →
539-566 D13 Joint sleeve 17/14 L=200 200 S Ask us to source it →
539-266 D13 Joint sleeve 17/17 L=250 300 S Ask us to source it →
539-537 D14 Insulator L=200 200 S Ask us to source it →
539-237 D14 Insulator L=250 300 S Ask us to source it →
539-590 D15 Distance tube 17/15 L=2200 200 S Ask us to source it →
539-290 D15 Distance tube 17/17 L=2150 300 S Ask us to source it →

Selden Furlex 200S/300S luff extrusions parts drawing

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
