Selden Furlex 400S & 500S — Owner's Manual

This manual is split into 2 pages: Part 1 → · Part 2

Wire Terminal, Toggle & Rigging Screw Parts

Part No. Item Description Dimension Fits
301-606-11 B20–B23 Terminal assembly 400 S Ø12 Ask us to source it →
301-607-11 B20–B23 Terminal assembly 400 S Ø14 Ask us to source it →
301-608-11 B20–B23 Terminal assembly 500 S Ø16 Ask us to source it →
301-606-01 B20–B23 Terminal part with socket, wedge and former (only as assembly) 400 S Ø12 Ask us to source it →
301-607-01 B20–B23 Terminal part with socket, wedge and former (only as assembly) 400 S Ø14 Ask us to source it →
301-608-01 B20–B23 Terminal part with socket, wedge and former (only as assembly) 500 S Ø16 Ask us to source it →
301-606 B20 Terminal part Ø63x193 400 S Ø12 Ask us to source it →
301-607 B20 Terminal part Ø63x190 400 S Ø14 Ask us to source it →
301-608 B20 Terminal part Ø63x190 500 S Ø16 Ask us to source it →
301-610 B21 Socket Ø36x58 400 S Ø12 Ask us to source it →
301-611 B21 Socket Ø38x65 400 S Ø14 Ask us to source it →
301-612 B21 Socket Ø44x76 500 S Ø16 Ask us to source it →
301-156 B22 Wedge L=65 400 S Ø12 View part →
301-162 B22 Wedge L=77 400 S Ø14 View part →
301-613 B22 Wedge L=86 500 S Ø16 View part →
301-164 B23 Former Ø24.8 400 S Ø12 View part →
301-165 B23 Former Ø31 400 S Ø14 View part →
301-614 B23 Former Ø34 500 S Ø16 View part →
517-052 B24 Toggle fork/fork H (c/c) 65 400 S Ø12 Ask us to source it →
517-053 B24 Toggle fork/fork H (c/c) 80 400 S Ø14 Ask us to source it →
517-074 B24 Toggle fork/fork H (c/c) 85 500 S Ø16 Ask us to source it →
517-052-01 B24, B28–B29 Toggle with clevis pin and split pin, assembly 400 S Ø12 View part →
517-053-01 B24, B28–B29 Toggle with clevis pin and split pin, assembly 400 S Ø14 View part →
517-074-01 B24, B28–B29 Toggle with clevis pin and split pin, assembly 500 S Ø16 View part →
517-052-02 B24–B29 Toggle with all pins and washers, assembly 400 S Ø12 View part →
517-053-02 B24–B29 Toggle with all pins and washers, assembly 400 S Ø14 View part →
517-074-02 B24–B29 Toggle with all pins and washers, assembly 500 S Ø16 View part →
165-582 B25 Clevis pin Ø19x60 400 S Ø12 View part →
165-595 B25, B28 Clevis pin Ø22x60 400 S Ø14, 500 S Ø16 View part →
165-586 B25 Clevis pin Ø25x80 500 S Ø16 View part →
164-421 B26 Washer Ø36/20-3 400 S Ø12 Ask us to source it →
164-422 B26 Washer Ø39/23-3 400 S Ø14 Ask us to source it →
164-449 B26 Washer Ø45/26-4 500 S Ø16 Ask us to source it →
301-054 B27, B29 Split pin Ø4.6x28 400 S, 500 S View part →
301-057 B27 Split pin Ø5.9x37 500 S View part →
165-581 B28 Clevis pin Ø19x42 400 S Ø12 View part →
165-594 B28 Clevis pin Ø22x49 400 S Ø14 View part →
174-523-02 B30 Rigging screw 400 S Ø12 Ask us to source it →
174-524-02 B30 Rigging screw 400 S Ø14 Ask us to source it →
174-525-02 B30 Rigging screw 500 S Ø16 Ask us to source it →
174-523-11 B30, B24–B29 Rigging screw with toggle, assembly 400 S Ø12 Ask us to source it →
174-524-11 B30, B24–B29 Rigging screw with toggle, assembly 400 S Ø14 Ask us to source it →
174-525-11 B30, B24–B29 Rigging screw with toggle, assembly 500 S Ø16 Ask us to source it →

Forestay wire size is marked on the terminal part (B20), or on the upper part when a rigging screw is used.

Selden Furlex 400S/500S lower swivel terminal and toggle parts drawing

Selden Furlex 400S/500S rigging screw parts drawing

Line Drum, Line Guard & Line Guide Parts

Part No. Item Description Dimension Fits
539-157-01 B40–B44 Line drum half, assembly 400 S View part →
539-157-06 B40–B44 Line drum half, assembly 500 S View part →
539-157 B40 Line drum half (only as assembly) 250x177 400 S, 500 S Ask us to source it →
591-536 B40 Label 240x120 400 S Ask us to source it →
591-551 B40 Label 240x120 500 S Ask us to source it →
162-033 B43 Screw MFT 8x16 400 S, 500 S Ask us to source it →
164-032 B44 Retaining washer Ø16/8-2 400 S, 500 S Ask us to source it →
539-159-01 C Line guard bracket assembly 400 S, 500 S View part →
539-159-02 C1, C5–C6 Line guard bracket with screws and nuts, assembly 400 S, 500 S View part →
539-159 C1 Line guard bracket 250x130 400 S, 500 S Ask us to source it →
539-180-01 C2–C9 Cover, assembly 400 S, 500 S View part →
539-180 C2 Cover Ø255x122 400 S, 500 S Ask us to source it →
539-171 C3 Line guard 176x126 400 S, 500 S Ask us to source it →
539-120 C4 Line guard saver 9/8-124 400 S, 500 S Ask us to source it →
155-610 C5 Screw MRT 6x16 400 S, 500 S View part →
158-005 C6 Locking nut M6 400 S, 500 S Ask us to source it →
167-031 C7 Pop rivet Ø6.4x12,7 400 S, 500 S View part →
164-407 C8 Washer Ø12/6-1.6 400 S, 500 S Ask us to source it →
591-538 C9 Label 44x268 400 S, 500 S Ask us to source it →
539-177-01 C10–C11 Lock block, assembly 400 S, 500 S View part →
539-177 C10 Lock block 87x63 400 S, 500 S Ask us to source it →
164-437 C11 Washer Ø18/6-1.8 400 S, 500 S Ask us to source it →
539-160-01 C21–C24 Line guide fitting, assembly 400 S, 500 S View part →
539-160 C21 Line guide fitting 220x178 400 S, 500 S Ask us to source it →
153-068 C22 Screw MC6S 10x50 400 S, 500 S Ask us to source it →
155-613 C23 Screw MRT 6x12 400 S, 500 S View part →
164-053 C24 Retaining washer Ø12/6-1.5 400 S, 500 S Ask us to source it →

Selden Furlex 400S/500S line drum half parts drawing

Selden Furlex 400S/500S line guard bracket and line guide fitting parts drawing

Luff Extrusion Parts

Part No. Item Description Dimension Fits
539-163-01 D1–D5, D8 Lower luff extrusion 1000 mm, assembly 400 S View part →
539-424-01 D1–D5, D8 Lower luff extrusion 1000 mm, assembly 500 S View part →
539-163 D1 Luff extrusion 48/34 L=1000 400 S Ask us to source it →
539-424 D1 Luff extrusion 60/46 L=1000 500 S Ask us to source it →
536-167-01 D2–D3 Long joint sleeve with insulator, assembly (number as printed) 400 S Ask us to source it →
539-167 D2 Joint sleeve 36/29 L=1195 400 S Ask us to source it →
539-428 D2 Joint sleeve 42/39 L=1120 500 S Ask us to source it →
539-195 D3 Insulator L=1225 400 S Ask us to source it →
539-192 D4 Bearing plug 30x30 400 S Ask us to source it →
539-193 D4 Bearing plug 50x40 500 S Ask us to source it →
306-563 D5 Bush Ø10/8-9 400 S Ask us to source it →
306-562 D5 Bush Ø12/10-12 500 S Ask us to source it →
539-168-01 D6–D7 Sail feeder, assembly 400 S View part →
539-168 D6 Sail feeder 75x36 400 S Ask us to source it →
539-169 D7 Sail feeder connector 75x36 400 S Ask us to source it →
539-262 D8 Connecting plate 146x13 400 S View part →
539-410 D8, D11, D16 Connecting plate 100x14 500 S View part →
539-164-01 D9–D11 Luff extrusion 1700 mm (400 S) / 2000 mm (500 S), assembly 400 S Ask us to source it →
539-426-01 D9–D11 Luff extrusion 1700 mm (400 S) / 2000 mm (500 S), assembly 500 S View part →
539-174 D9 Luff extrusion 48/34 L=1700 400 S Ask us to source it →
539-426 D9 Luff extrusion 60/46 L=2000 500 S Ask us to source it →
539-175 D10 Distance tube 30/28 L=1400 400 S Ask us to source it →
535-677 D10 Distance tube 35/19 L=1700 500 S Ask us to source it →
539-261 D11, D16 Connecting plate 74x13 400 S View part →
539-165-05 D12–D16 Luff extrusion 2400 mm (400 S) / 4800 mm (500 S), assembly 400 S View part →

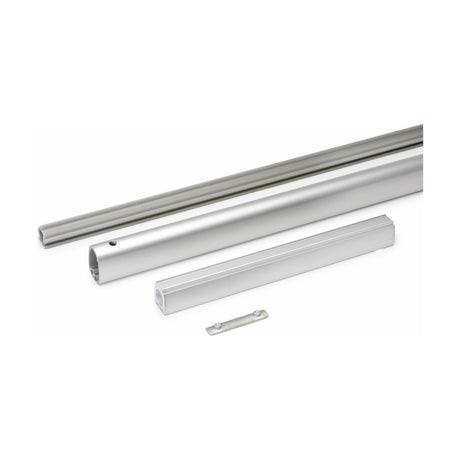

539-423-10 D12–D16 Luff extrusion 2400 mm (400 S) / 4800 mm (500 S), assembly 500 S View part →
539-165 D12 Luff extrusion 48/34 L=2400 400 S Ask us to source it →
539-423 D12 Luff extrusion 60/46 L=4800 500 S Ask us to source it →
539-166-01 D13–D14 Joint sleeve with insulator, assembly 400 S Ask us to source it →
539-166 D13 Joint sleeve 36/29 L=300 400 S Ask us to source it →
539-427 D13 Joint sleeve 42/39 L=300 500 S Ask us to source it →
539-194 D14 Insulator L=300 400 S Ask us to source it →
539-190 D15 Distance tube 30/28 L=2100 400 S Ask us to source it →
535-676 D15 Distance tube 35/19 L=4500 (2 per extrusion) 500 S Ask us to source it →

Selden Furlex 400S/500S luff extrusions parts drawing

Additional Items

Part No. Item Description Dimension Fits
601-009-51 E1 Forestay wire pack L=20400 400 S Ø12 View part →
601-009-52 E1 Forestay wire pack L=22800 400 S Ø12 View part →
601-010-51 E1 Forestay wire pack L=20400 400 S Ø14 View part →
601-010-52 E1 Forestay wire pack L=22800 400 S Ø14 View part →
601-013-07 E1 Forestay wire pack L=23000 500 S Ø16 Ask us to source it →
601-013-08 E1 Forestay wire pack L=27800 500 S Ø16 Ask us to source it →
539-191 E2 Top bearing 32/28 L=200 400 S Ask us to source it →
535-680 E2 Top bearing 39/17 L=160 500 S Ask us to source it →
306-916 E3 Bush Ø22/13-30 400 S Ø12 Ask us to source it →
306-917 E3 Bush Ø22/16-30 400 S Ø14 Ask us to source it →
306-909 E3 Bush Ø25/19-30 500 S Ø16 Ask us to source it →
164-016 E4 Washer Ø30/17-3 500 S Ask us to source it →

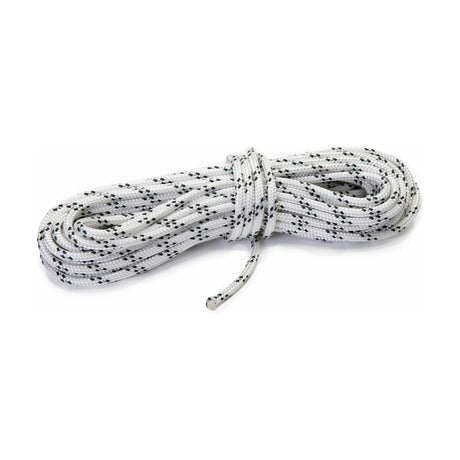

612-036-01 E5 Furling line Ø12 L=40000 400 S, 500 S View part →
508-128-03 E6–E8, E19 Halyard lead set 400 S Ask us to source it →
508-128 E6 Halyard lead Ø20-57 400 S View part →
155-703 E7 Self-tapping screw MRX TT 6x12 400 S View part →
530-627 E8 Insulator 60x54 400 S Ask us to source it →
538-210-01 E9 Stanchion block For Ø25/30 400 S View part →
538-210-02 E9 Stanchion block For Ø25/30 500 S Ask us to source it →
312-305 E10 Locking adhesive ≈ 10g 400 S, 500 S View part →
312-501 E11 Lubricating grease ≈ 100g 400 S, 500 S View part →
539-186-01 E12–E13 Top guard with screw, package 400 S View part →
539-408-01 E12–E13 Top guard with screw, package 500 S View part →
539-186 E12 Top guard Ø65x80 400 S Ask us to source it →
539-408 E12 Top guard Ø80x80 500 S Ask us to source it →
171-017 E13 Screw RXS 4.8x13 / RXS 4,8x13 400 S, 500 S Ask us to source it →
592-087 E16 Torx bit set T15/20/25/30/40/45 400 S, 500 S Ask us to source it →
592-006 E19 Drill bit Ø5.3 400 S Ask us to source it →

Selden Furlex 400S/500S additional items parts drawing

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
