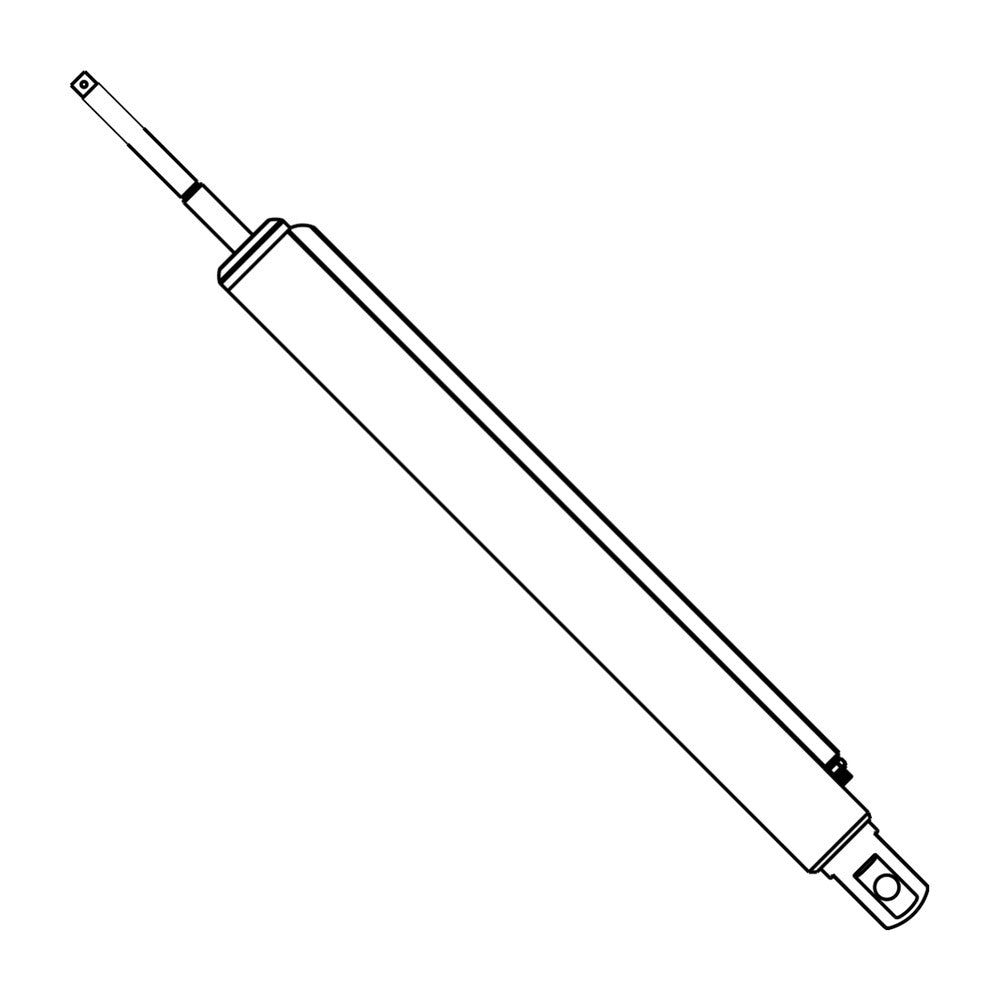

Selden HYDR.TENSIONER W12/14 NAT

SKU: SEL580-007-10  |  Manuf. Code: 580-007-10
$2,270.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

FEATURES

  • Model: HT-W12/14.
  • Upper Terminal: stud.
  • Color: silver.
  • Thread size: 7/8"-LH.
  • Pin diam: 22 mm (0.87 in).
  • Length min: 912 mm (35.91 in).
  • Length max: 1,392 mm (54.8 in).
  • WCLReduct: 1,296 mm (51.02 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelHT-W12/14HT-W12/14
Upper Terminalstudstud
Colorsilversilver
Thread size7/8"-LH7/8"-LH
Pin diam0.87 in22 mm
Length min35.91 in912 mm
Length max54.8 in1,392 mm
WCLReduct51.02 in1,296 mm
Max Wire Size1414
Max Rod Size-40-40
Stroke18.9 in480 mm
X0.87 in22 mm
Y1.77 in45 mm
Z1.5 in38 mm
SWL18,739.27 lb8,500 kg
Weight27.70 lb.12.56 kg.
Safe Working Load18739.27 lb.8500.00 kg.
Length35.91 in.912.00 mm.
