Selden Hydraulic In-Mast Furling RC, RD & RD+ — Spare Parts List
PARTS LIST
How to tell the Selden hydraulic in-mast furling RC, RD and RD+ apart, and the complete spare parts lists for swivels, luff extrusion, tack assemblies, cardan shafts and drive units, with exploded views.
DocumentSelden Hydraulic In-Mast Furling RC, RD & RD+ Spare Parts List
FormatPDF · 25 pages · 3.9 MB
LanguageEnglish
This manual is split into 2 pages: Part 1 · Part 2 →
Which System Do You Have?
| Type | Mast section |
|---|---|
| RC | F265, F286, F305 |
| RC with cardan shaft | F324 |
| RD | F324, F370, F406 |
| RD+ | F406 |
The sizes are easiest identified by the diameter of the luff extrusion: RC = ø38, RD = ø58. The system is made up of top swivel, luff extrusion, halyard swivel, tack assembly (with cardan shaft assembly where fitted) and drive unit.
Top Swivel & Halyard Swivel
Top swivel RC, 540-204-01
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-204-01 | Top swivel RC, complete | Ask us to source it → | |
| 540-204 | Ball bearing house half (assembly only) | ø66X105 | Ask us to source it → |
| 158-005 | Nylock nut | M6 | Ask us to source it → |
| 155-621 | Screw MRT | M6x20 | View part → |
| 539-111 | Ball bearing ring | ø52x8 | Ask us to source it → |
| 539-128 | Ball (15) | ø8 | Ask us to source it → |
| 540-207 | Ball bearing eye | ø44x69 | Ask us to source it → |
Top swivel RD and RD+, 540-304-01
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-304-01 | Top swivel RD/RD+, complete | Ask us to source it → | |
| 540-304 | Housing (assembly only) | Ø66x76 | Ask us to source it → |
| 540-305 | Shaft (assembly only) | Ø57x55 | Ask us to source it → |
| 539-128 | Ball (20) | Ø8 | Ask us to source it → |
| 540-306 | Washer | Ø60x2 | Ask us to source it → |
| 540-303 | Toggle | 55x49 | Ask us to source it → |
| 165-401 | Clevis pin | Ø12x25 | View part → |
| 301-049 | Split pin | Ø2.9x16 | Ask us to source it → |
Halyard swivel RC, 540-253-01
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-253-01 | Halyard swivel RC, complete | Ask us to source it → | |
| 539-281 | Hub halyard swivel (assembly only) | ø62-130 | View part → |
| 539-128 | Ball (54) | ø8 | Ask us to source it → |
| 539-270 | Ball bearing ring (2) | ø83/64-16 | View part → |
| 540-253 | Eye ring RC (assembly only) | ø92x155 | Ask us to source it → |

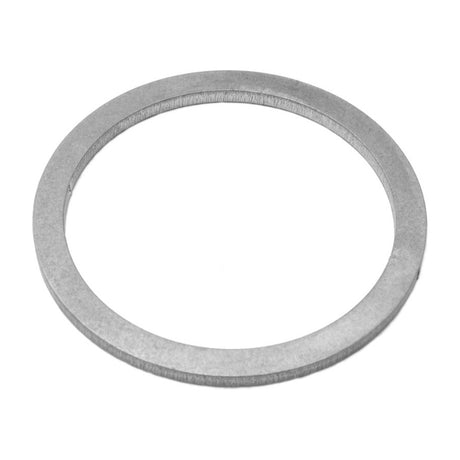

| 164-440 | Washer | ø74/62-3 | View part → |
| 301-507 | Clip ring | ø62 | Ask us to source it → |
| 540-165 | Sliding insert half starboard | 52x52 | Ask us to source it → |
| 540-166 | Sliding insert half port | 52x66 | Ask us to source it → |
| 171-047 | Self tapping screw | FTS 3.5x9.5 | Ask us to source it → |

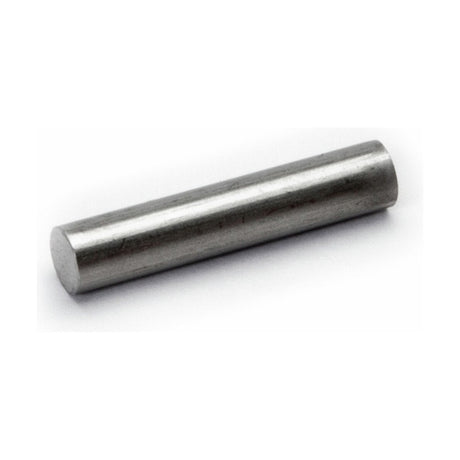

| 166-223 | Pin | ø12x42 | View part → |
| 301-525 | Split pin | ø2.9x32 | Ask us to source it → |
| 540-254 | Sliding sleeve RC (assembly only) | ø80-150 | Ask us to source it → |

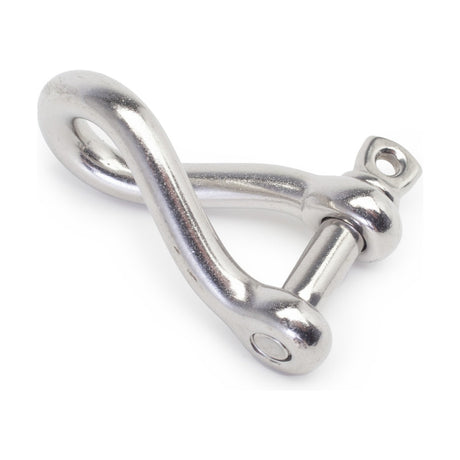

| 307-025 | Shackle | M8x16x32 | View part → |
Halyard swivel RD and RD+, 540-348-01
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-348-01 | Halyard swivel RD/RD+, complete | Ask us to source it → | |
| 540-348 | Hub (assembly only) | Ø108x162 | Ask us to source it → |
| 540-347 | Eye ring (assembly only) | Ø119x120 | Ask us to source it → |
| 539-112 | Intermediate ring (2) | Ø110x13 | Ask us to source it → |
| 539-109 | Ball bearing ring, outer (2) | Ø110x12 | Ask us to source it → |
| 539-110 | Ball bearing ring, inner (2) | Ø104x8 | Ask us to source it → |
| 539-128 | Ball (2x38) | Ø8 | Ask us to source it → |
| 164-474 | Washer | Ø108x6 | Ask us to source it → |
| 301-512 | Retaining ring | DNS-85 | Ask us to source it → |
| 540-323 | Sliding insert | 82x50x30 | Ask us to source it → |
| 153-090 | Screw | MC6S 5x45 | Ask us to source it → |
Luff Extrusion
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-217-01 | Luff extrusion RC (incl. cover) | Ø 38/38-7700 | Ask us to source it → |
| 540-215 | Joining sleeve RC | Ø 33/25-212 | Ask us to source it → |
| 167-007 | Pop rivet RC (12) | ø4.8x9.9 | Ask us to source it → |
| 319-511 | Pop rivet plug (12) | For Ø4.8 / Ø6.4 rivet | Ask us to source it → |
| 540-317-01 | Luff extrusion RD/RD+ (incl. cover) | Ø58(60)x7500 | Ask us to source it → |
| 540-315 | Joining sleeve RD/RD+ | Ø53x200 | Ask us to source it → |
| 167-004 | Pop rivet RD/RD+ (12) | Ø6.4x12.7 | Ask us to source it → |
Tack Assemblies & Cardan Shafts
Tack assembly RC, 540-230-02 (F265, F286, F305)
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-230-02 | Tack assembly RC, complete | View part → | |

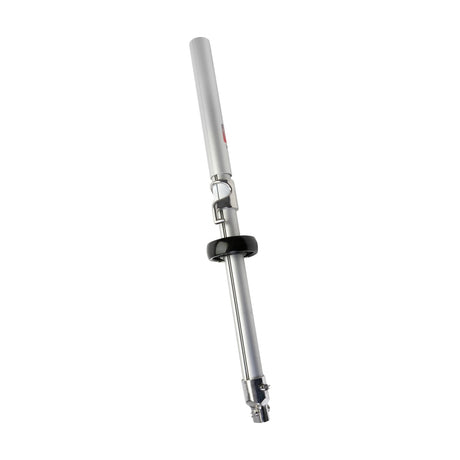

| 540-230 | Tack tube | 38/38-477 | View part → |
| 536-257 | Tack hook | ø44.5x90 | Ask us to source it → |
| 167-002 | Pop rivet | ø6.4x17.8 | Ask us to source it → |
| 319-601 | Wheel | ø 100/40-30 | Ask us to source it → |
| 301-010 | Split pin | ø3.7x50 | Ask us to source it → |
| 540-264 | Reinforcement | 32/25-414 | Ask us to source it → |
| 167-007 | Pop rivet | ø4.8x10 | Ask us to source it → |
| 319-510 | Sealing plug | For ø4.8 rivet | Ask us to source it → |
| 540-827 | Adapter | ø44-78 | Ask us to source it → |

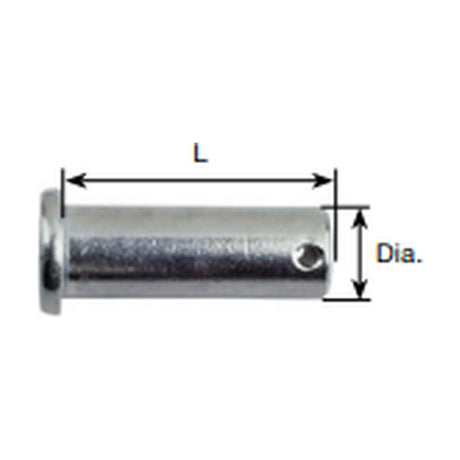

| 165-403 | Clevis pin | ø12x53 | View part → |
| 301-049 | Split pin | ø2.9x16 | Ask us to source it → |
| 153-058 | Screw MC6S | M12x60 | Ask us to source it → |
| 540-225 | Tensioning screw | ø32-177 | Ask us to source it → |
| 167-004 | Pop rivet (6) | ø6.4x12.7 | Ask us to source it → |
| 155-034 | Screw MCS | M6x22 | Ask us to source it → |
| 540-227 | Locking tube | ø44x300 | Ask us to source it → |

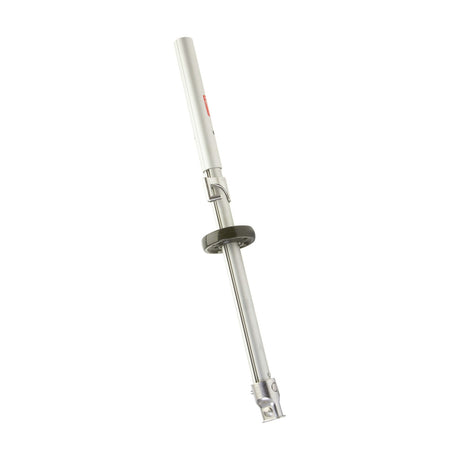

Tack assembly 540-202-01 (RC, F324)
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-202-01 | Tack assembly RC F324, complete | View part → | |
| 540-202 | Tack tube | L=381 | Ask us to source it → |
| 540-215 | Joint sleeve | L=212 | Ask us to source it → |
| 167-007 | Pop rivet | ø4.8x10 | Ask us to source it → |
| 536-257 | Tack hook | ø44.5x90 | Ask us to source it → |
| 167-002 | Pop rivet (2) | ø6.4x17.8 | Ask us to source it → |
| 166-537 | Spring pin | ø10x60 | Ask us to source it → |
| 540-257 | Ring (2) | ø89/38.5x25 | Ask us to source it → |
| 530-390 | V-ring (2) | VS-ø85 | Ask us to source it → |
| 539-220 | Ball bearing ring inner (2) | ø 84x8 | View part → |
| 539-128 | Ball (60) | ø8 | Ask us to source it → |
| 539-219 | Ball bearing outer (2) | ø90x11 | View part → |
| 540-244 | Wheel | ø150x44 | Ask us to source it → |
| 540-225 | Tensioning screw | ø32x180 | Ask us to source it → |
| 167-004 | Pop rivet (6) | ø6.4x12.7 | Ask us to source it → |
| 155-034 | Screw | M6x22 | Ask us to source it → |
| 540-227 | Locking tube | ø44x300 | Ask us to source it → |
| 153-058 | Screw MC6S (2) | M12x60 | Ask us to source it → |
| 540-236 | Joint (2) | ø53x82 | Ask us to source it → |
| 306-306 | Flange bush (4) | ø20/14/12x10 | Ask us to source it → |
| 533-526 | Joint cube | 30x30x30 | Ask us to source it → |
| 533-527 | Pin (hole in middle) | ø12x50 | Ask us to source it → |
| 533-528 | Pin (hole one end) (2) | ø12x19 | Ask us to source it → |
| 166-512 | Spring pin (3) | ø3x30 | Ask us to source it → |
| 540-235 | Cardan shaft (upper) | L=117 | Ask us to source it → |
| 540-232 | Reinforcement plug | ø32/25x60 | Ask us to source it → |
Cardan shaft assembly RC (F324)
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-236 | Joint (2) | ø53-82 | Ask us to source it → |
| 533-526 | Joint cube | 30x30x30 | Ask us to source it → |
| 533-527 | Pin | ø12x50 | Ask us to source it → |
| 533-528 | Pin (2) | ø12x19 | Ask us to source it → |
| 306-306 | Flange bush (4) | ø20/14/12 | Ask us to source it → |
| 166-512 | Spring pin (3) | ø3x30 | Ask us to source it → |
| 540-234 | Cardan shaft | 38/38-117 | Ask us to source it → |
| 540-232 | Reinforcement plug | 32/25-60 | Ask us to source it → |
| 167-007 | Pop rivet | ø4.8x9.9 | Ask us to source it → |
| 540-239 | Locking tube | 44/44-164 | Ask us to source it → |
| 153-058 | Screw (2) | M12x60 | Ask us to source it → |
Tack assembly RD (F324, F370, F406)
| Mast size | Tack assy | Dimension |
|---|---|---|
| F324 | 540-331-01 | L=964 |
| F370 | 540-331-02 | L=964 |
| F406 | 540-331-09 | L=964 |
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-336 | Joint (2) | Ø53-77 | Ask us to source it → |
| 540-331 | Tack tube | Ø58x186 | View part → |
| 540-330 | Tack tube | Ø53x424 | Ask us to source it → |
| 170-107 | Thread insert (2) | M16x24 | Ask us to source it → |
| 540-324 | Tack hook | Ø61x70 | Ask us to source it → |
| 540-325 | Tensioning screw | M16x197 | Ask us to source it → |
| 540-333 | Sail feeder tube | Ø53x490 | Ask us to source it → |
| 540-327 | Locking tube | Ø58x340 | Ask us to source it → |
| 540-342 | Sail feeder | 50x26 | Ask us to source it → |
| 540-338 | Die | Ø42x32 | Ask us to source it → |
| 540-334 | Cardan shaft-inner | Ø53x117 | Ask us to source it → |
| 166-329 | Shaft (4) | Ø12x70 | Ask us to source it → |
| 540-339 | Bushing (4) | Ø20/12-14 | Ask us to source it → |
| 155-023 | Screw | A4-MC6S 8x40 | Ask us to source it → |
| 167-002 | Pop rivet (4) | Ø6.4x18 | Ask us to source it → |
| 167-018 | Pop rivet (2) | Ø4.8x12.7 | Ask us to source it → |
| 539-128 | Ball (76) | Ø8 | Ask us to source it → |
| Item | F324 | F370 | F406 |
|---|---|---|---|
| Wheel | Ø150x70 – 540-244 | 540-238 / Ø172x44 (columns as printed) | Ø187x44 – 540-268 |
| Ball bearing ring-outer (2) | Ø99x11 – 539--219 (as printed) | Ø110x12 – 539-109 | Ø110x12 – 539-109 |
| Ball bearing ring-inner (2) | Ø84x8 – 593-220 (as printed) | Ø104x8 – 539-110 | Ø104x8 – 539-110 |
| V-ring (2) | VS-85 – 530-390 | VS-110 – 530-372 | VS-110 – 530-372 |
| Ring (2) | Ø89/53-25 – 540-256 | Ø109/53-25 – 540-346 | Ø109/53-25 – 540-346 |
Cardan shaft assembly RD (F324, F370, F406)
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-337 | Joint | Ø38-77 | Ask us to source it → |
| 540-338 | Die | Ø42x32 | Ask us to source it → |
| 540-366 | Joint | Ø53-77 | Ask us to source it → |
| 540-334 | Cardan shaft-inner | Ø53x122 | Ask us to source it → |
| 540-335 | Cardan shaft-outer | Ø58x158 | Ask us to source it → |
| 166-329 | Shaft (3) | Ø12x70 | Ask us to source it → |
| 540-339 | Bushing (4) | Ø20/12-14 | Ask us to source it → |
| 153-058 | Screw | M12x60 | Ask us to source it → |
| 301-070 | Retaining ring (6) | ES-12 | Ask us to source it → |
Tack assembly RD+, 540-331-11 (F406)
| Part No. | Description | Dimension | |
|---|---|---|---|
| 540-331-11 | Tack assembly RD+, complete | Ask us to source it → | |
| 540-365 | Tack tube | Ø53x250 | Ask us to source it → |
| 540-333 | Sail feeder tube | Ø53x490 | Ask us to source it → |
| 540-366 | Tack tube | Ø58x130 | Ask us to source it → |
| 540-364 | Tack hook tube | Ø70x200 | Ask us to source it → |
| 167-002 | Pop rivet (12) | Ø6.4x17.8 | Ask us to source it → |
| 170-107 | Thread insert (2) | M16x24 | Ask us to source it → |
| 540-325 | Tensioning screw | M16x200 | Ask us to source it → |
| 155-023 | Screw | MCS 8x40 | Ask us to source it → |
| 540-327 | Locking tube | Ø58x340 | Ask us to source it → |
| 540-342 | Sail feeder | 50x26 | Ask us to source it → |
| 167-018 | Pop rivet (2) | Ø4.8x12.7 | Ask us to source it → |
| 540-269 | Wheel | Ø188/100-44 | Ask us to source it → |
| 540-370 | Ball bearing ring inner (2) | Ø100/70-39 | Ask us to source it → |
| 540-371 | Ball bearing ring outer (2) | Ø120/100-12 | Ask us to source it → |
| 530-365 | O-ring (cut to length L=245) | Ø105x6 | Ask us to source it → |
| 539-050 | Ball (76) | Ø10 | Ask us to source it → |
| 530-372 | V-ring (2) | VS-110 | Ask us to source it → |
| 301-502 | Retaining ring (2) | WST-276 | Ask us to source it → |
| 540-387 | Tube | Ø80x478 | Ask us to source it → |
| 541-014 | Adapter | Ø70x80 | Ask us to source it → |

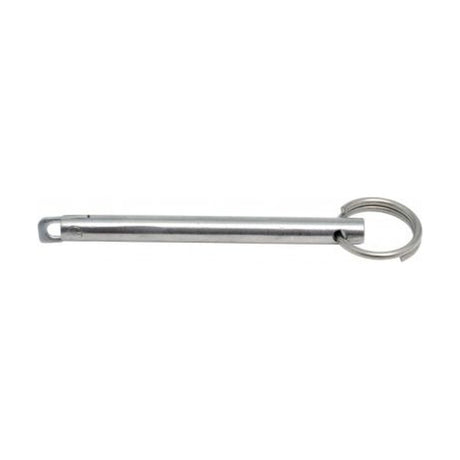

| 166-142 | Pin (2) | Ø16x101 | View part → |
| 301-051 | Split pin (4 + 1) | Ø3.7x25(28) | Ask us to source it → |
| 164-410 | Washer (4) | Ø30/17-3 | Ask us to source it → |
| 165-551 | Clevis pin | Ø16x76 | Ask us to source it → |
Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
Products in this Manual
-
Selden Lubricating Grease (90 g) - for Furlex, Winches and Furling Masts
SELDEN-LUBRICATING-GREASE-TUBE-90-G
$20.99 USDUnit price /Unavailable -

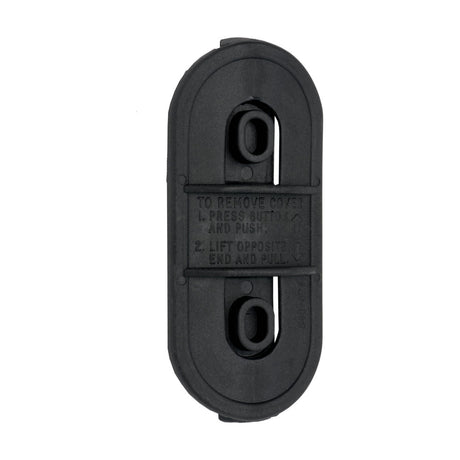

Selden Cover for Access to Sail-feeder and Tack Attachment. 72 X 207 mm. F265-F406.
SELDEN-COVER-72-X-207-PA
$37.99 USDUnit price /Unavailable -
Selden TACK ASSY L=964(370/192-RD)
SELDEN-TACK-ASSY-L-964370-192-RD
$3,780.00 USDUnit price /Unavailable -
Selden Cover for Access to Sail-feeder and Tack Attachment. 57 X 126 mm. F194-F246.
SELDEN-COVER-57X126-PA
$23.99 USDUnit price /Unavailable -
-
Selden TACK TUBE 58/58-186(INCL.COV.
SELDEN-TACK-TUBE-58-58-186INCL-COV
$55.95 USDUnit price /Unavailable -
Selden Bal Bearing Ring - Outer (90mm x 11mm) for C Furlers
SEL-539-219
$71.95 USDUnit price /Unavailable -
Selden Bal Bearing Ring - Inner (84mm x 8mm) for C Furlers
SEL-539-220
$71.95 USDUnit price /Unavailable -
Selden TACK ASSY L=381(324/169 RC)
SELDEN-TACK-ASSY-L-381324-169-RC
$2,120.00 USDUnit price /Unavailable -
Selden Clevis Pin ø12x53 mm, AISI316 Stainless
SELDEN-CLEVIS-PIN-O12X53-ST
$8.99 USDUnit price /Unavailable -
Selden TACK TUBE 38/38-477 (RC) A
SELDEN-TACK-TUBE-38-38-477-RC-A
$71.95 USDUnit price /Unavailable -
Selden TACK ASSY L=477 HRC, F265-286
SELDEN-TACK-ASSY-L-477-HRC-F265-286
$565.00 USDUnit price /Unavailable -
Selden Shackle M8x16x32, Twisted
SELDEN-SHACKLE-M8X16X32-TWI-SCREW-BA
$24.99 USDUnit price /Unavailable -
-
Selden WASHER ø74/62-3 (C mk3) ST
SELDEN-WASHER-O74-62-3-C-MK3-ST
$14.99 USDUnit price /Unavailable -
Selden Ball Bearing Ring - Outer (83mm x 16mm) for 300S Furlers
SEL-SPR-539-270
$56.95 USDUnit price /Unavailable -
-
Selden Clevis Pin ø12x25 mm, AISI316 Stainless
SELDEN-CLEVIS-PIN-O12X25-ST
$7.99 USDUnit price /Unavailable -
