Selden Rigging Screw Covers Instructions (PDF)

INSTRUCTIONS

Sizes, spare top plugs and fitting instructions for Selden aluminium rigging screw (turnbuckle) covers, 7/16" to 1".

DocumentSelden Rigging Screw Covers Instructions

FormatPDF · 2 pages · 0.4 MB

LanguageEnglish

Cover Sizes

Art. No.	For rigging screw	Tube dia. mm outer/inner	Tube length mm	Spare top plug
319-580-01	7/16" (6-7 mm)	38/35	650	319-580-02R	View cover →
319-581-01	1/2" (7-8 mm)	43/40	650	319-581-02R	View cover →
319-582-01	5/8" (8-10 mm)	50/46	700	319-582-02R	View cover →
319-583-01	3/4" (10-12 mm), produced before 2022	57/53	800	319-583-02R	View cover →
319-584-11	3/4" (10-12 mm), produced from 2022	67/63	800	319-584-02R	View cover →

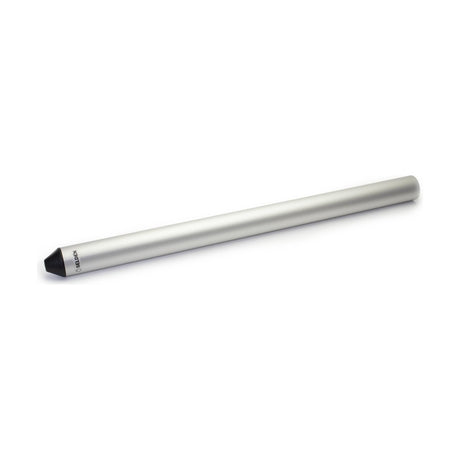

319-584-01	7/8" (12-14 mm)	67/63	1100	319-584-02R	View cover →
319-585-02	1" (14-16 mm)	87/76	1550	319-585-02R	View cover →

Shape the lower end of the tube to the deck angle and chain plate so sheets and lines cannot snag; slit the tube if the chain plate is wider than the tube.
Place the top bushing halves around the stay and push them into the tube until the snap fastener engages.
Use the screws supplied with thread-lock.
Adapter (A) does not clear the rigging screw toggle: fit it before assembling the rigging screw to the shroud.
A few turns of tape on the stay just above the top bushing hold the tube down against the deck.
