Selden Series-S 2-Speed Self-Tailing Winches — Owner's Manual

Dimensions and Technical Data

Model Aluminium drum item no. Height mm Base Ø mm Drum Ø mm Line mm Ratio high / low Weight kg SWL kN
S30 475-130-01 150 139 75 8-12 12:1 / 30:1 2,9 8,4
S40 475-140-01 162 152 75 8-12 13:1 / 40:1 3,5 11,2
S46 475-146-01 186 184 90 8-14 13:1 / 46:1 5,8 12,9
S52 475-152-01 186 184 90 8-14 15:1 / 52:1 5,8 14,6
S60 475-160-01 239 245 120 8-16 18:1 / 60:1 13,0 16,8
S66 475-166-01 239 245 120 8-16 20:1 / 66:1 13,1 18,5

Included: drilling template (S30 597-198-E, S40 597-509-E, S46/S52 597-511-E, S60/S66 597-512-E), manual and winch tool 473-010. Exceeding the max line size can damage the self-tailing jaws.

Selden Series-S winch main components: top cover, self-tailing arm, drum, locator bracket, roller bearings and winch base

Fasteners (not supplied)

Winch Fastener Marking drill Through deck M-thread drill
S30 Countersunk M6 Ø 6,5 mm Ø 7 mm Ø 5,0 mm
S40 Countersunk M8 Ø 8,5 mm Ø 9 mm Ø 6,8 mm
S46, S52 Countersunk M8 Ø 8,5 mm Ø 9 mm Ø 6,8 mm
S60, S66 Countersunk M10 Ø 10,5 mm Ø 11 mm Ø 8,5 mm

Marking drill: use a smaller drill when marking through the template. Line entry 5-10°; orient the drive gear to the load side (highest load if multi-use).

Mounting

  1. Remove top cover (winch tool), self-tailing arm, locator bracket and drum; the roller bearings stay on the base.
  2. Mark the holes with the template or base (base recommended when threading into the deck).
  3. Drill, countersink the tops, tap if threading; check the fit.
  4. Seal with a non-hardening compound (e.g. Butyl), no glue; when through-bolting, hold the screw and turn the nut.
  5. Refit drum, bracket and arm with the line stripper captive under the arm; set the arm to lead the line to the cockpit and tighten the top cover.

Operation

  • 2-3 turns, pull the slack, more turns if needed, then over the arm into the jaws.
  • Handle anti-clockwise = high gear; clockwise = low gear. More turns while pulling slack increases the risk of override.

Trouble Shooting

Problem Action
Loss of self-tailing Re-seat the line; add turns; use the correct line size
Not ratcheting Flip the ratchet gears to match pawl engagement; service the winch

Yearly Maintenance

  1. Remove top cover, arm (note its position), locator bracket and drum.
  2. Remove roller bearings, drum washer and drive shaft (O-ring friction lock – use a winch handle if needed); lift the two gear shafts out with a small screwdriver.
  3. Remove the two gear assemblies, minding the washers; clean in white spirits and replace worn pawls and springs.
  4. Pawl oil on the pawls; thin grease on gear teeth, small hubs, shafts, the drum's internal gear and the drive-shaft gear.
  5. Do not grease the roller bearings. Reassemble with the line stripper captive under the arm.

At least once a year; more often for racing and charter boats. Rinse occasionally with fresh water.

Spare Parts

Art. No. Description Size
470-029-11R Gear service kit S30/40 View part →
470-029-12R Gear service kit S46/52 View part →
472-005-11R Gear service kit S60/66 View part →
473-315-01R Gear shaft S30 Ask us to source it →
473-415-01R Gear shaft S40 Ask us to source it →
473-516-01R Gear shaft S46/52 Ask us to source it →
473-615-01R Gear shaft S60/66 Ask us to source it →
473-412R Locator bracket S30/40 Ask us to source it →
473-512R Locator bracket S46/52 Ask us to source it →
473-612R Locator bracket S60/66 Ask us to source it →
473-548-10R Bearing kit S30/40 Ask us to source it →
473-547-10R Bearing kit S46/52 Ask us to source it →
473-549-10R Bearing kit S60/66 Ask us to source it →
473-321-10R 2-speed gear S30 Ask us to source it →
473-421-10R 2-speed gear S40 Ask us to source it →
473-522-10R 2-speed gear S46 Ask us to source it →
473-521-10R 2-speed gear S52 Ask us to source it →
473-622-10R 2-speed gear S60 Ask us to source it →
473-621-10R 2-speed gear S66 Ask us to source it →
320-089-10R Drive gear S30 Ask us to source it →
320-075-10R Drive gear S40 Ask us to source it →
320-076-10R Drive gear S46/52 Ask us to source it →
320-077-10R Drive gear S60/66 Ask us to source it →
473-010R Winch tool S30/40, S46/52, S60/66 View part →
473-314R Top cover S30 View part →
473-414R Top cover S40 View part →
473-524R Top cover S46 View part →
473-514R Top cover S52 View part →
473-624R Top cover S60 View part →
473-614R Top cover S66 View part →
473-413R Self-tailing arm S30/40 Ask us to source it →
473-513R Self-tailing arm S46/52 View part →
473-613R Self-tailing arm S60/66 View part →
473-429-10R Self-tailing jaws kit S30/40 View part →
473-525-10R Self-tailing jaws kit S46/52 View part →
473-625-10R Self-tailing jaws kit S60/66 View part →
473-427R Line stripper S30/40 Ask us to source it →
473-527R Line stripper S46/52 Ask us to source it →
473-627R Line stripper S60/66 Ask us to source it →
Item No. Optional part
474-501-10 10" Race GRIP winch handle View part →
474-401-10 8" Race GRIP winch handle View part →
474-301-10 10" STANDARD winch handle View part →
474-201-10 8" STANDARD winch handle View part →
312-501 Selden lubrication grease (90g) View part →
312-709-01 Pawl oil (50 ml) View part →

Older Version: S30, S40, S48, S54 (597-285-E)

Model Item No. Base Ø mm Drum Ø mm Height mm Weight kg Line mm Ratio high / low SWL kN
S30 472-630-10 150 85 183,5 3,5 8-12 10:1 / 30:1 8,4
S40 472-640-10 150 85 183,5 3,5 8-12 10:1 / 40:1 11,2
S48 472-648-10 188 108 218 5,6 10-14 10:1 / 48:1 13,4
S54 472-654-10 188 108 218 5,6 10-14 10:1 / 54:1 15,1
Art. No. Spare part (older winches)

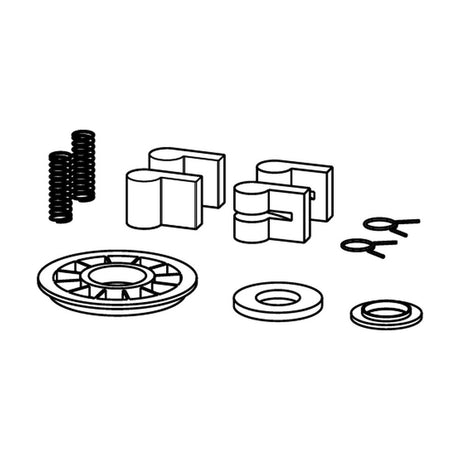

470-029-01R Pawl kit, S30-S54 View part →
470-029-20R Twin gear ratchet spare kit Ask us to source it →
472-026-10R S-Winch drive shaft spare kit Ask us to source it →
470-231-10R Roller bearing kit S30/40 Ask us to source it →
470-267-10R Roller bearing kit S48/54 Ask us to source it →
472-022-30R Top cover replacement kit, S30 Ask us to source it →
472-022-40R Top cover replacement kit, S40 Ask us to source it →
472-042-48R Top cover replacement kit, S48 Ask us to source it →
472-042-54R Top cover replacement kit, S54 Ask us to source it →

Tightening torques in the older manual: M6=7 Nm, M8=12 Nm. Grease on the gears only; pawls with pawl oil.

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
