SERVICE MANUAL

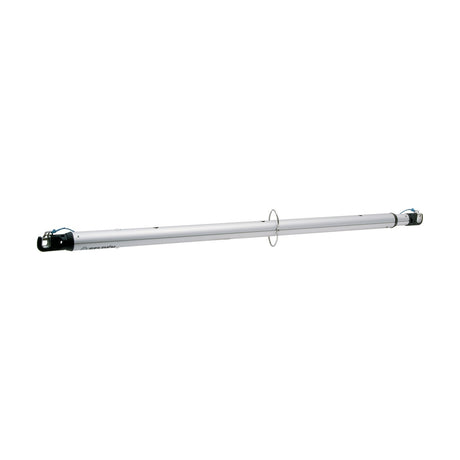

Replacing the locking knobs and spring on a Selden telescopic whisker pole (Tele-pole 60/48, 72/60 and 84/72), with the correct end-fitting rivets.

DocumentSelden Telescopic Whisker Pole, Replacement of Knobs Service Manual
FormatPDF · 1 page · 0.2 MB
LanguageEnglish
Download PDFView Collection
KitsReplacementProducts
Selden Telescopic Whisker Pole, Replacement of Knobs — Service Manual

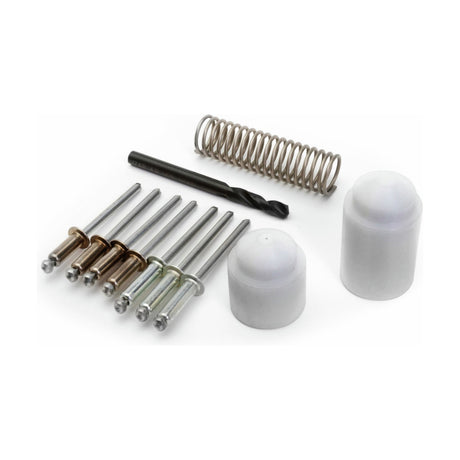

Replacement Knob Kits

Kit Part no. Tele-pole size
308-109-01R 60/48 View kit →
308-109-02R 72/60 View kit →
308-111-01R 84/72 View kit →

Kit includes locking knobs, spring, rivets and drill bit. Tools: power drill, ø2.5mm plunger, hammer and pop rivet gun.

Steps

  1. Drill out the pop rivets and remove both end fittings.
  2. Push the inner tube into the outer tube until its inner end exits the outer tube – take care not to lose the knobs and spring.
  3. Replace the spring and locking knobs; push the inner tube back.
  4. Refit the end fittings with the correct rivets (table), punch out the rivet balls and empty them from the pole through the plunger holes.

End Fitting Rivets

Tele pole Inner end Outer end
60/48 Ø4.8x12.7 Ø4.8x16.5
72/60 Ø4.8x16.5 Ø4.8x12.7
84/72 Ø4.8x12.7 Ø4.8x16.5

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
