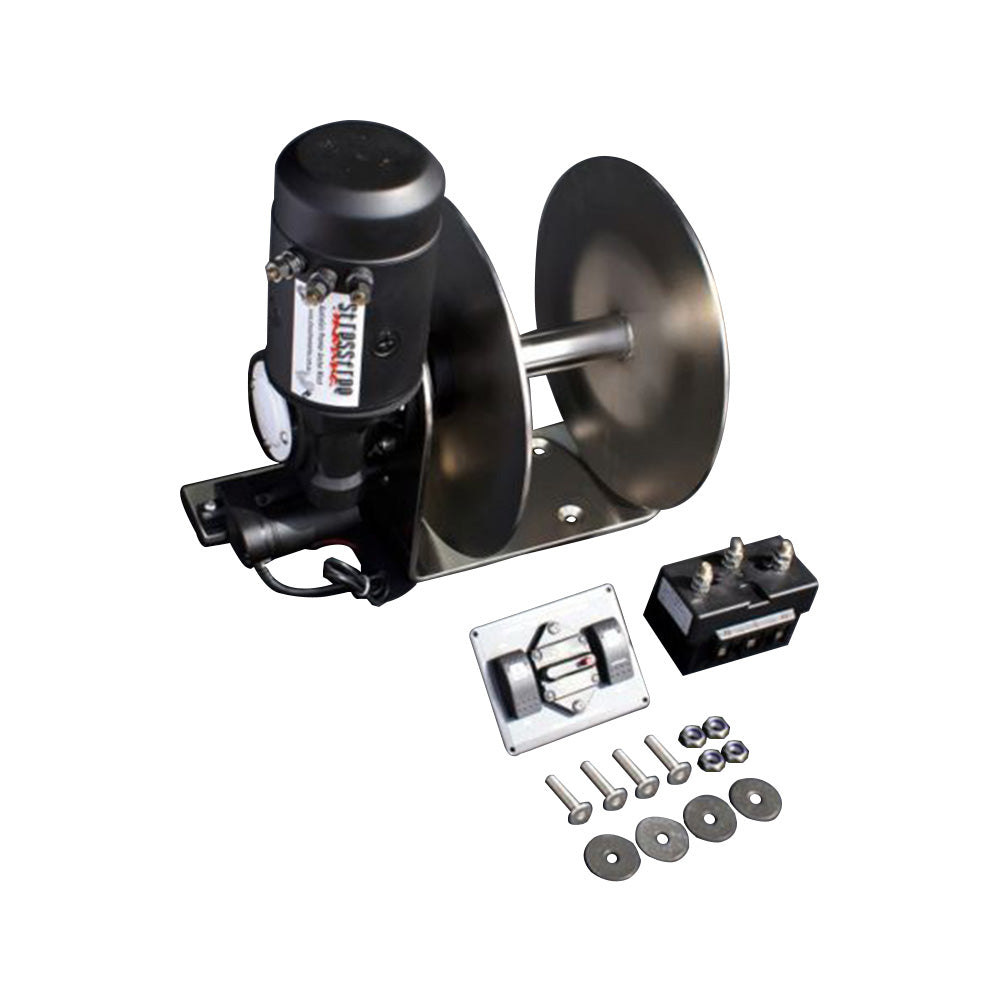

Quick Windlass - SF Mini Free Fall 500W Horizontal Electric 12V Reel 1/4" - BBB (FSSFMNFF0512A00)

Name: Quick Windlass - SF Mini Free Fall 500W Horizontal Electric 12V Reel 1/4" - BBB (FSSFMNFF0512A00)
Brand: Quick
SKU: QCKFSSFMNFF0512A00
Price: 5500.0 USD
Availability: InStock

SKU: QCKFSSFMNFF0512A00 | Manuf. Code: FSSFMNFF0512A00

~~List Price: $7,246.56 USD~~

$5,500.00 USD

You save 24% off List

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

The Stress Free Marine electric boat anchor winch is just like having an extra crew member tending the anchor for you raising and lowering your anchor quickly, safely and effortlessly. There is no need to tie off your anchor rope, no racing down to the bow to drop or raise the anchor. No tangled rope and chain in the anchor well. No strained back or frustrated amateur crew. No rushing around the boat to move your mooring. Simply drive the boat to where you want to fish, push a button and the anchor is lowered quickly without fuss or bother. It is even automatically secured. You can lower and retrieve your anchor rope using our Australian made electric anchor winches at a rate between 80 and 90 feet per minute! The revolutionary Stress Free Marine electric drum anchor winch is available in a range of capacities, and there's one designed just to fit into your boat.

Our Part # QCKFSSFMNFF0512A00 | Mfr. Part # FSSFMNFF0512A00

FEATURES

Suitable for boats from 4 to 6 meters
Fits neatly into the anchor well
The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
500 watt motor
Constructed from 316 marine grade stainless steel
Maximum lifting capacity 195 kilos (when the drum diameter is small)
Holding capacity at anchor is 1800 kilos
Rated to 80 amps
Normal running the Stress Free will use 25 30 amps and under load up to 55 amps
Recommend dual batteries with the battery switch on BOTH
Can be deck mounted
The gearbox mounting holes allow the motor and drive to be installed at 4 angles to suit different anchor well configurations
Another 8 adjustment angles are available at 30Â° and 45Â° from each of the basic 4 mounting holes
NB: the motor cannot be mounted in the horiontal position to face the baseplate
NB: The amount of chain can be lengthened or shortened to meet individual needs
In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate

TECHNICAL INFORMATION

Description	Imperial	Metric
Gear Ratio	6.2:1	6.2:1
Retrieve Rate	37.0 in	94.0 cm
Max Drag	15.0 lb	6.8 kg
Weight	10.8 oz	306.0 g
Mono Line Capacity (lb/yd)	8/220, 10/185, 12/150
Braid Line Capacity (lb/yd)	10/275, 15/205, 20/190
Voltage	12V	12V
Wattage	500W	500W
Size	4 in	101.6 mm
