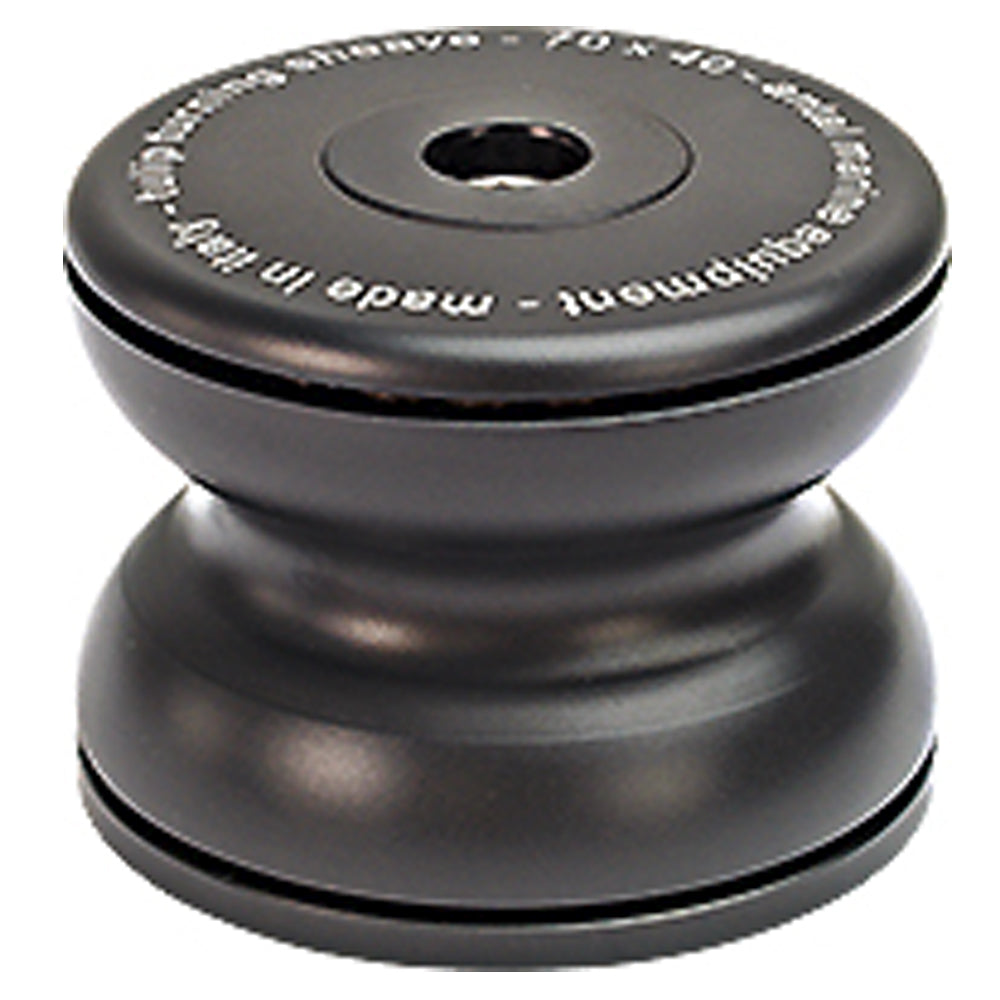

Turning sheave, sheave Ø 70, SWL 1400 kg.
This sheave is fitted with 4 wide Torlon ball bearings, this is the best solution when it is necessary to redirect the line to any angle.
Our Part # ANT821070 | Mfr. Part # 821.07
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Width | 2 5/7 in. | 69.00 mm. |
| Height | 2.00 in. | 52.00 mm. |
| Sheave | 2 3/4 in. | 70.00 mm. |
| Side bearing | Torton balls | |
| Radial bearing | Torton balls | |
| Weight | 10.58 oz. | 300.00 gr. |
| Max line | 1/2 in. | 12.00 mm. |
| Safe Working Load | 3087.00 lb. | 1400.00 kg. |
| Material | Aluminum | |
| Sheave material | Aluminum | |
