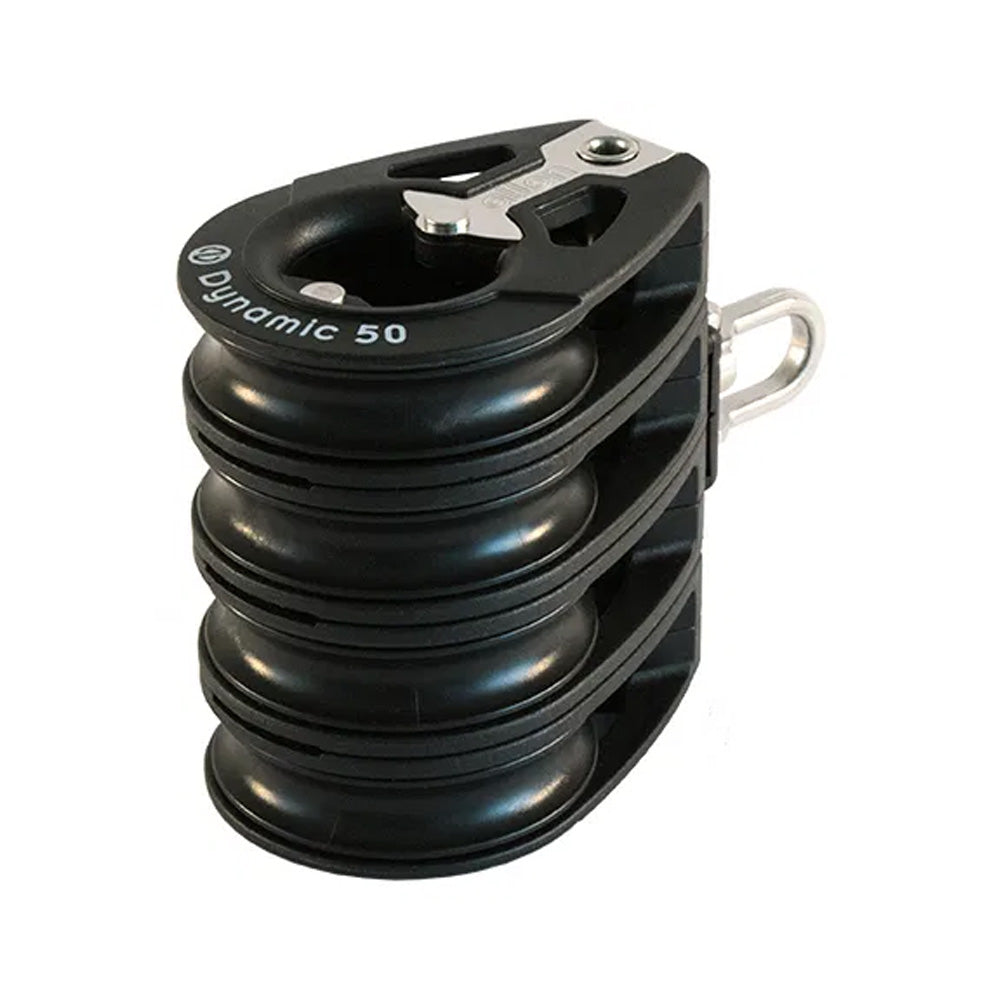

50mm Quad Dynamic Block.
The A2056 is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 50mm quad is a great choice for systems which require a larger purchase system with minimal friction.
Our Part # ALL-A2056 | Mfr. Part # A2056
Features
Features
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2055 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â This pulley features a central becket between the sheaves. The becket can be removed by undoing the split ring. This allows for easy termination of a spliced rope.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2976.75 lbs. | 950.0 kg |
Length | 4.0 in | 10.1 cm |
Maximum line diameter | 3/8 in | 10.0 mm |
Maximum working load | 1036.35 lbs. | 470.0 kg |
Weight | 9.49 oz | 269.0 g |
Shackle pin | 3/16 in | 5.0 mm |
