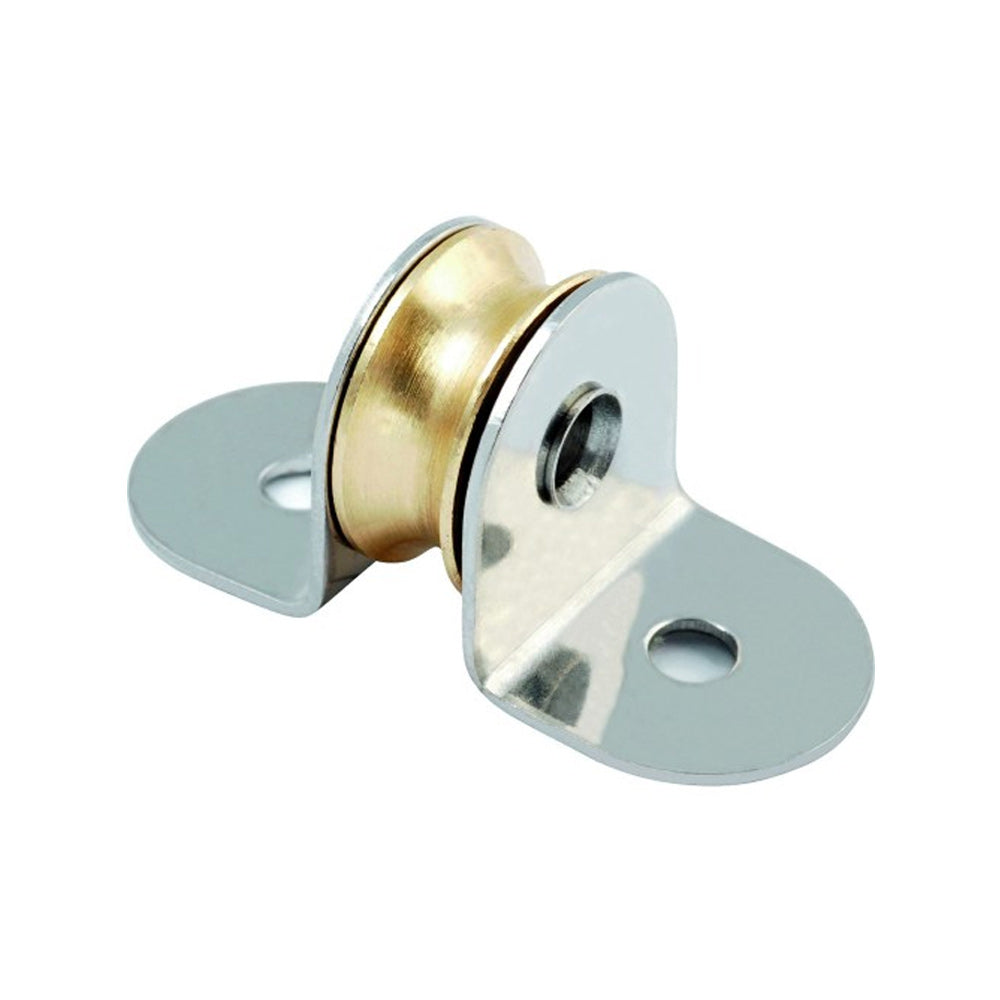

16mm Single Through Deck Plain Bearing Block With Brass Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
The brass sheave allows this block to be paired with wire as well as offering more durability over the acetal sheave.
Our Part # ALL-A4601 | Mfr. Part # A4601
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Breaking load | 606.38 lbs. | 275.0 kg |
| Length | 5/8 in | 16.0 mm |
| Maximum line diameter | 3/16 in | 5.0 mm |
| Sheave diameter | 5/8 in | 16.0 mm |
| Weight | 0.5 oz | 13.0 g |
