Description
Description
Looper series, single block, sheave 60, SWL 1000 kg. Looper is an ultralight one-piece-frame block provided with a dyneema Snap-Loop for fast, easy and safe connections.Characteristics: Hard black anodized one-piece-aluminium frame; resin sheave on composite fibre bushing and double side ball bearings; Dyneema Snap-Loop. The one-piece-frame. The one-piece aluminium extruded body is the strongest and lightest solution, no assembling pin rivets or screws and nuts. CNC machined - polished - hard black anodized and teflon coated.Part Number: LL1071.Antal 70 mm Single + Becket Looper Block (no Snap Loop). Our Part # ANTLL1071 | Antal Part # LL1071
Characteristics: Hard black anodized one-piece-aluminium frame; resin sheave on composite fibre bushing and double side ball bearings; Dyneema Snap-Loop. The one-piece-frame. The one-piece aluminium extruded body is the strongest and lightest solution, no assembling pin rivets or screws and nuts. CNC machined - polished - hard black anodized and teflon coated.Part Number: LL1071.Antal 70 mm Single + Becket Looper Block (no Snap Loop). Our Part # ANTLL1071 | Antal Part # LL1071
Part Number: LL1071.Antal 70 mm Single + Becket Looper Block (no Snap Loop). Our Part # ANTLL1071 | Antal Part # LL1071

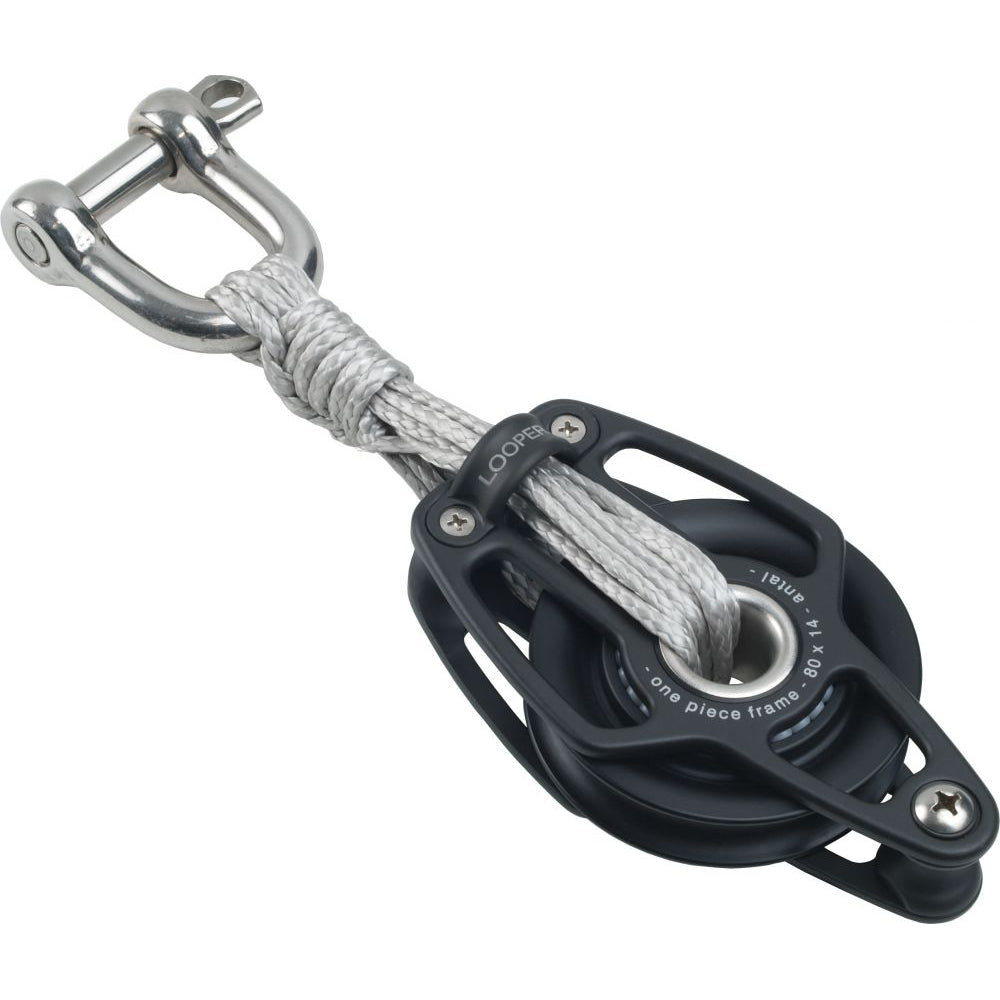

Antal 70 mm Single + Becket Looper Block (no Snap Loop).
Our Part # ANTLL1071 | Antal Part # LL1071
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Ø sheave | 2 3/4 in. | 70.00 mm. |
| Side bearing | Delrin balls | |
| Radial bearing | Composite fibre | |
| Weight | 5.36 oz. | 152.00 gr. |
| Ø max line | 1/2 in. | 12.00 mm. |
| Safe Working Load | 3528.00 lb. | 1600.00 kg. |
| Material | Aluminum | |
| Sheave material | Plastic | |
