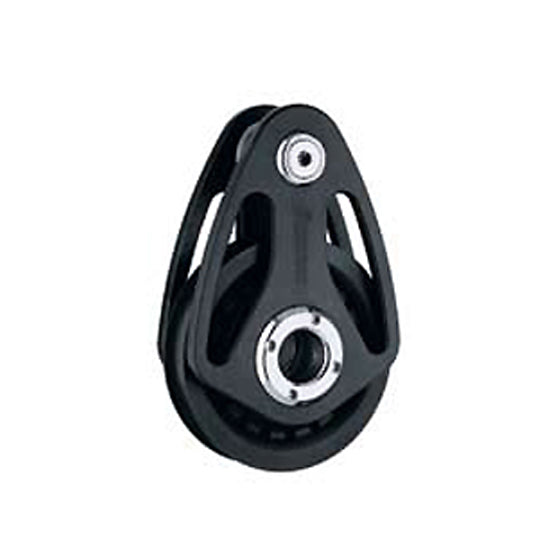

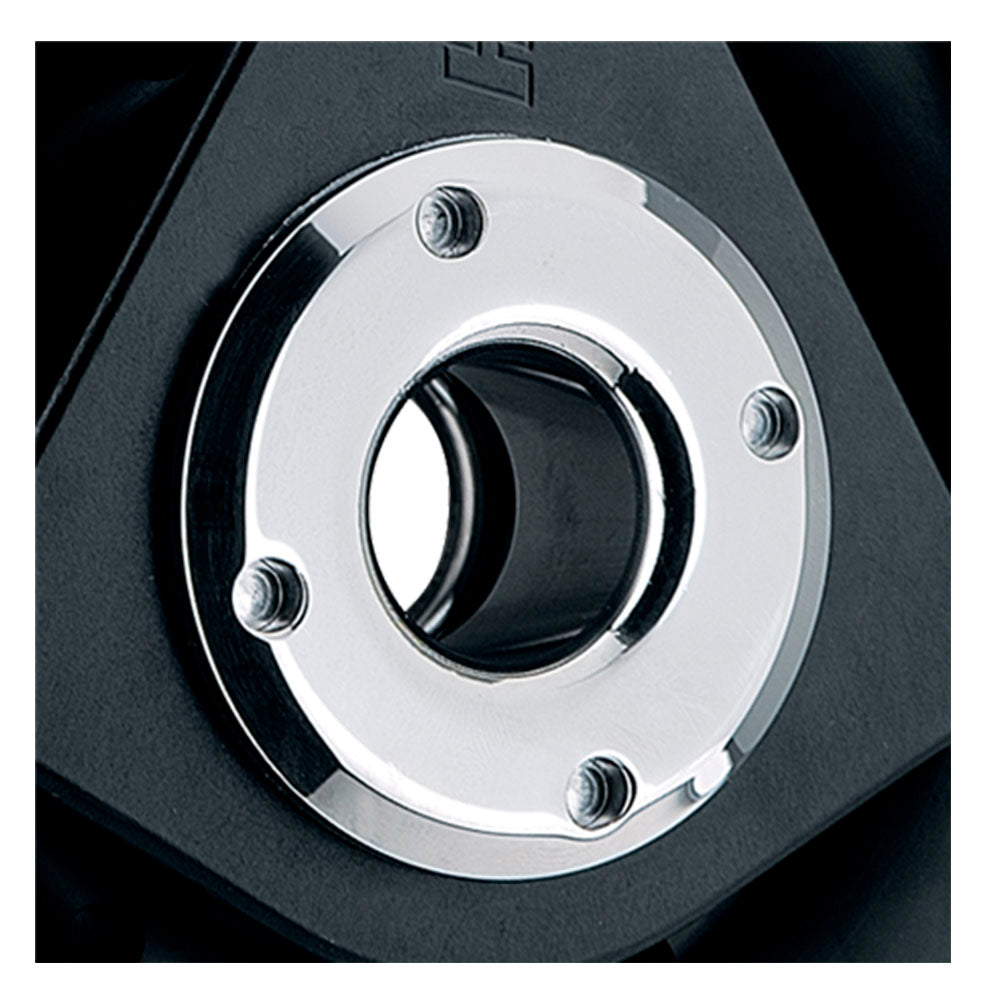

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC8631 | Mfr. Part # HC8631
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 6 8/9 in | 175.0 mm |
| Length | 10 1/2 in | 267.0 mm |
| Weight | 7.28 lb | 3.3 kg |
| Max line Ø | 1.0 in | 25.0 mm |
| Maximum working load | 33075.0 lb | 15000.0 kg |
| Breaking load | 66150.0 lb | 30000.0 kg |
