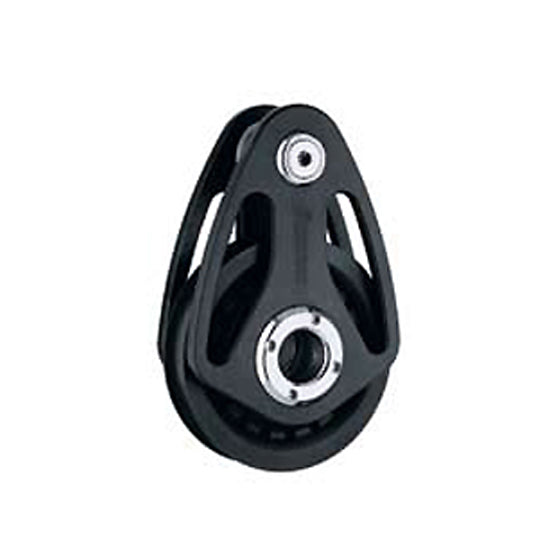

Harken Block - Megayacht 175mm Single - Teardrop (Aluminum) (HC8631)

SKU: HARHC8631  |  Manuf. Code: HC8631
$6,731.65 USD
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

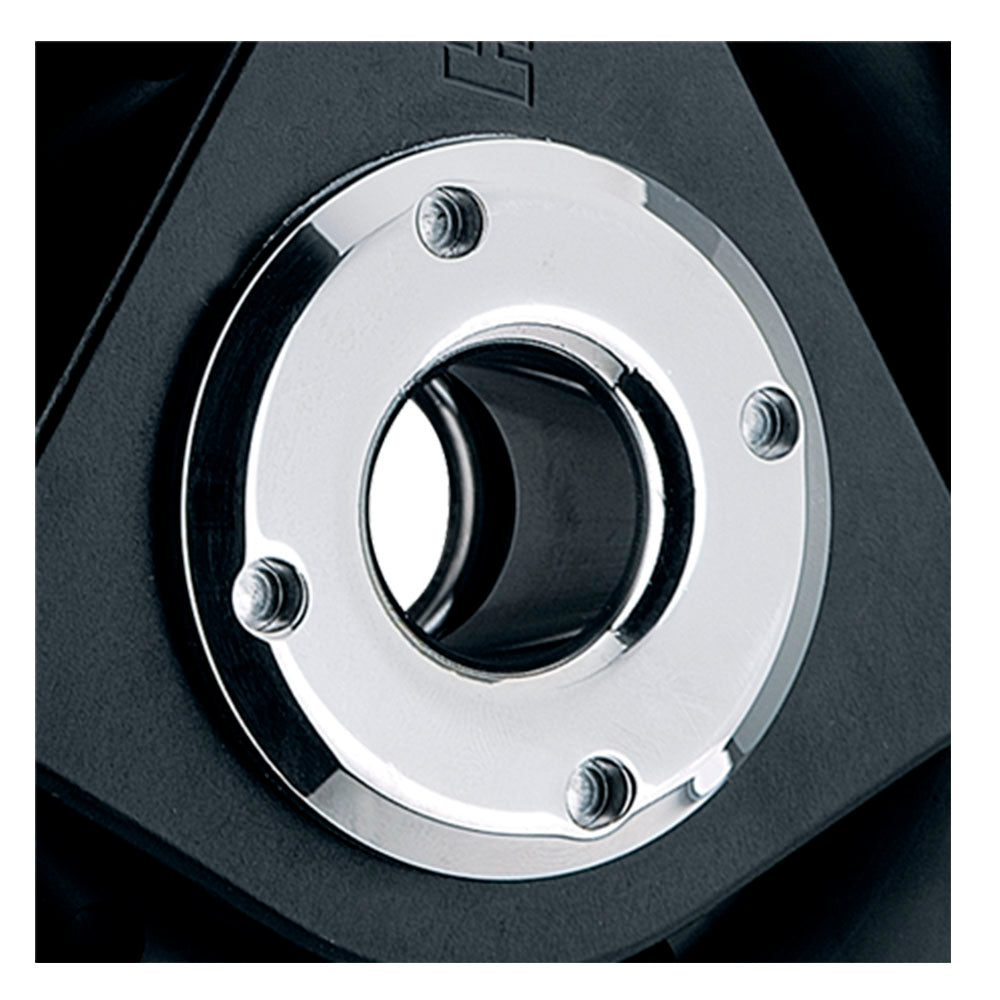

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.

Our Part # HARHC8631 | Mfr. Part # HC8631

FEATURES

  • 175mm single teardrop block.
  • Constructed from high-grade aluminum.
  • Designed for megayacht applications.
  • High strength-to-weight ratio.
  • Smooth-running for large diameter lines.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave Ø6 8/9 in175.0 mm
Length10 1/2 in267.0 mm
Weight7.28 lb3.3 kg
Max line Ø1.0 in25.0 mm
Maximum working load33075.0 lb15000.0 kg
Breaking load66150.0 lb30000.0 kg
