DESCRIPTION
DESCRIPTION

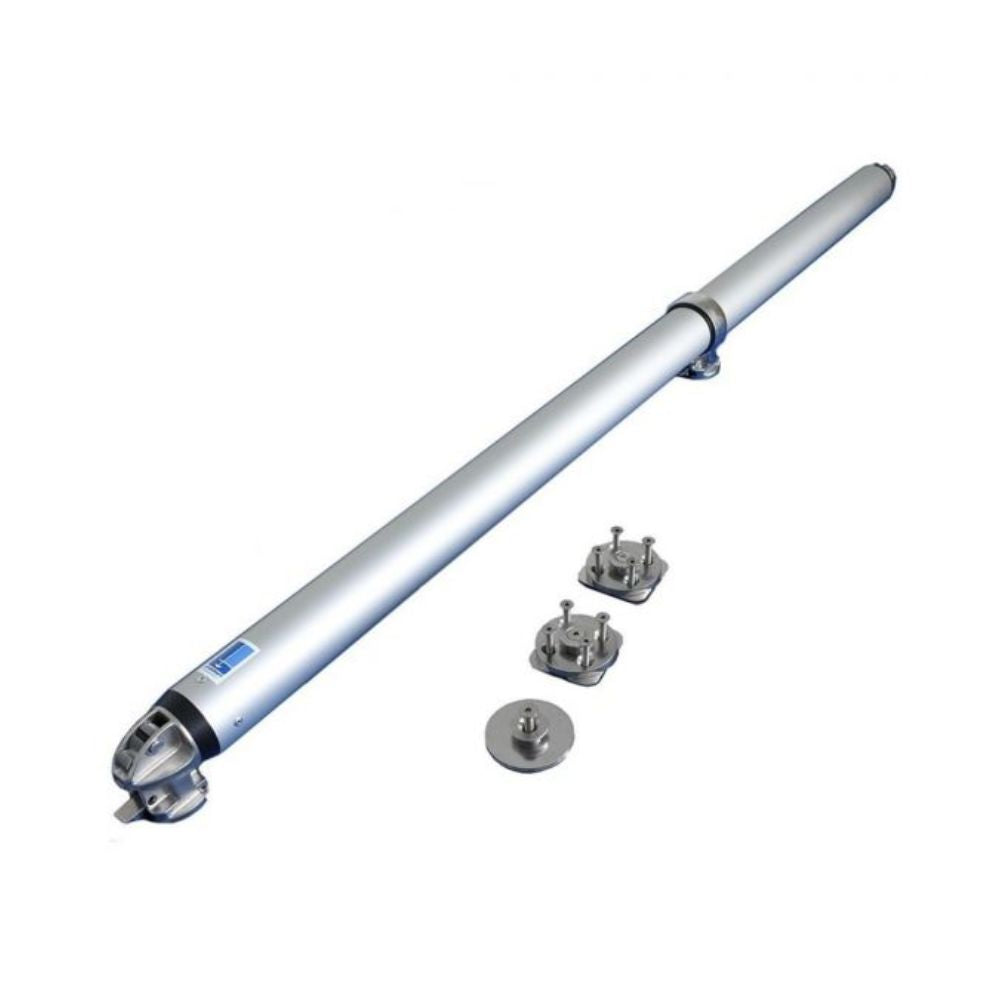

The Sparcraft removable bowsprits, can be fitted on sailing boats from 25 to 57 feet, for Asymmetric Spinnakers or Gennaker and Code Zero. The deck fixing device allows a free foredeck when arriving at the harbour or mooring.
Complete kit including:
- Aluminium bowsprit with special end fittings: bridle attachment at the front and fixing block device at the back (delivered pre-installed).
- Attachment does not include line, cleat or accessories.
- Adjustable Central fixing collar.
- Optional Bridle kit is available as part number: FAC5001.
- Deck fitting blocks and two counter plates.
Our Part # FAC1589 | Facnor Part # 31000108000
FEATURES
FEATURES
- Easy fixation thanks to an automatic locking device on deck fixing blocks
- Simple installation (only a short backwards movement is needed to fit the bowsprit on the deck)
- Quick removal & storage on a third fixing block
- The locking system incorporates an anti-theft device
- The central fixing collaris removable from the fixing block. The foredeck is therefore totally free (no more fixed collar in the way)
- Rotating collar captive from the section: removable bowsprit for storage alongside one boat edge
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Ø Section | Ø 3 1/8 in | Ø 80.0 mm |
| Total Lenght | 70 7/8 in | 1800.0 mm |
| Mini length inside | 35 7/16 in | 900.0 mm |
| Max length outside | 35 7/16 in | 900.0 mm |
| Use example boat legth | 36.0 - 40.0 ft | |
| Max sail area Asym. Spi. | 82.0 m2. | |
| Max sail area Gennaker & code zero | 2 1/16 in | 52.0 mm |
| Fitting FX+ &FX + SPI models | 2500/4500 | |
