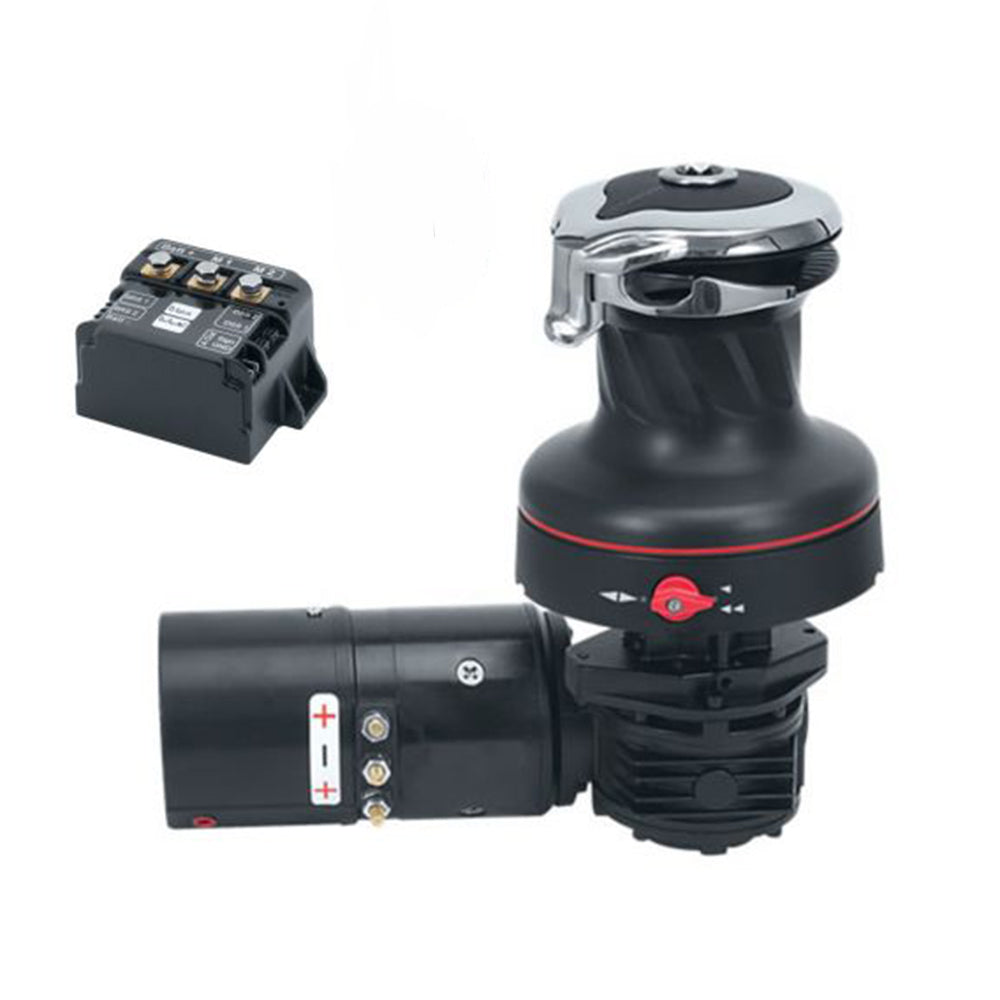

Harken Electric Winch Rewind Size 40 - 12V / Aluminum Black / Two Speed / Left Mount (40RWA12HLM)
Harken Electric Winch Rewind Size 40 - 12V / Aluminum Black / Two Speed / Left Mount (40RWA12HLM) is backordered and will ship as soon as it is back in stock.
Description
Description

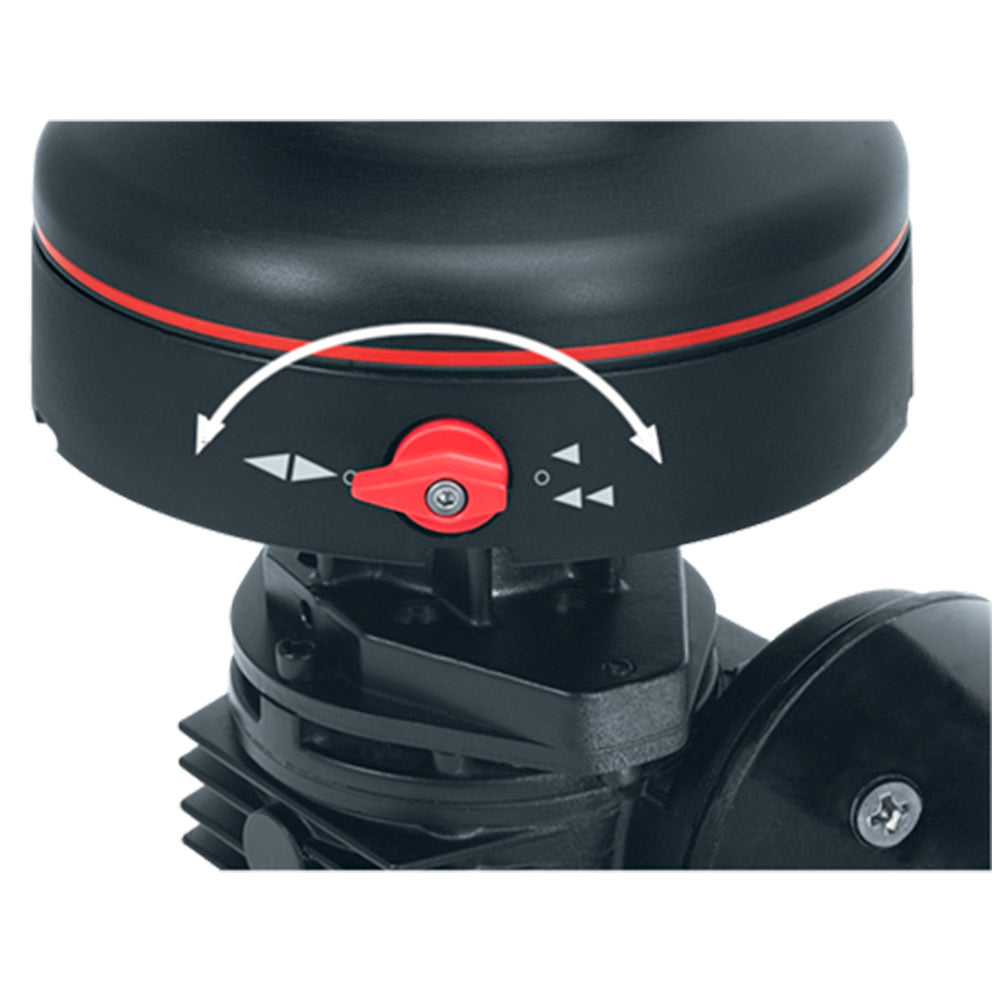

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.
Our Part # HAR40RWA12HLM | Mfr. Part # 40RWA12HLM
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Material | Aluminum | |
| Weight | 32.2 lb | 15 kg |
| Maximum line Ø | 1/2 in | 12 mm |
| Fasteners | 1/4 SH in | M6 SH mm |
| Fastener circle | 4 7/8 in | 123 mm |
| Height | 6 7/8 in | 175 mm |
| E | 1 3/4 in | 43 mm |
| F | 6 1/8 in | 155 mm |
| G | 11 in | 280 mm |
| Number of fasteners | 5 | |
| Configuration | Self-tailing | |
| Speed | 2 | |
| Drum Ø | 3 1/8 in | 80 mm |
| Base Ø | 6 3/16 in | 157 mm |
| Line entry height | 3 1/4 in | 82 mm |
| Minimum line Ø | 5/16 in | 8 mm |
| Gear ratio - 1 | 2.13 | |
| Gear ratio - 2 | 6.28 | |
| Power ratio - 1 | 13.5 | |
| Power ratio - 2 | 39.9 | |
