DESCRIPTION
DESCRIPTION

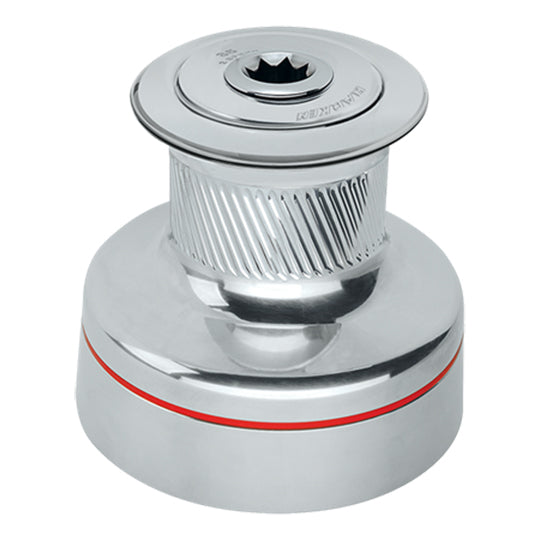

The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. Plain-top winches are best handled by two crew-one to trim and one to tail the line.
Our Part # HAR202PTCCC | Mfr. Part # 20.2PTCCC
FEATURES
FEATURES
- Radial size 20 winch.
- Full chrome finish for marine environments.
- Two-speed gearing for power and control.
- Plain top design.
- Ideal for hauling lines on sailboats.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Material | All-Chrome | |
| Weight | 7.9 lb | 3.6 kg |
| Fasteners | 1/4 SH in | 6 SH mm |
| Fastener Circle | 4 3/8 in | 110 mm |
| Height | 5 1/16 in | 128 mm |
| Configuration | Plain-top | |
| Speed | 2 | |
| Drum Ø | 2 7/8 in | 73 mm |
| Base Ø | 5 3/8 in | 137 mm |
| Line Entry Height | 2 3/8 in | 61 mm |
| Number of Fasteners | 5 | |
| Gear Ratio - 1 | 1 | |
| Gear Ratio - 2 | 2.76 | |
| Power Ratio - 1 | 6.95 | |
| Power Ratio - 2 | 19.2 | |
| Available Power | Manual | |
