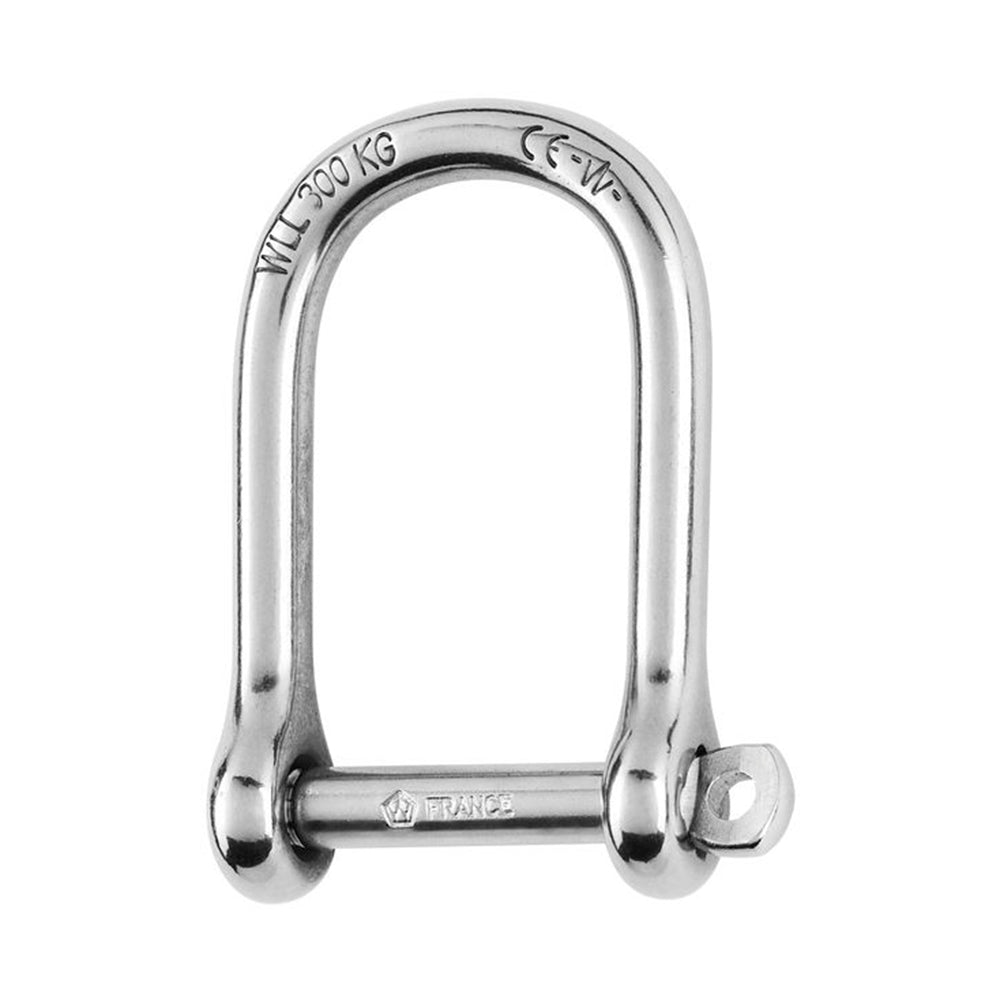

Wichard Self-Locking Large Shackle - Pin Dia: 5/16 in (8.0 mm) (1264)
SKU:
WIC1264
|
Manuf. Code:
1264
25% off
Unit price
/
Unavailable
Wichard Self-Locking Large Shackle - Pin Dia: 5/16 in (8.0 mm) (1264) is backordered and will ship as soon as it is back in stock.
You Save $18 This Week!
Knowledgeable STAFF
Wichard Self-Locking Large Shackle - Pin Dia: 5/16 in (8.0 mm) (1264)
Unit price
/
Unavailable
Description
Description
The Wichard Self-locking Twisted Shackle (Grade 316L) includes a locking pin for vibration resistance and CE marking. Designed for high loads and applications needing a large opening shackle. WLL: for industrial use only.
Our Part # WIC1264| Wichard Part # 1264
Technical Information
Technical Information

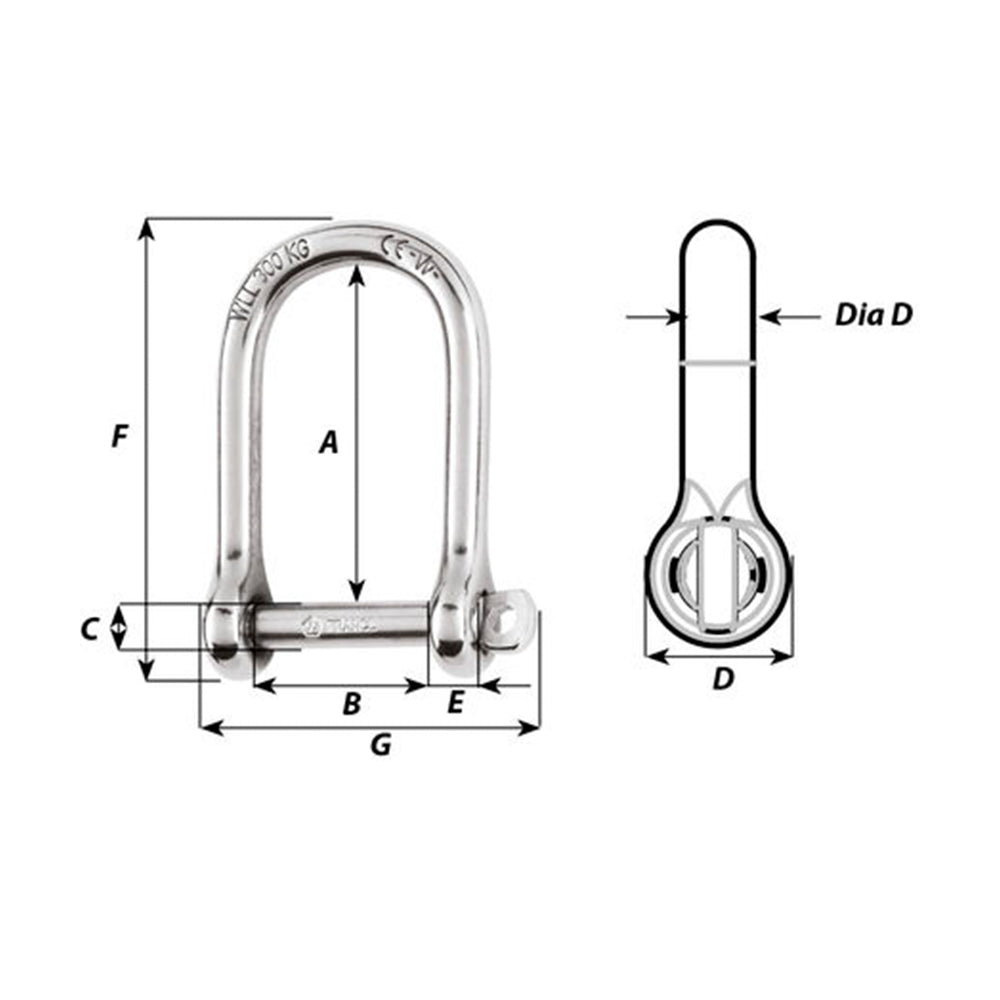

| Description | Imperial | Metric |
|---|---|---|
| Material | 316 stainless steel grade | 316 stainless steel grade |
| Working load | 1785.74 lb. | 810.00 kg. |
| WLL | 1190.50 lb. | 540.00 kg. |
| Breaking Load | 5952.48 lb. | 2700.00 kg. |
| Weight | 0.15 lb. | 67.00 g. |
| A | 2 1/4 in. | 57.00 mm. |
| B | 1 1/4 in. | 32.00 mm. |
| C | 5/16 in. | 8.00 mm. |
| D | 5/8 in. | 17.00 mm. |
| D diameter | 5/16 in. | 8.00 mm. |
| E | 5/16 in. | 8.00 mm. |
| F | 3.00 in. | 77.00 mm. |
| G | 2 1/4 in. | 57.00 mm. |
