DESCRIPTION
DESCRIPTION

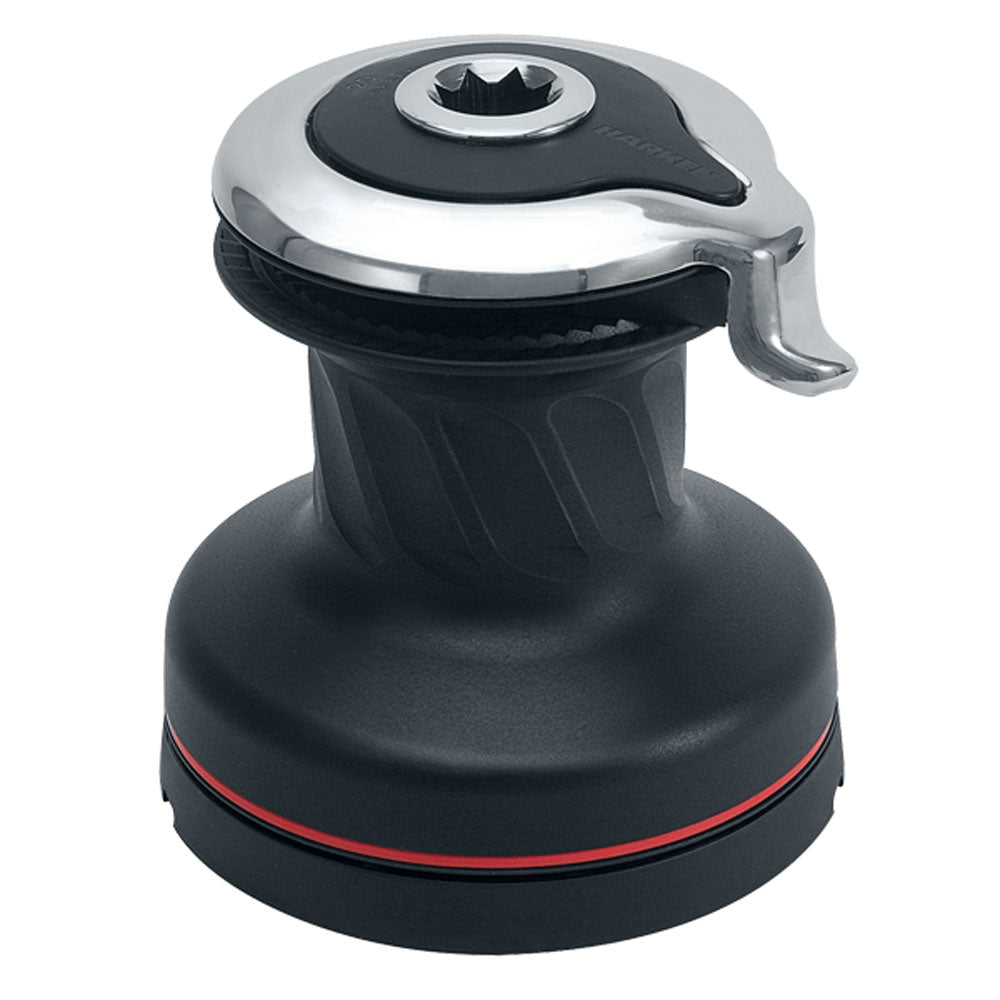

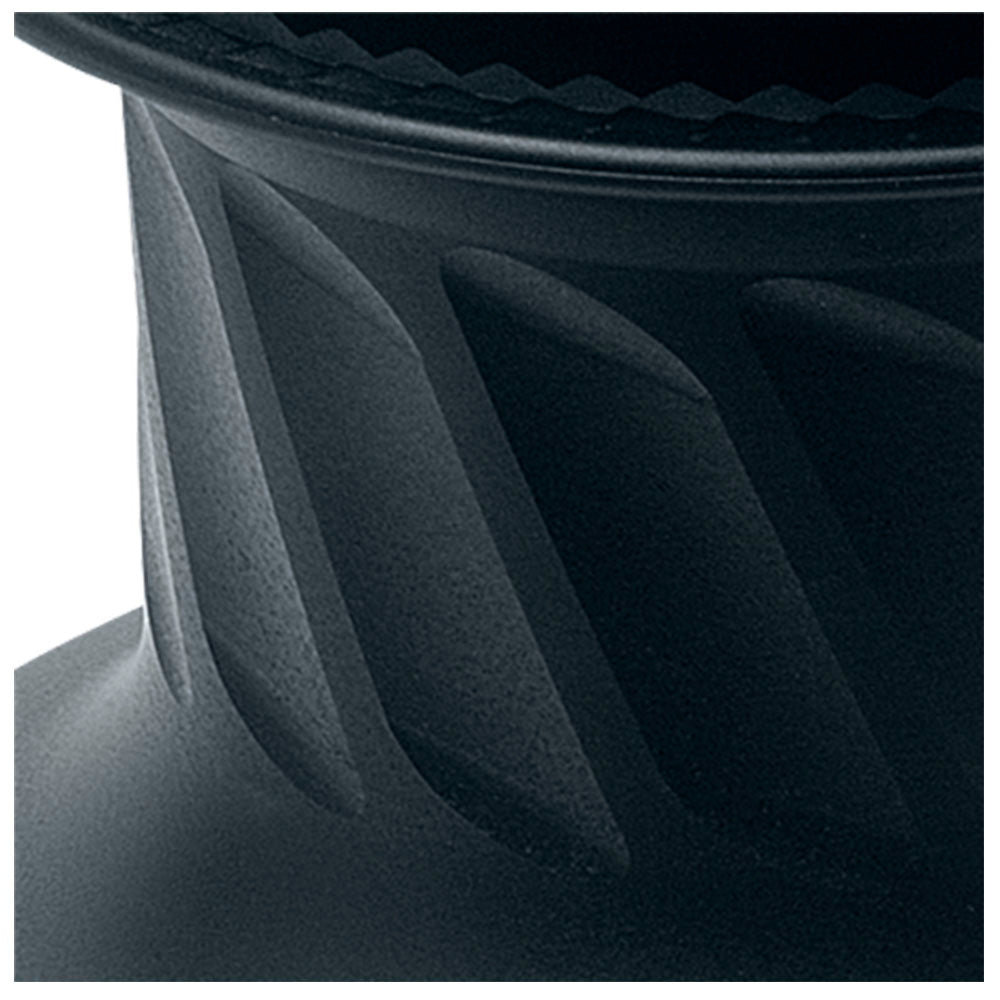

The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Our Part # HAR602STA | Mfr. Part # 60.2STA
FEATURES
FEATURES
- Radial self-tailing winch, size 60.
- Lightweight black anodized aluminum finish.
- Features efficient two-speed gearing.
- Provides powerful, controlled line handling.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Material | Aluminum | |
| Weight | 22.5 lb | 10.2 kg |
| Maximum Line Ø | 5/8 in | 16 mm |
| Fasteners | 5/16 SH in | M8 SH mm |
| Fastener Circle | 8 in | 204 mm |
| Minimum Line Ø | 5/16 in | 8 mm |
| Height | 9 11/16 in | 246 mm |
| Number of Fasteners | 6 | |
| Configuration | Self-tailing | |
| Speed | 2 | |
| Drum Ø | 4 3/4 in | 12 cm |
| Base Ø | 9 5/16 in | 236 mm |
| Line Entry Height | 4 9/16 in | 116 mm |
| Gear Ratio - 1 | 4.8 | |
| Gear Ratio - 2 | 14.4 | |
| Power Ratio - 1 | 20.3 | |
| Power Ratio - 2 | 61 | |
| Available Power | Manual | |
