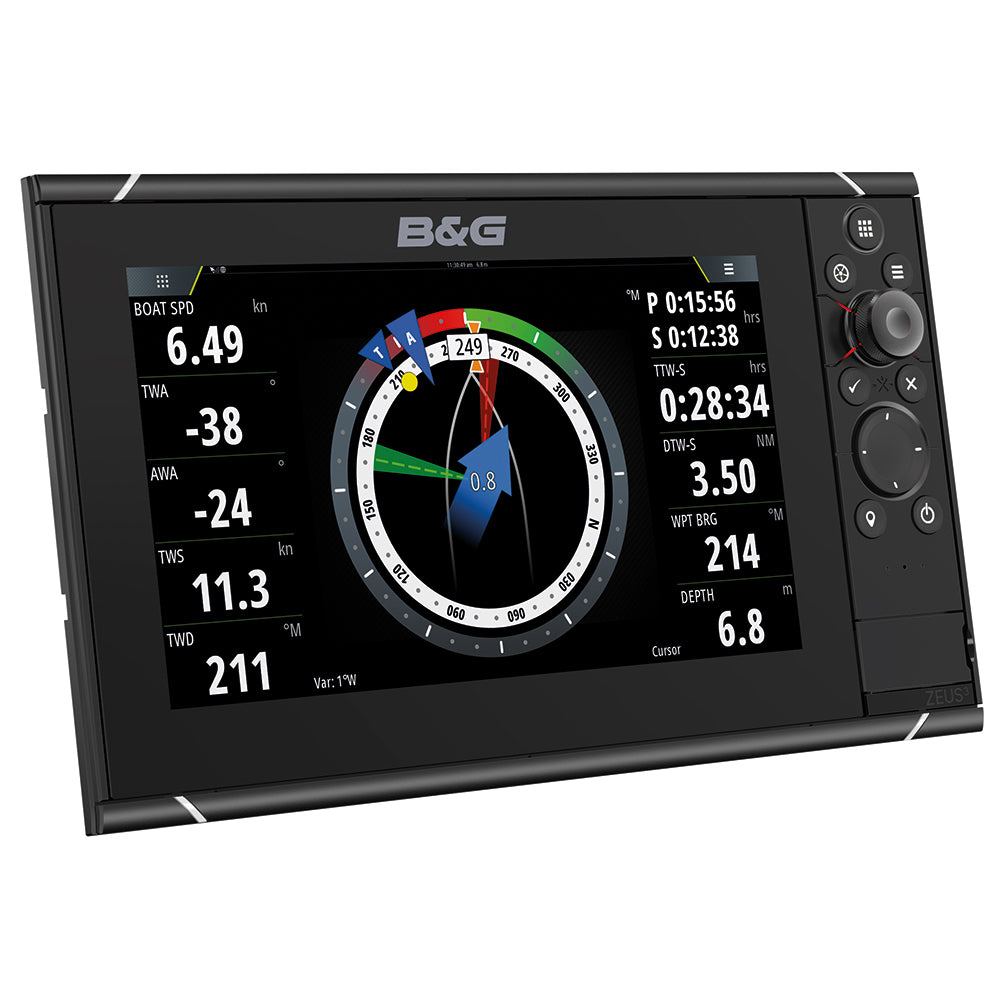

B&G Zeus™ 3S 16 (16" Multi-Function Display, GPS, Radar) (000-15410-001)

SKU: BNG-000-15410-001  |  Manuf. Code: 000-15410-001
$5,999.00 USD

Description

Designed just for sailing, the Zeus 3S chartplotters offer super-fast response times, delivering the information you need, when you need it. Easy-to-use, the Zeus 3S comes with B & G’s unique sailing features built-in; making it simple to navigate, plot routes, add waypoints and view key sailing or racing data, at the touch of a button or screen.

The Zeus 3S 16” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 16-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.

Features

  • Fast and responsive: The most advanced sailing chartplotter and navigation display.
  • SolarMAX IPS screens: Best-in-class visibility from all angles, even with polarized glasses.
  • Performance network integration: Connects with B&G modules such as Halo Radar, Autopilot, ForwardScan, NMEA 2000, and 0183.
  • Full sailing suite: Includes SailSteer, PredictWind, RacePanel, LayLines, and SailingTime.
  • Multi-panel display: Up to 6-way split screen for simultaneous data visualization.
  • Wireless connectivity: Connects with smartphones, tablets, and internet hotspots.
  • Built-in Wi-Fi: Enables seamless data sharing and remote access.

Technical Information

DescriptionSpecs
Backlight ColorWhite
Display Resolution1920 x 1080
Screen Brightness1200 nits
Viewing Angles80° top/bottom, 80° left/right
BluetoothInternal
NMEA 2000 Connectivity1 x NMEA 2000 Micro-C port, 1 LEN
PC ConnectivityNo
SD Card Storage2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Video2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output
Steering ModesAuto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Recommended Fuse Rating8.0A
HumidityIEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
Operating Temperature Range-15°C to +55°C (5° F to 131° F)
WaterproofratingIPX6 and 7
