Selden Block Adaptors — Selection Guide

What the Adaptor Is For

Designed for attaching Selden plain bearing blocks (PBB) onto deck rings and mast bases with vertical and rotating shafts, as commonly used by other spar manufacturers.

Adaptor Specifications

Adaptor Art. No. Safe working load (kg) Breaking load (kg) Fits shaft (Ø mm) Compatible with A (Ø mm) Fork W (mm) Clevis pin, block (Ø mm) Clevis pin (Ø mm) C-c clevis pins L (mm)
406-060-01 1000 2000 Ø12 × 34 PBB60 12 14 6 6 22 View part →
407-060-01 1500 3000 Ø14 × 39 PBB70 12 14 8 8 25 View part →
408-060-01 2000 4000 Ø14 × 39 PBB80 18 14 10 8 25 View part →

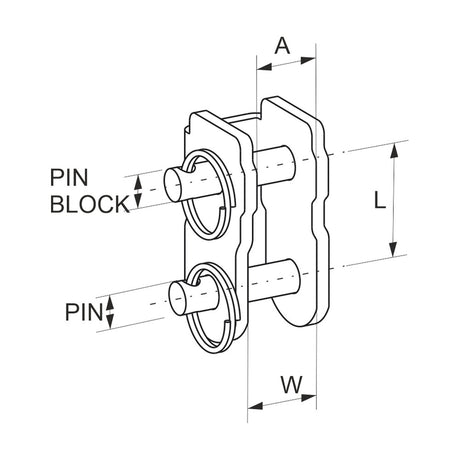

Selden block adaptor drawing showing dimensions A, W and L, the block pin and the shaft pin

Complete Single Blocks with Adaptor

Art. No. Block
406-001-60R PBB60 View block →
407-001-60R PBB70 View block →
408-001-60R PBB80 View block →
