Selden Cam Cleats — Selection Guide

Cam Cleats for Lines from 3 mm to 12 mm

The cam geometry allows vertical line entry while increasing the active area of the teeth for grip. Aluminium cams hold the line better; the composite version saves weight. Both share the same footprint and standard hole spacings, for a quick upgrade.

Cam Cleat Specifications

Art. No. Cam cleat Weight (g) Safe working load (kg) Min line (mm) Max line (mm) Hole spacing c-c (mm) Fasteners
433-151-01R 27 mm aluminium 31 90 3 7 27 2 × M4 View cleat →

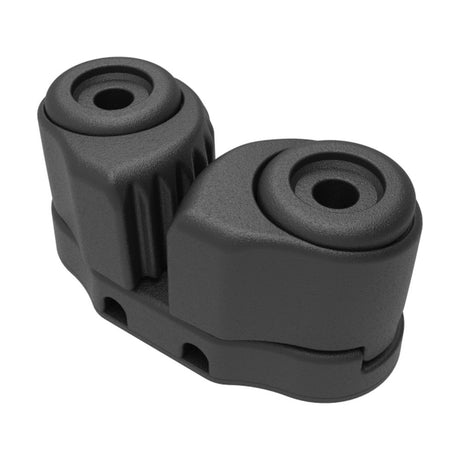

433-165-01R 27 mm composite 20 60 3 7 27 2 × M4 View cleat →

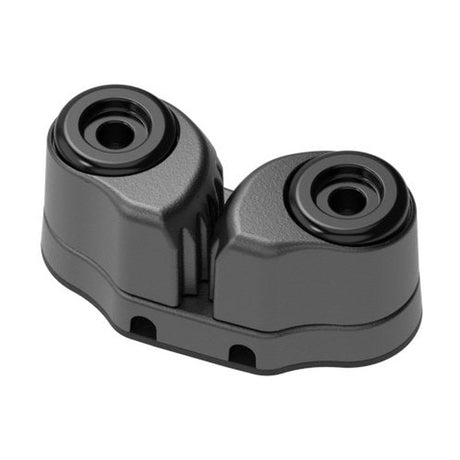

433-351-01R 38 mm aluminium 70 180 4 12 38 2 × M5 View cleat →

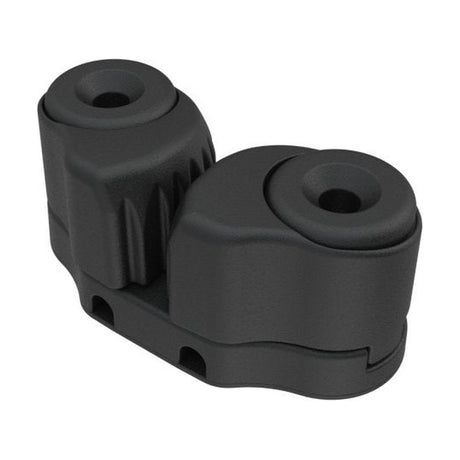

433-365-01R 38 mm composite 42 120 4 12 38 2 × M5 View cleat →

Accessories for 27 mm and 38 mm Cleats

For the 27 mm cleat

Art. No. Accessory

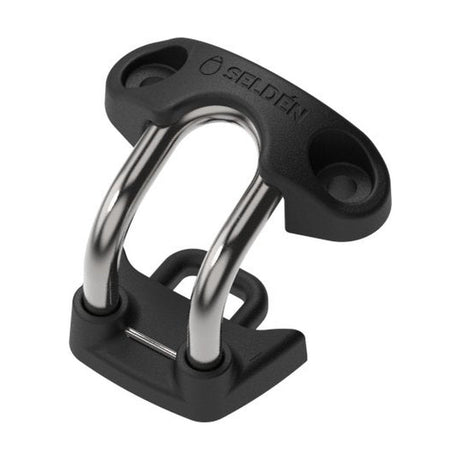

433-157-01R Fairlead View part →

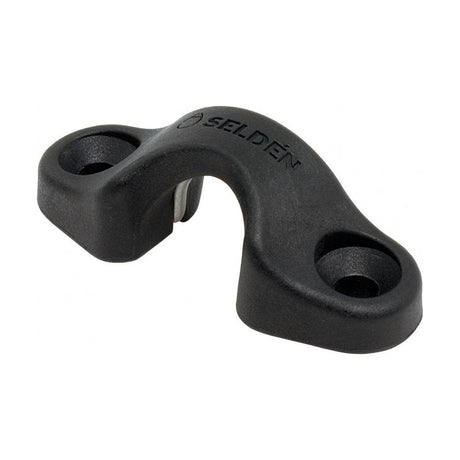

433-108-01R Top guide View part →
433-115R Riser View part →
433-116-01R Wedge kit View part →
433-160-01R Line guide View part →
433-119-01R Bullseye View part →

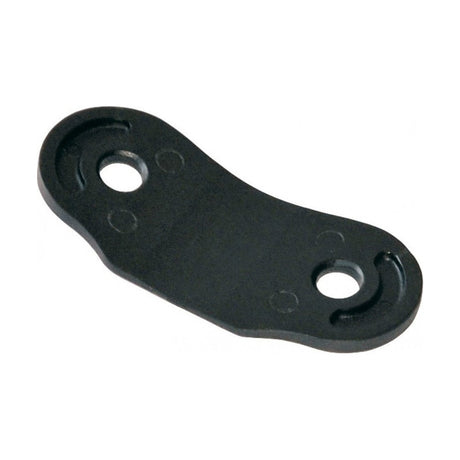

319-844R Curved base View part →
433-118R Nut recess View part →

For the 38 mm cleat

Art. No. Accessory
433-357-01R Fairlead View part →

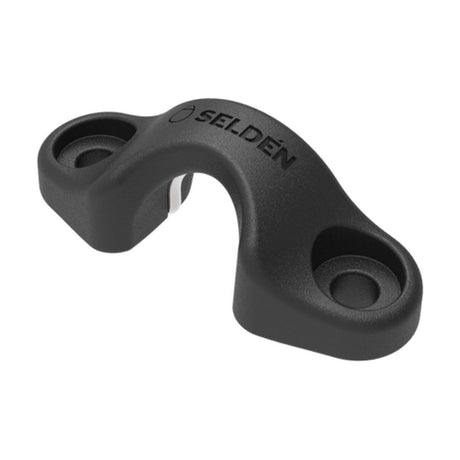

433-224-01R Top guide View part →

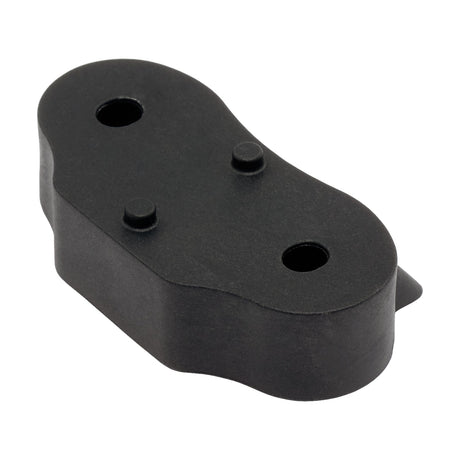

433-215R Riser View part →

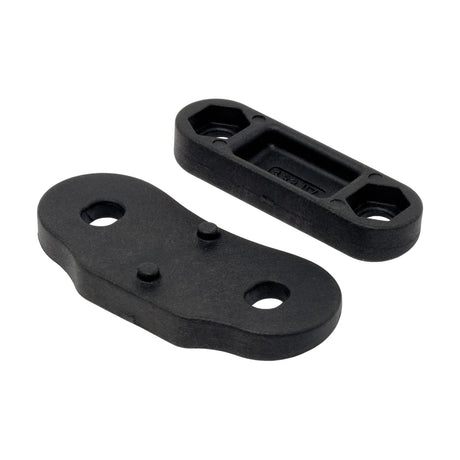

433-216-01R Wedge kit View part →

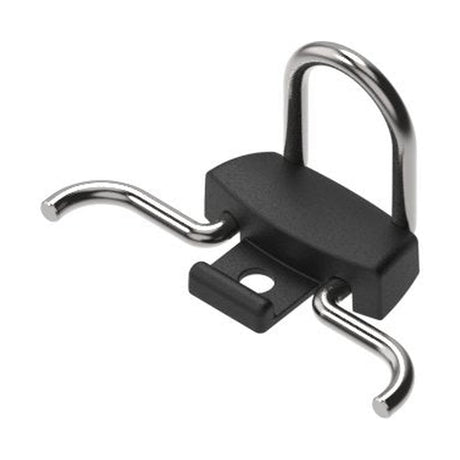

433-360-01R Line guide View part →
433-223-01R Bullseye View part →

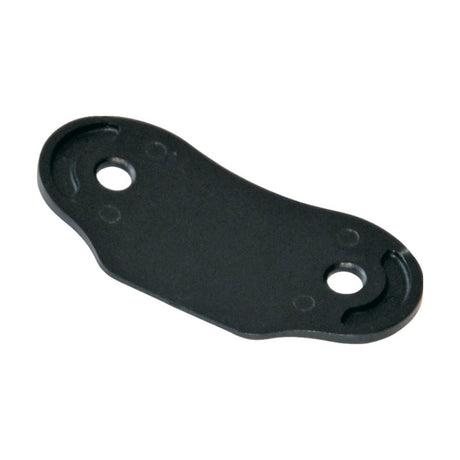

319-823R Curved base View part →
433-414R Nut recess View part →

The fairlead and line guide fit together on the cleat (cam cleat with fairlead and line guide).

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
