SELECTION GUIDE

Size Selden blocks and traveller cars by boat length: the dimensioning charts for main sheet, main, genoa and spinnaker halyard blocks, and main sheet, genoa and selftacker cars.

DocumentSelden Deck Hardware Dimensioning Guide
FormatPDF · 3 pages · 0.1 MB
LanguageEnglish
Download PDFView Collection
How to ReadSheet & Halyard BlocksCarsProducts
Selden Deck Hardware Dimensioning Guide

Reading the Charts

  • Each chart plots boat length (ft, 10 to 70) against the block or car size Selden recommends for that position.
  • Block sizes run BBB 20, BBB 30, BBB 40 (ball bearing), PBB 50, PBB 60, PBB 70, PBB 80, PBB 100 (plain bearing) and RBB 60, RBB 80 (roller bearing).
  • Car charts use System 22, System 30 (plain, high load, ball bearing, performance, performance toggle, performance fixed block, single, double) and System 42.
  • Main sheet charts are split by sheeting position: end sheeted (S>90% of E) and mid sheeted (S>50% of E).
  • Where bars overlap, more than one size covers your length.

Read the bars directly on the charts below; no values are transcribed from them.

Main Sheet and Halyard Blocks

Main sheet, end sheeted (S>90% of E)

Selden deck hardware dimensioning chart: Main sheet, end sheeted (S>90% of E), block or system size against boat length in feet

Main halyard mast base block

Selden deck hardware dimensioning chart: Main halyard mast base block, block or system size against boat length in feet

Main sheet, mid sheeted (S>50% of E)

Selden deck hardware dimensioning chart: Main sheet, mid sheeted (S>50% of E), block or system size against boat length in feet

Genoa halyard mast base block

Selden deck hardware dimensioning chart: Genoa halyard mast base block, block or system size against boat length in feet

Spin halyard mast base block

Selden deck hardware dimensioning chart: Spin halyard mast base block, block or system size against boat length in feet

Spin halyard topmast block

Selden deck hardware dimensioning chart: Spin halyard topmast block, block or system size against boat length in feet

Traveller and Sheet Cars

Main sheet car, end sheeted (S>90% of E)

Selden deck hardware dimensioning chart: Main sheet car, end sheeted (S>90% of E), block or system size against boat length in feet

Genoa sheet car

Selden deck hardware dimensioning chart: Genoa sheet car, block or system size against boat length in feet

Main sheet car, mid sheeted (S>50% of E)

Selden deck hardware dimensioning chart: Main sheet car, mid sheeted (S>50% of E), block or system size against boat length in feet

Selftacker sheet car

Selden deck hardware dimensioning chart: Selftacker sheet car, block or system size against boat length in feet

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.

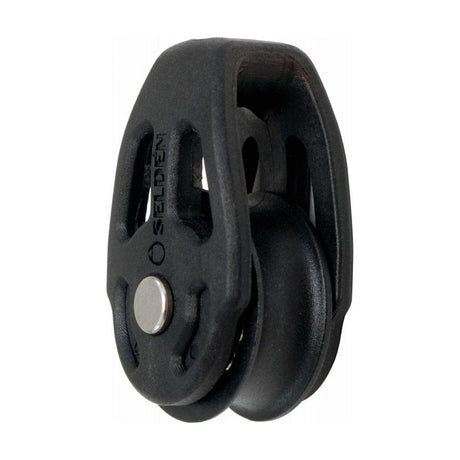

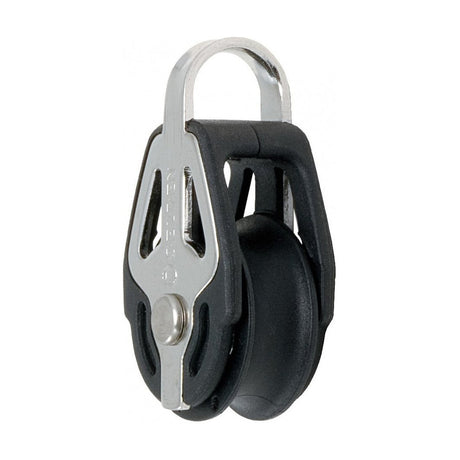

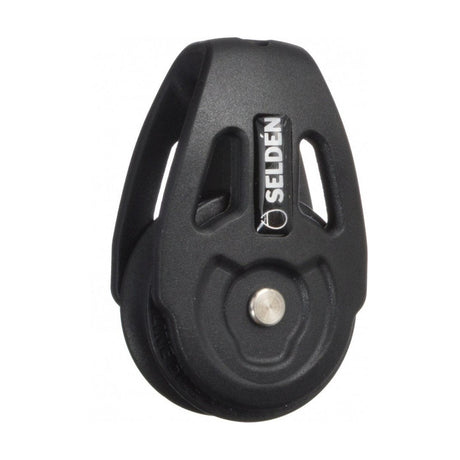

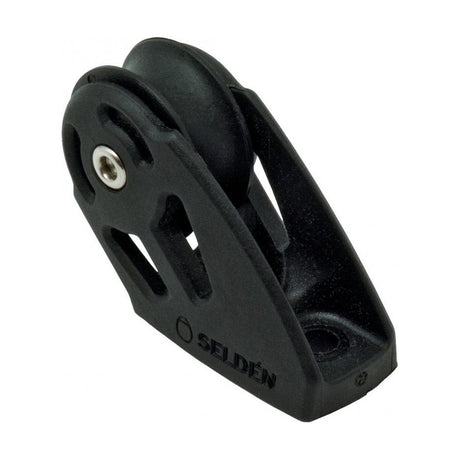

Products in this Selection Guide
