Selden Dinghy Product Catalogue (PDF)

SELECTION GUIDE

What the Selden dinghy catalogue covers and how to pick from it: mast and boom sections by class, mast heels and spreader brackets by section, spinnaker pole tubes, the Furlex 20S / 30S dinghy furlers and the class reference guide with mast, boom and pole art. numbers.

DocumentSelden Dinghy Product Catalogue

FormatPDF · 52 pages · 9.5 MB

LanguageEnglish

Download PDF View Collection

Contents Mast Sections Boom Sections Heels & Spreaders Poles Dinghy Furlers Class Guide Products

What the Catalogue Covers

Selden dinghy rig systems and accessories (595-812-E, Version 6). Selden dinghy rigs were sold under the Proctor name until 2004. Page numbers below are the numbers printed on the pages; in a PDF viewer add 2.

Section	Printed pages
Masts	5–30
Aluminium mast sections; top tapering	7–9
Carbon masts and sections; unique features	10–13
Head fittings, halyard locks, sheave boxes	14–16
Hound fittings, lower shroud attachment	18–19
Spreader systems, brackets and end fittings	20–23

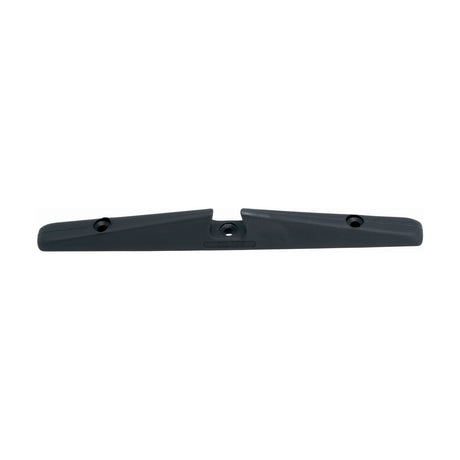

Pole attachments, sail feeders	24
Gooseneck/boom brackets	26

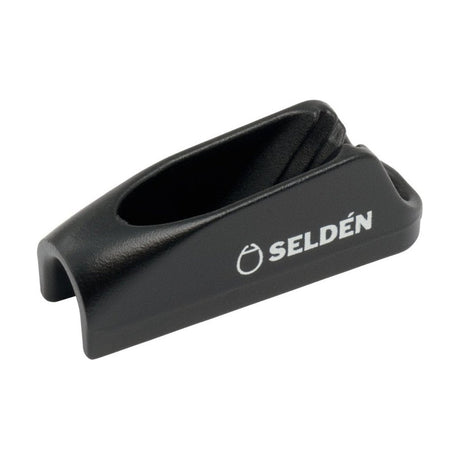

Deck collars, cleat options, kicker attachments	27
Mast feet and heel	28–29
Booms	31–37
Boom sections (aluminium and carbon)	32

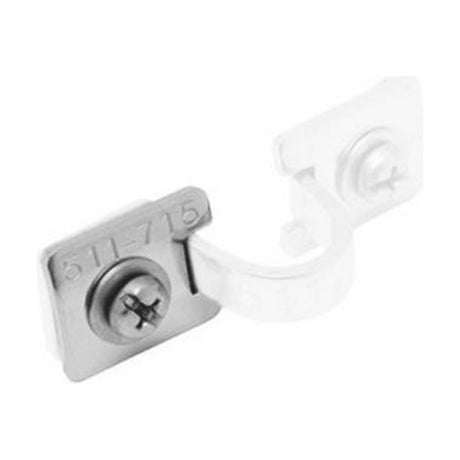

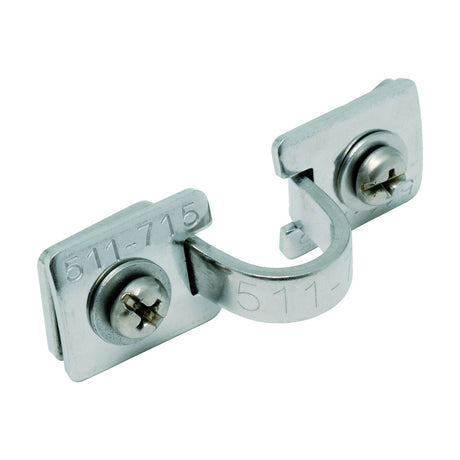

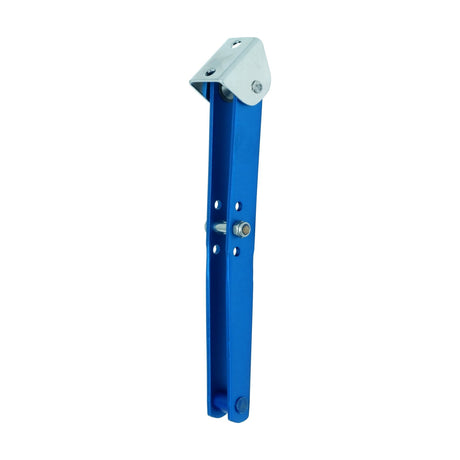

Boom fittings, sliders and accessories	33–34
Carbon boom fittings	35
Single-line reefing; gnav system	36–37
Spinnaker poles: pole sections and fittings	39–41

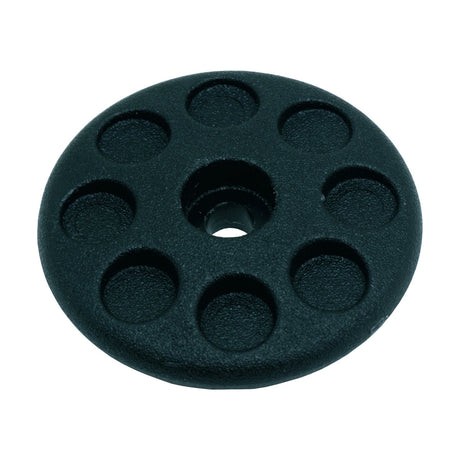

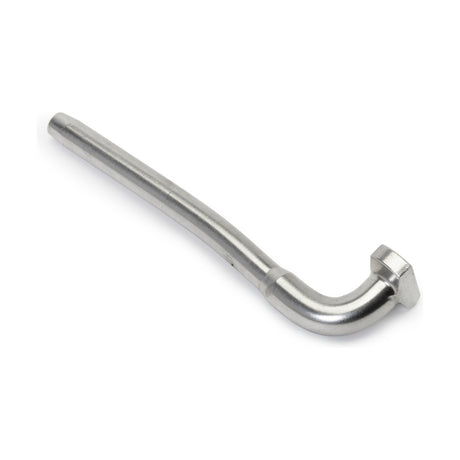

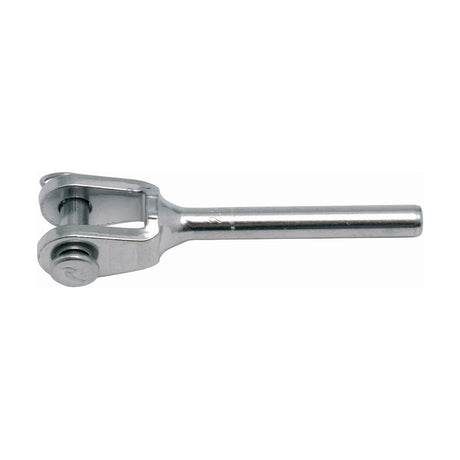

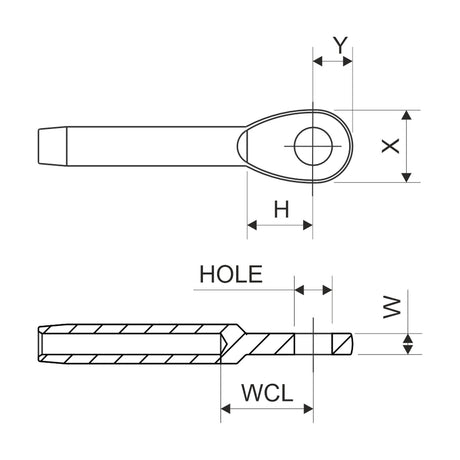

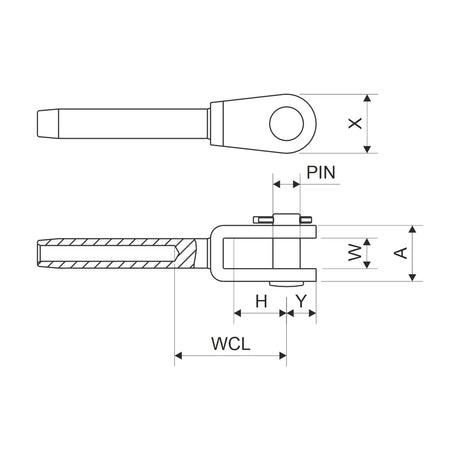

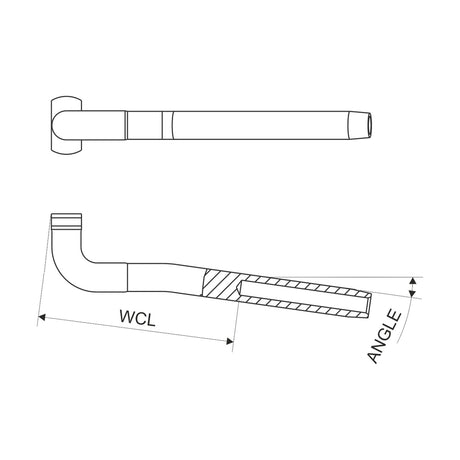

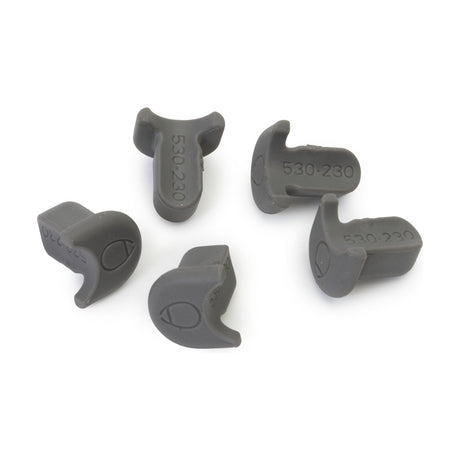

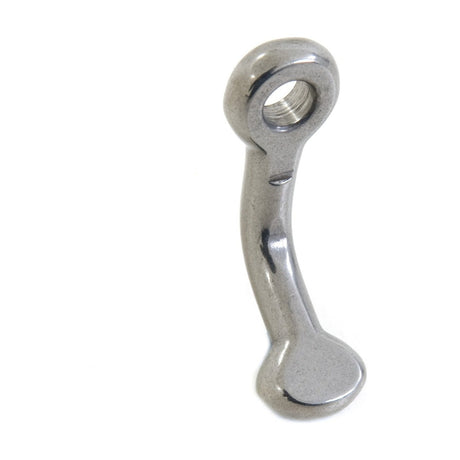

Rig and accessories: rigging parts, trapeze parts, rig tension gauges, Furlex 20S / 30S dinghy jib furlers, accessories	43–47
Class reference guide	48

Choosing a Mast Section

Selden says choosing the right section for your class, crew weight and sail cut is vital: check your class data sheet or ask us.

Aluminium (current sections)

Section	Code	Weight (kg/m)	Fore/aft (mm)	Athwart (mm)	Stiffness fore/aft (cm⁴)	Stiffness athwart (cm⁴)	Suitable for
2420	C060	0.78	61	50	10.7	7.5	Cadet, Feva, Snipe, Vaurien, Mirror
Electron	C061	1	59.5	66	12.2	17.9	Splash, Flash
Lambda	C063	0.88	63	51	13.6	9.8	Mirror, Vaurien, Teeny
C	C065	0.9	65	54	14.1	9.8	Lark, Solo, Firefly
Kappa	C067	0.92	67	55	16	12	420, Flying Junior
Zeta	C068	0.97	69	57	18.6	12.9	420, 470
E	C070	1.15	69.9	53.9	18.9	13.7	Flying Dutchman, Wanderer, Wayfarer
Cumulus	C069	1.04	70.5	58.7	20.41	14.4	420, 470, 505, Albacore, Hornet, Fireball, Scorpion, Solo, RS200, RS400, GP14, Laser Vago
Alto	C071	1.073	70.5	59.5	21.49	14.96	470, 505, Fireball
D Plus	C074	1.07	72.9	57.2	20	13.8	Enterprise, Solo
Epsilon	C072	1.09	72	57	21.8	15.6	Flying 15, 470, Osprey, Pirat, RS Vision
Gamma	C075	1.25	75	57.4	27.1	16.9	Flying Dutchman, Nomad, Topper Omega

Carbon

Section	Code	Weight (kg/m)	Fore/aft (mm)	Athwart (mm)	EIY (GNmm²)	EIX (GNmm²)	Suitable for
Series II	CC054	0.511-1.008 (as printed)	54	54	6-19	6-14	Contender, Merlin Rocket, National 12, Phantom
Orbis	CC059	0.42-0.64	60	60	8-23	8-23	OK, RS800
Series III	CC064	0.43-0.65	66	52	10-16	7-13	59er, Contender, FD, Int. Canoe, International 14, Merlin Rocket, Musto Skiff, Phantom
Series IV	CC077	0.83	81	63	28-31	18-23	Artemis 20, Backman 18, 18ft Skiff, Skud

Carbon masts are filament wound from T700 or TZ pre-preg and autoclave cured; Series III and IV are teardrop sections. Each mast has the Selden step-down tapered topmast.

Choosing a Boom Section

Section	Code	Weight (kg/m)	Height / fore-aft (mm)	Width / athwart (mm)	Stiffness fore/aft (cm⁴)	Stiffness athwart (cm⁴)	Suitable for
2520	B063	1.06	63	53	20	11	Solo, Vaurien, Firefly
2628	B071	1	72	63	26	16	420, Contender, Enterprise, Flying Junior, GP 14, Lark, Pirat, Snipe
Olympus	B072	1.02	72	66	29	17	420, 470, Scorpion, Comet Race
2229	B075	1.05	75	55	30	14	Contender, Europe, Snipe
2633	B085	1.06	85	66	40	18	505, Albacore, Fireball, Osprey, Flying Dutchman, Wayfarer, Snipe, Vaurien
Carbon	BC086	0.511-1.008 (as printed)	86	62	17-28	27-45	British Moth, National 12, Merlin Rocket, Phantom, Contender, Osprey, 505, International 14

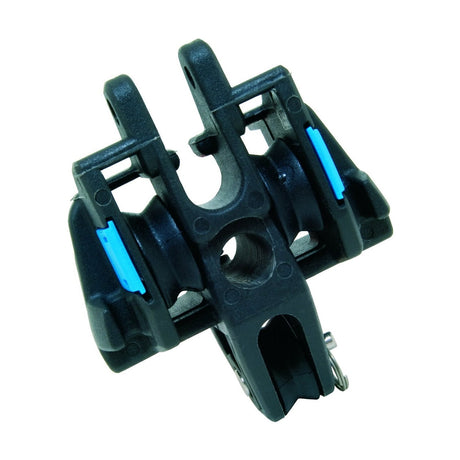

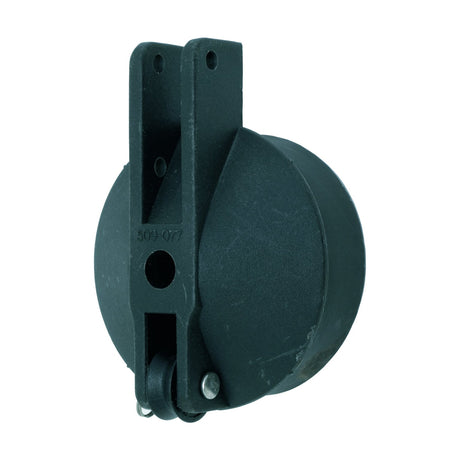

All boom sections have an integral sail track and a lower in-boom track for mainsheet and kicking strap attachments. Inboard and outboard boom ends fit 2628 / 2633 / 2632 / Olympus; 2520 has its own ends (printed page 33).

Mast Heels, Adaptors & Spreader Brackets by Section

Three interchangeable composite heels (standard, hinging and multi-sheave) plus a cast-aluminium rotating heel work with a series of section adaptors.

Art. No.	Description	Suitable for section
502-601-01	Tenon heel assy	Series II	Ask us to source it →
502-517	Standard tenon (large)	Cumulus, Epsilon, Kappa, F, Gamma, D, D Plus, Orbis, Series 3, Series 4	Ask us to source it →
502-518	Standard tenon (small)	E, C, Lambda	Ask us to source it →
502-554	Hinging heel	Cumulus, Epsilon, Kappa, F, Gamma, D, D Plus, Orbis, Series 3, Series 4	Ask us to source it →
502-519-02	4 sheave mast heel	Cumulus, Epsilon, Kappa, F, Gamma, D, D Plus, Orbis, Series 3, Series 4	Ask us to source it →
502-519-03	6 sheave mast heel	Cumulus, Epsilon, Kappa, F, Gamma, D, D Plus, Orbis, Series 3, Series 4	Ask us to source it →
502-520-02	3 sheave mast heel	E, C, Lambda	Ask us to source it →
502-520-03	5 sheave mast heel	E, C, Lambda	Ask us to source it →
502-140-01	Rotating mast heel	Cumulus, Epsilon, Kappa, F, Gamma, D, D Plus, Orbis, Series 3, Series 4	Ask us to source it →
510-158-01	Hinging step for use with hinging heel 502-554		View part →
510-148-01	Mast step (composite)		View part →
510-155-01	Heavy Duty Aluminium Mast Step		View part →
510-155-02	Heavy Duty Aluminium Mast Step with fasteners		View part →
502-501	Adaptor	F	Ask us to source it →
502-503	Adaptor	Gamma	Ask us to source it →
502-504	Adaptor	Epsilon	Ask us to source it →
502-506	Adaptor	Cumulus	Ask us to source it →
502-507	Adaptor	Kappa	Ask us to source it →
502-510	Adaptor	D and D Plus	Ask us to source it →
502-511	Adaptor	E	Ask us to source it →
502-513	Adaptor	C	Ask us to source it →
502-514	Adaptor	Lambda	Ask us to source it →
502-551	Adaptor	Series 3	Ask us to source it →
502-528	Adaptor	Series 4	Ask us to source it →
504-360	Composite front sheave for use with all sheave heels		View part →
504-361	Aft centre sheave for items 502-519-02 / 502-519-03		View part →
504-362	Aft outer sheave for use with all sheave heels		View part →
166-219	Aft stainless steel shaft pin (8mm x 48mm) for all sheave heels		View part →
166-220	Forward stainless steel shaft pin (4mm x 32mm) for all sheave heels		View part →

Spreader brackets

Art. No.	Bracket	Mast section
522-144-01	Fully adjustable spreader bracket	Cumulus, Epsilon, Gamma	Ask us to source it →
522-145-01	Fully adjustable spreader bracket	Kappa and Series 3	Ask us to source it →
522-208-01	Spreader bracket (carbon fully adjustable spreaders)	Series II	Ask us to source it →
522-142-01	Vernier spreader bracket	Cumulus, Epsilon, Gamma	Ask us to source it →
522-143-01	Vernier spreader bracket	C and E	Ask us to source it →
522-146-01	Vernier spreader bracket	D Plus, Kappa, CC064 and Lambda	Ask us to source it →
522-147-01	Vernier spreader bracket	CC059 (Orbis)	Ask us to source it →
522-168-02	Vernier spreader bracket	CC077 (Series 4)	Ask us to source it →
522-181-01	Spreader bracket 2420 complete with fixings (Snipe)	2420	Ask us to source it →

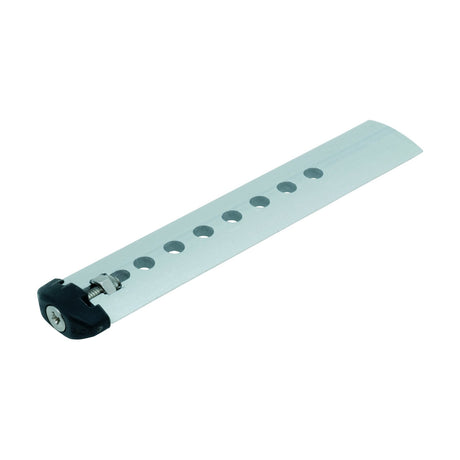

Fully adjustable spreaders come in 300–500 mm lengths (aluminium 503-191-01 to 503-199-01, carbon 503-800-01 to 503-808-01); spreader adjusters (pair) 503-767-01. The vernier system sets 0º to 35º of sweep in 2º increments. Full lists on printed pages 21–23.

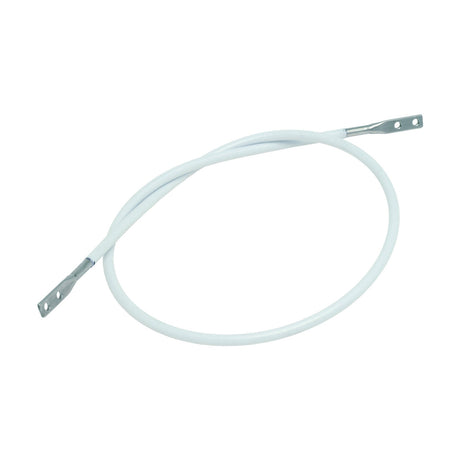

Spinnaker Pole Tubes

Art. No.	Description	Length max.
535-510-01	25 mm parallel alloy tube	5 m	Ask us to source it →
535-511-01	32 mm parallel alloy tube	5 m	Ask us to source it →
535-512-03	38 mm tapered alloy pole tube	1480-1825 mm	Ask us to source it →
535-513-06	42 mm tapered alloy pole tube	1670-2000 mm	Ask us to source it →
535-513-04	42 mm tapered alloy pole tube	1850-2230 mm	Ask us to source it →
535-513-05	42 mm tapered alloy pole tube	2240-2480 mm	Ask us to source it →
535-547-02	33 mm carbon pole tube	2600 mm	Ask us to source it →
535-548-01	39 mm carbon pole tube	1730 mm	Ask us to source it →
535-548-02	39 mm carbon pole tube	2000 mm	Ask us to source it →
535-548-03	39 mm carbon pole tube	2600 mm	Ask us to source it →
535-548-04	39 mm carbon pole tube (super-stiff)	2600 mm	Ask us to source it →

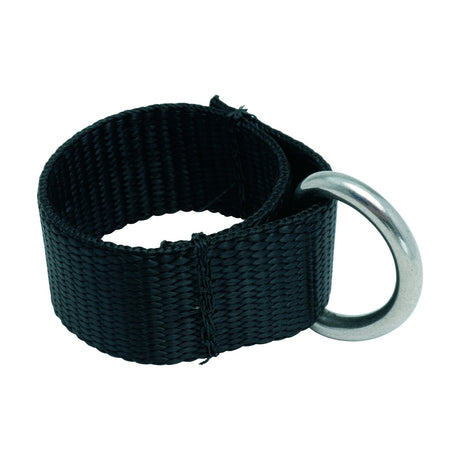

Tapered poles (38 and 42 mm centre diameter) taper to 25 mm at each end. The 32 mm and 39 mm tubes take the standard pole end through an adaptor (534-837 / 534-834); pole end with stainless steel plunger 534-830-01.

Furlex 20S and 30S Dinghy Jib Furlers

Art. No.	Description

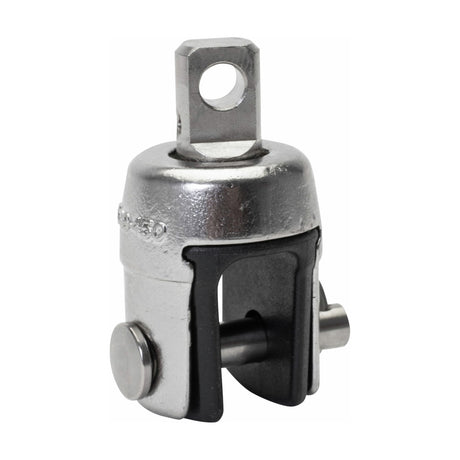

539-450-01	Top swivel Furlex 20S	View part →
539-450-02	Top swivel Furlex 20S complete with guide	View part →
539-455-01	Furlex 20S dinghy jib furler	View part →
539-455-02	Furlex 20S dinghy jib furler with rope	View part →
539-490-01	Furlex 30S lower swivel	Ask us to source it →
539-480-01	Furlex 30S top swivel	Ask us to source it →

Furlex 30S specification	Lower swivel 539-490-01	Top swivel 539-480-01
Safe working load	900 kg	900 kg
Lower pin diameter	8 mm	8 mm
Jaw width	8 mm	14 mm
Drum / overall diameter	11 mm (drum, as printed)	38 mm (overall)
Rope capacity	24 turns of 4 mm	–

Furlex 20S: twin bearing units with 4 mm stainless steel balls, glass-filled composite with moulded-in stainless reinforcement. Furlex 30S is the higher-load, higher-capacity version for larger dinghies and keelboats, with 5 mm balls; it can be mixed with the Furlex 20 top swivel.

Class Reference Guide

Mast section, mast art. no., rig pack, boom section, boom art. no. and pole art. no. for each class listed by Selden (420, 470, 505, Albacore, Contender, Enterprise, Fireball, Flying Dutchman, Flying 15, GP14, International 14, Merlin Rocket, National 12, Solo, Wayfarer and more). Printed page 48.

Selden dinghy class reference guide: mast, rig pack, boom and pole art. numbers by class

Key: S2 CRB = Series 2 Carbon, S2 CRB HM = Series 2 Carbon High Modulus, S3 CRB = Series 3 Carbon, S3 CRB HM = Series 3 Carbon High Modulus, LA = Lambda, KA = Kappa, CU = Cumulus, ALT = Alto, EP = Epsilon, GA = Gamma, SL = Sleeved, OLY = Olympus, SC = carbon pole, E = lift eye fitted.

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
