Selden Furlex 100S, 200S, 300S, 400S & 500S — Selection Guide

Furlex 100S and 200S–500S

Discontinued model – documents and spare parts as printed.

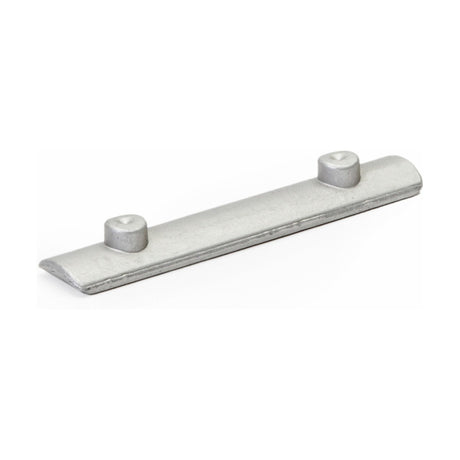

  • Centred, insulated forestay and fully insulated joining sleeves: easier furling, less wear, no corrosion risk.
  • Patented load-distributor for easy furling and bearing life; lightweight halyard swivel.
  • Marine stainless sail feeder; composite connector.

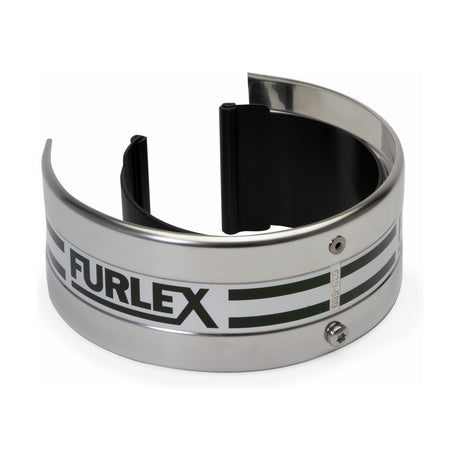

  • Tack swivel with a free-turn; twin grooves and split drum for fast sail changes and racing.
  • Line-guide system centres the furling line and spools it evenly on the drum.
  • 200S–500S: optional fully integral rigging screw, adjusting through 60 mm, 80 and 100 mm depending on size.
  • 100S: no internal rigging screw; an optional external rigging screw (6 mm wire) mounts under the drum.

Furlex 100S (595-801-E)

Art. No. (standard version) Forestay Ø (mm) Max forestay length (m)
027-019-51 4 8.1
027-019-52 4 10.5
027-019-53 5 8.1
027-019-54 5 10.5
027-019-55 5 12.9
027-019-56 6 10.5
027-019-57 6 12.9
Forestay Ø (mm) Max RM at 30°, masthead (kNm) Max RM, fractional (kNm) Approx. displ., masthead (t) Approx. displ., fractional (t) DH DW DD CB E F ID W2 D2 clevis pin Forestay adjustment Ø (mm) Extension link H (mm) Halyard sheave box Art. No.
4 6.5 8 1.4 1.7 100 80 152 60 280 360 17 8.5 8 – – 505-004-10
5 10 14.5 2.1 3 100 80 152 60 280 360 19 11 10 – – 505-004-10
6 17 22 3.5 4 100 80 152 60 280 360 24 11 10 50 90 505-006-10

Dimensions in mm. Luff groove: internal diameter (DLG) 6.0 mm, width (WLG) 3.0 mm.

Furlex 200S–500S Art. Numbers (595-802-E)

Furlex Forestay Ø (mm) Max forestay length (m) Art. No. standard version Art. No. incl. rigging screw
200S 6 10.6 031-021-51 031-021-61
200S 6 13.0 031-021-52 031-021-62
200S 6 15.4 031-021-53 031-021-63
200S 7 13.0 031-021-54 031-021-64
200S 7 15.4 031-021-55 031-021-65
200S 7 17.8 031-021-56 031-021-66
200S 8 15.4 031-021-57 031-021-67
200S 8 17.8 031-021-58 031-021-68
300S 8 15.5 039-027-51 039-027-61
300S 8 17.9 039-027-52 039-027-62
300S 10 15.5 039-027-53 039-027-63
300S 10 17.9 039-027-54 039-027-64
300S 10 20.3 039-027-55 039-027-65
400S 12 17.7 049-034-51 049-034-61
400S 12 20.1 049-034-52 049-034-62
400S 12 22.5 049-034-53 049-034-63
400S 14 20.1 049-034-54 049-034-64
400S 14 22.5 049-034-55 049-034-65
500S 16 23.0 060-046-56 060-046-66
500S 16 27.8 060-046-57 060-046-67

Sizing: Righting Moment and Rod Options

Furlex Forestay Ø (mm) Rod Ø (mm) Navtec OYS** (Riggarna) BSI Max RM at 30°, masthead (kNm) Max RM, fractional (kNm) Approx. displ., masthead (t) Approx. displ., fractional (t)
200S 6 -8 (5.7) X X X 19 23 3.9 4.5
200S 7 -10 (6.4) X X X 27 34 5.5 7
200S 8 -12 (7.1) X X 37 45 7.5 9
200S 8 -15 (7.5) X* X
300S 8 -12 (7.1) X X 40 50 8 10
300S 8 -15 (7.5) X X
300S 10 -17 (8.4) X X 70 80 14 15
300S 10 -22 (9.5) X X X
400S 12 -30 (11.1) X X X 120 160 20 26
400S 14 -30 (11.1) X X 180 190 28 30
400S 14 -40 (12.7) X X X
500S 16 -40 (12.7) X X X 230 250 38 40
500S 16 -48 (14.3) X X X

* The male part of this rod terminal is too large to pass through the luff extrusions: the rod can only be cold-headed at its upper end after it has been pulled through the assembled extrusions. The extrusion must be 200 mm (8") shorter than the stay at the top to make room for the cold-heading machine, so extrusion length and sail space are reduced, and the system has to be assembled at the cold-heading machine. ** The upper eye terminal must be of the MNY type.

Furlex is available with Dyform wire; Furlex Hydraulic information is available separately.

Dimensions (mm)

Forestay Ø DH DW DD CB E F ID W2 D2 clevis pin Forestay adjustment Ø Extension link H Halyard sheave box Art. No.
6 120 94 186 60 330 540 24 11 10 60 90 505-006-10
7 120 94 186 60 330 540 24 12.5 12 60 90 505-006-10
8 120 94 186 60 330 540 31 15.5 14 60 130 505-012-10
8 147 113 216 80 400 550 31 15.5 14 80 130 505-012-10
10 147 113 216 80 400 550 34 16 16 80 130 505-012-10
12 200 140 250 95 535 620 40 21 19 100 190 505-012-10
14 200 140 250 95 535 620 50 23 22 100 190 505-012-10
16 200 140 250 95 535 620 50 26 22 100 – 505-038-01
Furlex Luff groove internal Ø DLG (mm) Luff groove width WLG (mm)
200S 6.0 3.0
300S 7.5 3.0
400S 8.0 3.0
500S 9.2 3.0

The two 8 mm rows are the 200S (DH 120) and 300S (DH 147). Max sail space = FL − (E+F); the extension link raises the lower unit above the deck, e.g. to clear a bow anchor.
