Selden Furlex 20S, 30S & 40S — Selection Guide

The Smallest Furlex Furlers

  • All structural parts stainless steel; drum and cover in glass fibre reinforced polyamide composite.
  • Double stainless ball bearings in the drum spread the radial load and reduce friction.
  • The line exit fairlead of the cover can be turned to several positions for the right furling-line angle.
  • Optional top swivel guide separates the jib from the forestay so the forestay is not twisted with the luff.
  • The 30S and 40S top swivel is tapered for narrow forestay angles; all top swivels have stainless ball bearings to stop the halyard twisting.
  • The luff wire is fitted to the drum. There is no luff extrusion, so these models are not suitable for reefing.

Technical Specifications

Furlex 20S Furlex 30S Furlex 40S
Dimensioned for forestay Ø (mm)* 3 4 4
Max service load, forestay (kg) 500 900 900
Max service load, halyard swivel (kg) – 300 300
Max recommended LP (mm) 2500 2500 3000
Furling line Ø (mm) 2,5 4 5

* Forestay wire is not included. Max LP applies with the standard furling line.

Kits and Separate Parts

Art. No. Kit Contents

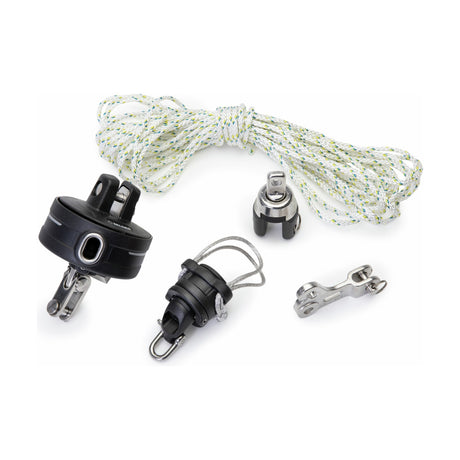

539-490-11 Furlex 30S complete kit Top swivel, halyard swivel, drum, tack fitting, furling line View kit →

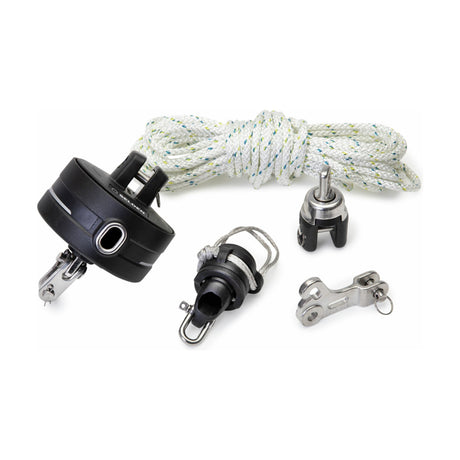

539-470-11 Furlex 40S complete kit Top swivel, halyard swivel, drum, tack fitting, furling line View kit →

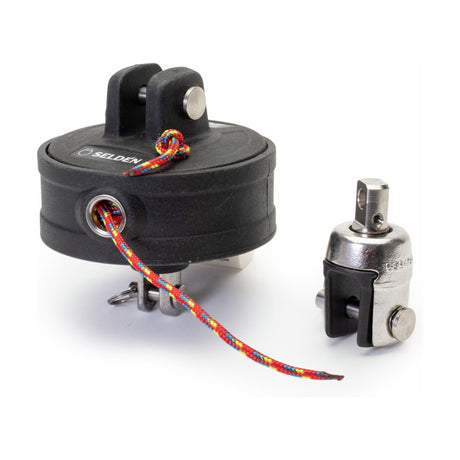

539-455-12 Furlex 20S basic kit Top swivel, drum, furling line View kit →

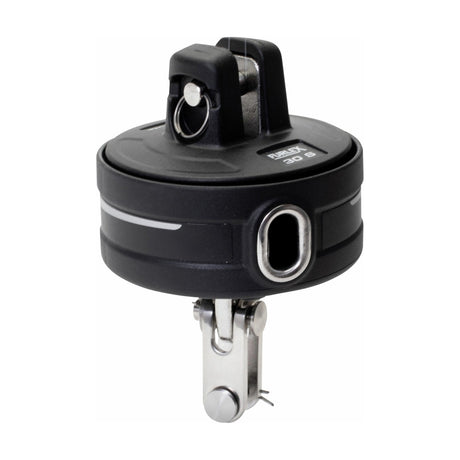

539-490-10 Furlex 30S basic kit Top swivel, drum, furling line View kit →

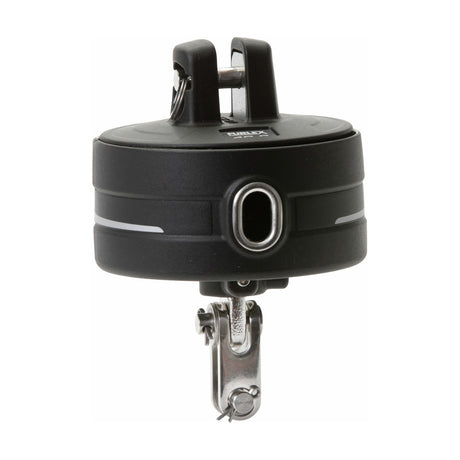

539-470-10 Furlex 40S basic kit Top swivel, drum, furling line View kit →
Art. No. Part Fits

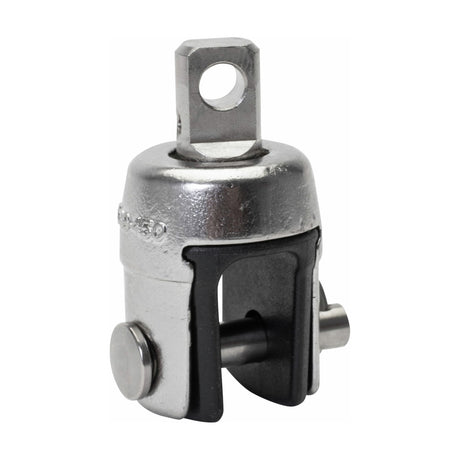

539-450-01R Top swivel Furlex 20S View part →

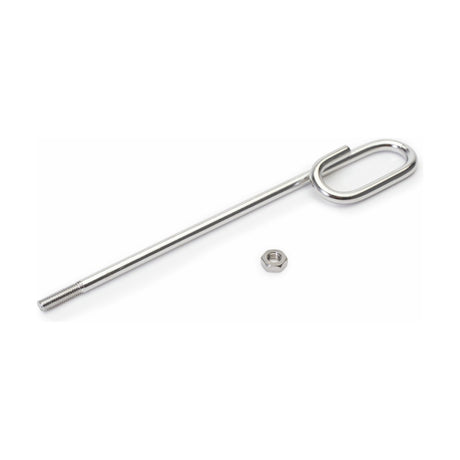

539-460-01R Top swivel guide Furlex 20S View part →

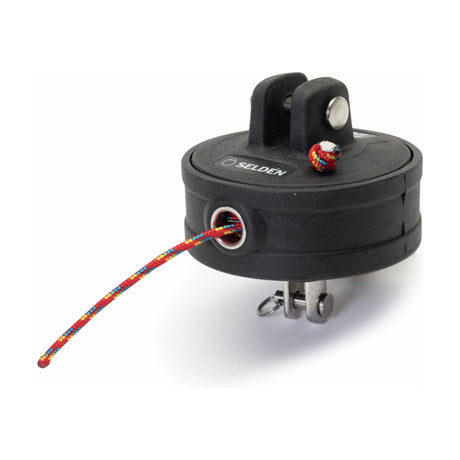

539-455-03R Drum Furlex 20S View part →

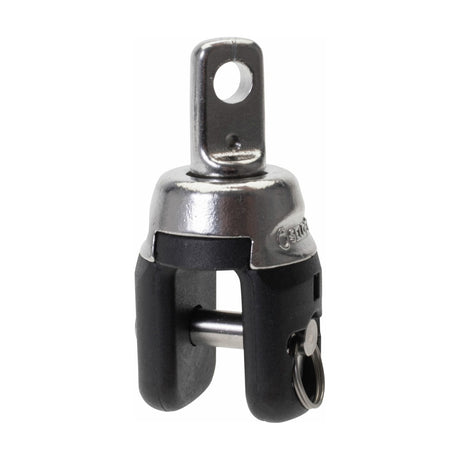

539-480-01R Top swivel Furlex 30S and 40S View part →

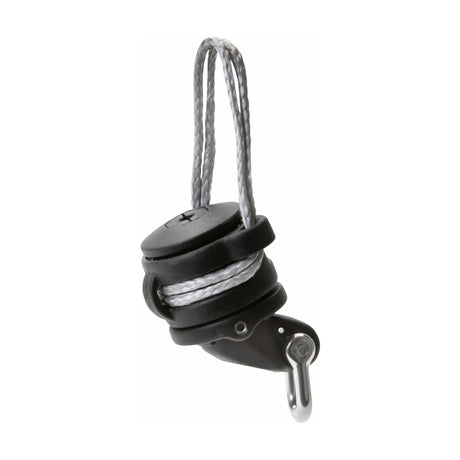

539-487-01R Halyard swivel Furlex 30S and 40S View part →

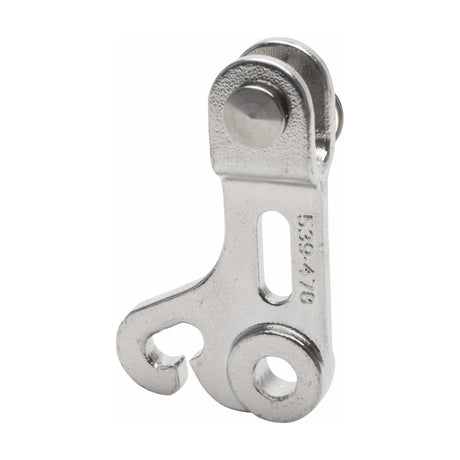

539-478-01R Tack fitting Furlex 30S and 40S View part →
539-490-01R Drum Furlex 30S View part →
539-470-01R Drum Furlex 40S View part →

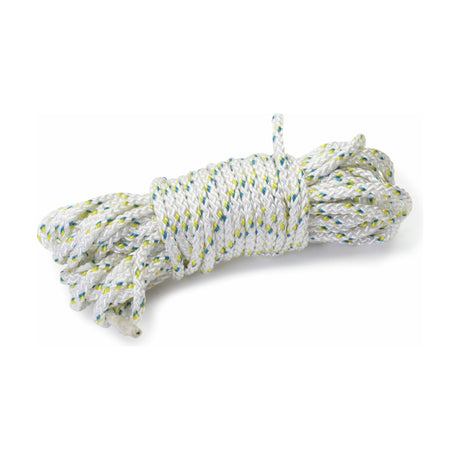

614-414-01R Furling line (10 mtr) Furlex 30S View part →

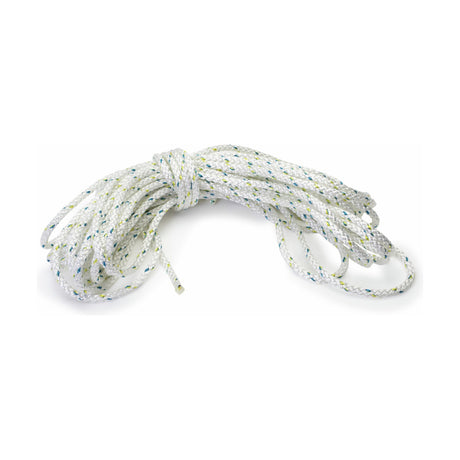

614-416-01R Furling line (11 mtr) Furlex 40S View part →

Furlex 20S furling line: 614-259 × 5 mtr. The 20S has no halyard swivel or tack fitting in the parts list.

Measurements (mm), 597-131-E

Measurement Code Furlex 20S Furlex 30S Furlex 40S
Top swivel height TS 35 52 52
Top swivel diameter TSD Ø 26 Ø 39 Ø 39
Top swivel pin TSP Ø 6 Ø 8 Ø 8
Top swivel fork TSF 10 14 14
Upper hole dia HD Ø 5,5 Ø 8,5 Ø 8,5
Top swivel guide TSG 100 100 100
Halyard swivel height HSH – 90 90
Halyard swivel deduction HSD – 180 180
Tack fitting height TF – 55 55
Tack fitting fork width FW – 8 8
Tack fitting fork pin TFP – Ø 8 Ø 8
Tack fitting hole TFH – Ø 8,5 Ø 8,5
Cut back CB – 20 20
Tack deduction TD – 10 10
Lower swivel height LS 60 106 117
Toggle height TH – 28 28
Toggle pin TP Ø 5 Ø 8 Ø 8
Toggle fork width TFW 5,5 9 9
Drum diameter D Ø 70 Ø 85 Ø 100
Drum height DH 27 49 49
Drum fork width DFW 9 10 10
Drum fork pin DFP 6 8 8
Max recommended LP with standard furling line 2500 2500 3000

– = not given for the 20S. Pin diameter (P) in 597-130-E: 5,8 / 8 / 8 mm.
