Selden Furlex 500S — Selection Guide

Furlex 500S

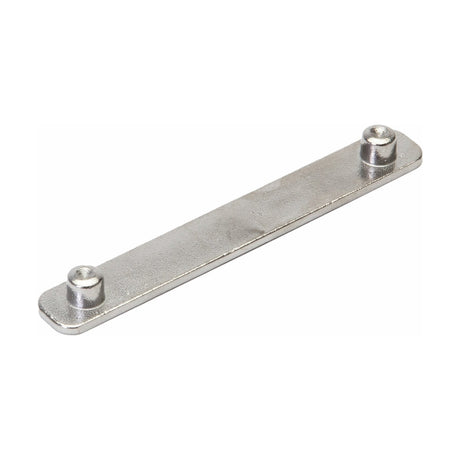

  • Centred, insulated forestay and fully insulated joining sleeves.

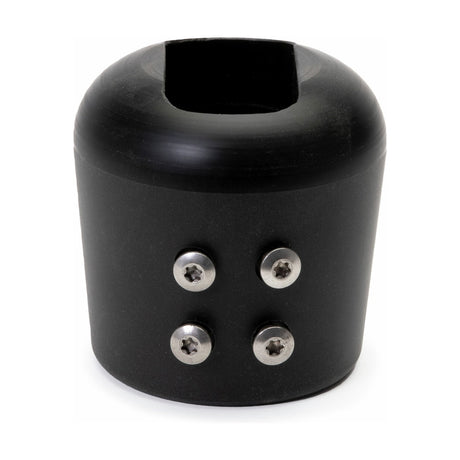

  • Patented load-distributor; lightweight halyard swivel.
  • Marine stainless sail feeder with composite connector.

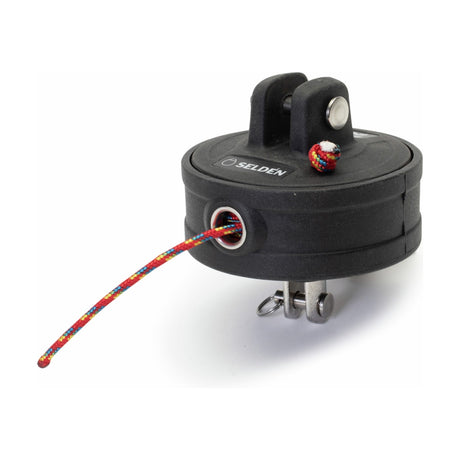

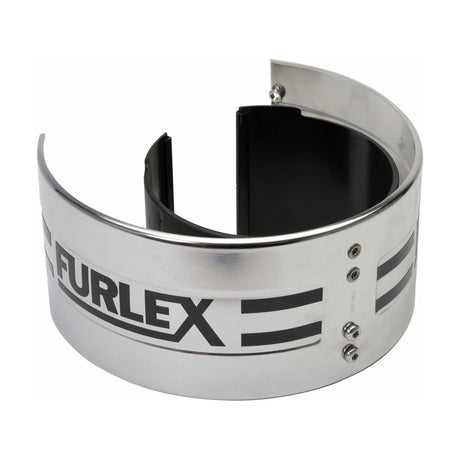

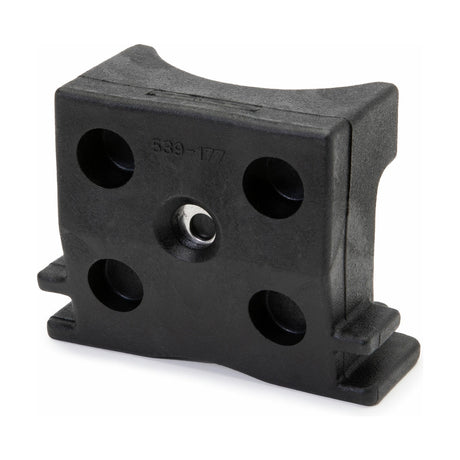

  • Tack swivel with a free-turn; twin grooves and split drum.

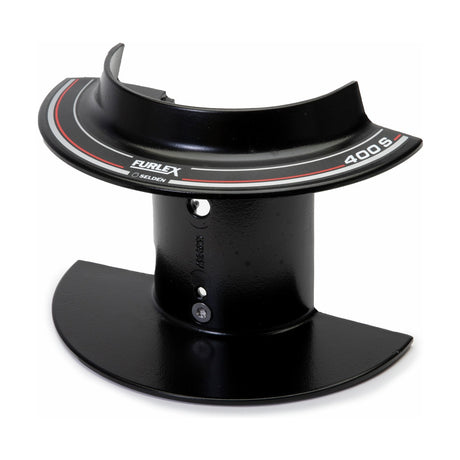

  • Line-guide system centres the furling line on the drum.
  • Optional fully integral rigging screw, adjusting through 100 mm.

Art. Numbers and Sizing

Forestay Ø (mm) Max forestay length (m) Art. No. standard version Art. No. incl. rigging screw
16 23.0 060-046-56 060-046-66

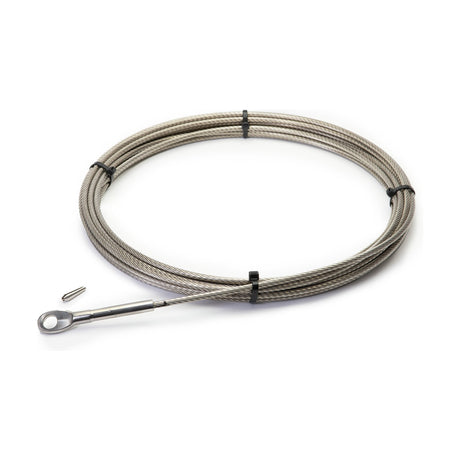

16 27.8 060-046-57 060-046-67
Forestay Ø (mm) Rod Ø (mm) Navtec OYS* (Riggarna) BSI Max RM at 30°, masthead (kNm) Max RM, fractional (kNm) Approx. displ., masthead (t) Approx. displ., fractional (t)
16 -40 (12.7) X X X 230 250 38 40
16 -48 (14.3) X X X

* The upper eye terminal must be of the MNY type. Furlex is available with Dyform wire; Furlex Hydraulic information is available separately.

Dimensions (mm)

Forestay Ø DH DW DD CB E F ID W2 D2 clevis pin Forestay adjustment Ø Extension link H Halyard sheave box Art. No.
16 200 140 250 95 535 620 50 26 22 100 – 505-038-01

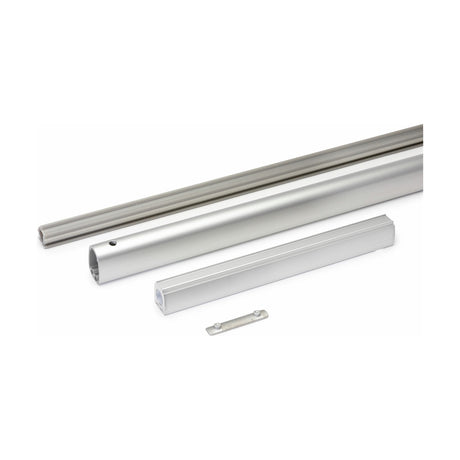

Luff groove internal Ø DLG (mm) Luff groove width WLG (mm)
9.2 3.0

Max sail space = FL − (E+F), where FL is the forestay length. The extension link raises the lower unit above the deck, e.g. to clear a bow anchor.

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
