DESCRIPTION
DESCRIPTION

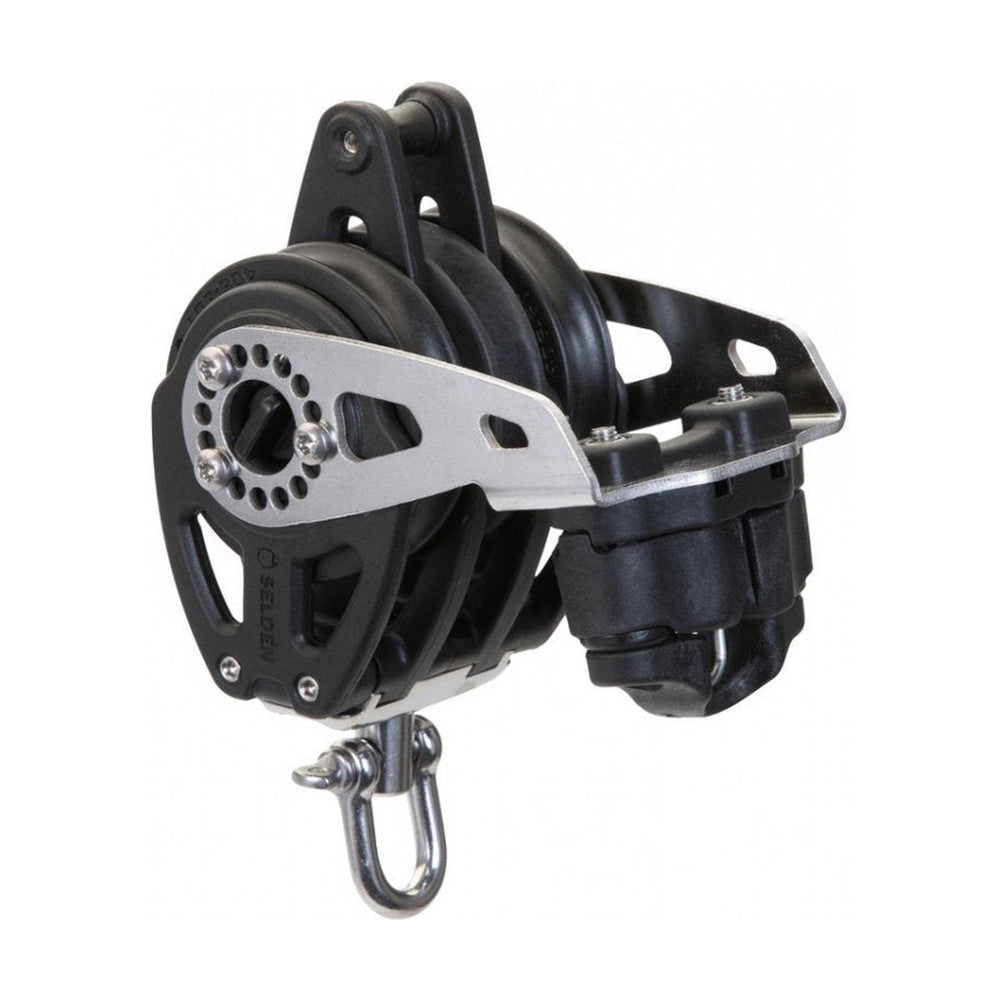

The Triple Becket Cam R60 manual ratchet blocks is designed for dynamic applications on dinghies and keelboats and features a ø60 mm composite sheave. A swivel lock, a plastic washer which is placed between block body and shackle, is included for fixed 0° or 90° shackle position. Cam cleat arm in stainless steel and the cleat itself is size 38 with a top-guide The block is designed with lightweight Delrin ball bearings and a switch on each side to select ratchet function or a free spinning sheave
FEATURES
FEATURES
- When the ratchet is activated it locks the sheave in one direction and allows the sailor to relax a bit without cleating the line.
- Safe working Load: 720 kg Breaking Load: 1440 kg Max line size: 10 mm.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Safe Working Load | 1,587.33 lb | 720 kg |
| Breaking Load | 3,174.65 lb | 1,440 kg |
| Max Line | 0.39 in | 10 mm |
| Weight | 1.10 lb. | 499.00 g. |
| Max Line Size | 0.39 in. | 10.00 mm. |
