DESCRIPTION
DESCRIPTION

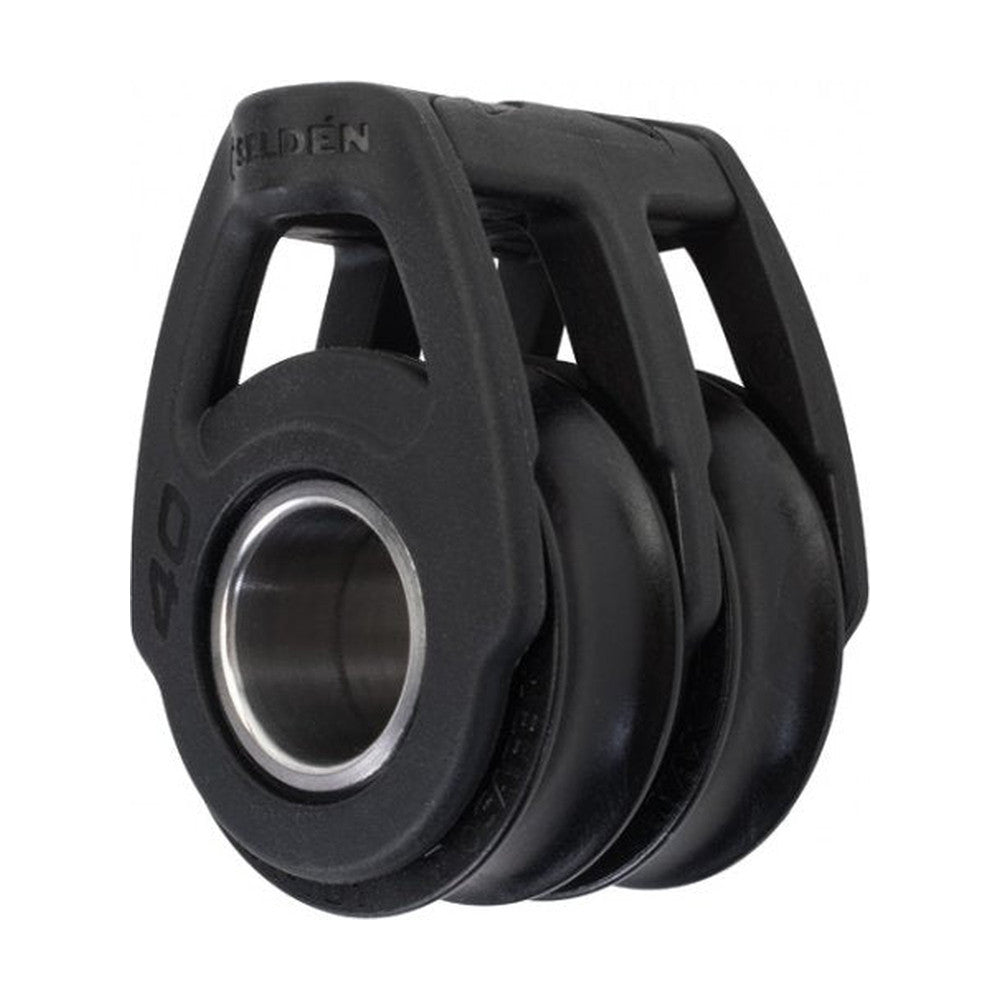

The S40 Double Soft Attachment Block features two 40 mm sheaves, designed for high-performance rigging under dynamic loads. Stainless steel ball bearings ensure smooth, friction-free operation, while the soft attachment system allows for secure and flexible rigging Ideal for trim lines on smaller boats in racing conditions when a strong, tight, silent and flexible attachment is desired
FEATURES
FEATURES
- Safe working Load: 250 kg Breaking Load: 500 kg Max line size: 10 mm.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Safe Working Load | 551.15 lb | 250 kg |
| Breaking Load | 1,102.31 lb | 500 kg |
| Max Line | 0.39 in | 10 mm |
| Weight | 3.10 oz. | 88.00 g. |
| Max Line Size | 0.39 in. | 10.00 mm. |
