SELECTION GUIDE

The Selden System 15 traveller range for performance dinghies and small keelboats: cars, 15 mm tracks and accessories with weights, loads and dimensions.

DocumentSelden System 15 Selection Guide
FormatPDF · 2 pages · 1.5 MB
LanguageEnglish
Selden System 15 — Selection Guide

System 15 Travellers

  • Designed for performance dinghies and small keelboats; ultra low friction ball bearing cars.
  • Ultra low profile 15 mm track, supplied in 1000 mm and 600 mm lengths plus a 300 mm pin stop version for jib cars. The 441-105 end stop conceals the control line stopper knot.
  • Cars are machined from solid marine grade aluminium. Mainsheet cars take optional control line and mainsheet blocks; the mainsheet block has a swivel for direct connection to the shackle on the car.
  • The tie on car weighs 40 g and lets control lines and mainsheet blocks be tied directly to the car.
  • Pin stop jib car: nylon runners for a close fit on the track, so the cleat moves very little vertically and uncleating is easier. Cleat angle adjustable in stages through a total of 50 degrees; optional front fairlead; car adjustable in 19 mm increments for leech tension.

Cars

Art. no. Description Weight (g) Safe working load (kg) Breaking load (kg) Length (mm) Width (mm)
441-101-01 Main car 84 120 400 112 42.5 View part →
441-101-02 Main car with block 109 120 400 112 42.5 View part →
441-101-03 Main car with toggle, 1:1 trav 60 120 400 68 42.5 View part →
441-101-04 Main car with toggle, misc 50 120 400 57 42.5 View part →
441-102-01 Tie on car 40 120 400 56.6 42.5 View part →
441-103-01 Jib car, pin stop 165 120 240 68 7.5 (as printed) View part →
441-105 End cap, with becket 5 – – 27 24 Ask us to source it →
441-106 End stop for pin stop track 23 – – 20 20 Ask us to source it →

Tracks

Art. no. Description Weight (g) Length (mm) Width (mm) Bolt
441-001-01 Track 122 600 15 M4 View part →
441-001-02 Track 205 1000 15 M4 View part →
441-002-01 Pin stop track 59 300 15 M5 Ask us to source it →

Accessories

Art. no. Description Weight (g) Safe working load (kg) Breaking load (kg) Length (mm) Width (mm)
402-101-20R Control block BBB20 17 150 300 46 20 View part →
403-101-16R Main car block BBB30 26 200 400 56 30 View part →

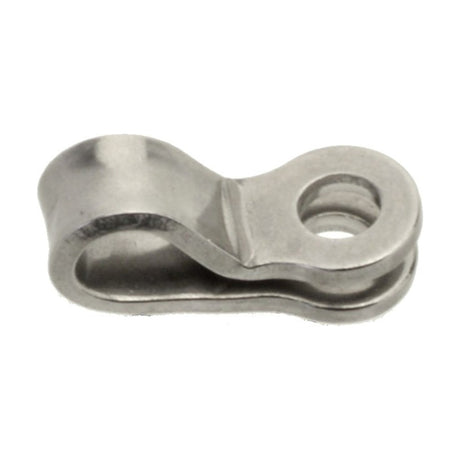

508-387R 1-P eye 5 – – 24 10 View part →
441-113R Toggle, main car 5 200 400 25 7 Ask us to source it →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
