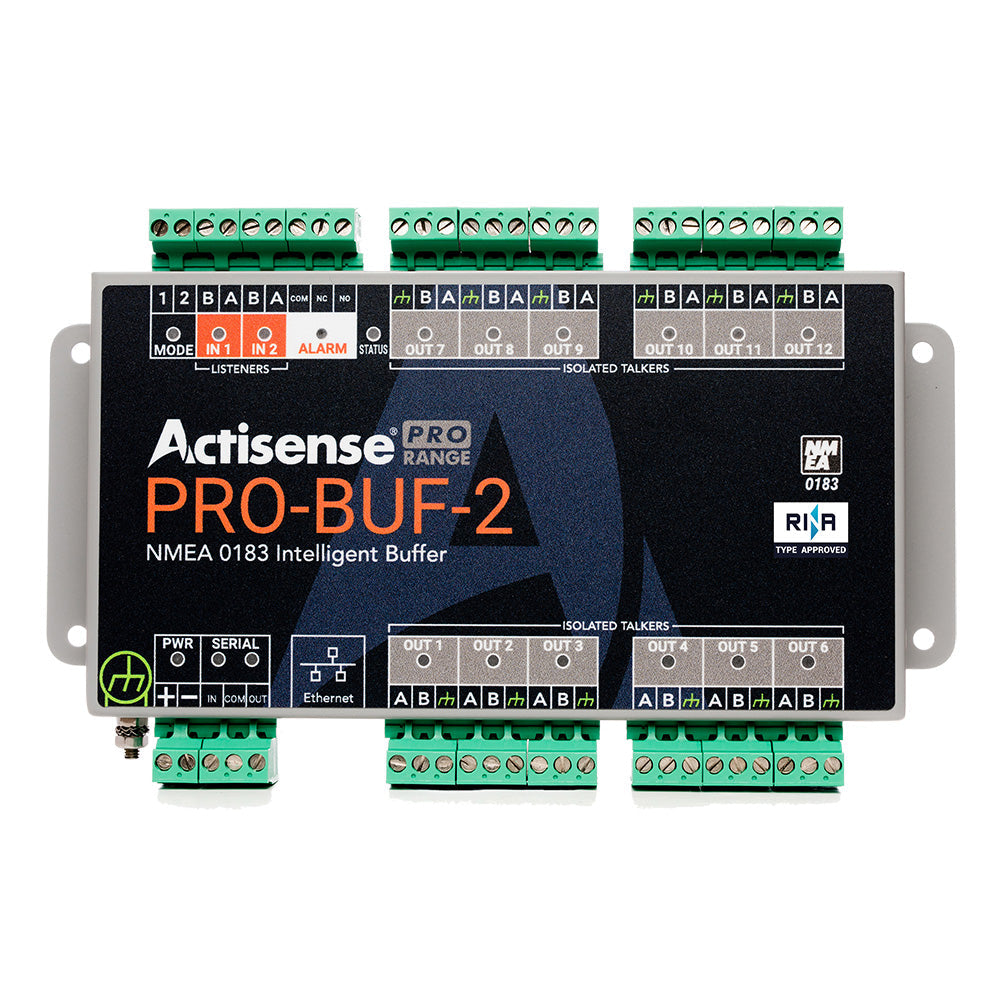

Actisense PRO NMEA 0183 Buffer - 2 OPTO Inputs, 12 ISO-Drive Outputs, Serial Port, Ethernet Port, Pluggable Screw Terminal

SKU: ACT-PRO-BUF-2  |  Manuf. Code: PRO-BUF-2
$880.50 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Actisense PRO NMEA 0183 Buffer provides an advanced solution for distributing NMEA 0183 data across multiple outputs and sensors. Featuring 12 ISO-Drive outputs and integrated Ethernet support, this professional-grade interface keeps your navigation data flowing cleanly to every instrument on board, giving serious boaters a modular and well-organised way to manage an NMEA 0183 network.

FEATURES

  • Buffers and distributes NMEA 0183 data.
  • Two opto-isolated inputs.
  • Twelve ISO-Drive isolated outputs.
  • Features serial and Ethernet ports.
  • Pluggable screw terminals for easy installation.

TECHNICAL INFORMATION

DescriptionImperialMetric
Supply Voltage9 - 30 V DC9 - 30 V DC
Current Consumption50 mA50 mA
NMEA 0183 Inputs22
NMEA 0183 Outputs22
Baud Rates4800 - 115200 bps4800 - 115200 bps
IsolationGalvanicGalvanic
Operating Temp.-4 to 131 °F-20 to 55 °C
Dimensions (L x W x H)4 1/2 x 3 1/2 x 1 1/4 in115.0 x 89.0 x 32.0 mm
Weight0.3 lb0.1 kg
